Remove/install brake hose at rear axle - AR42.10-P-0023MCU
MODEL 451.3/4

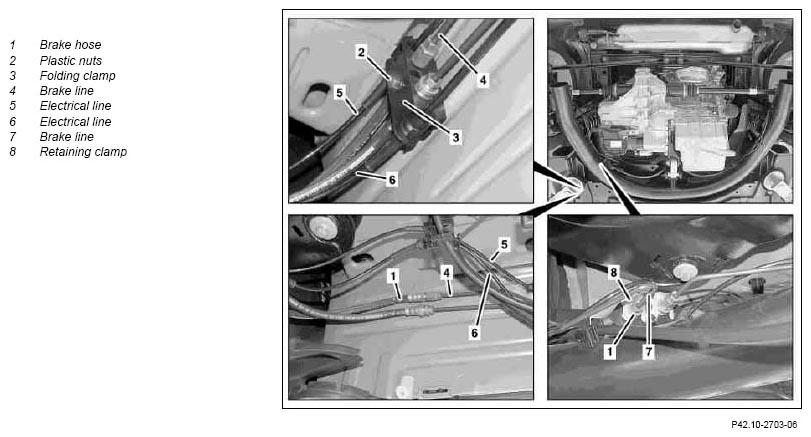

Shown on left rear brake hose (1)
| Remove/install | |||
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle using the vehicle lift and remove underfloor paneling | Rechargeable drill / screwdriver GOTIS://G_58.0_01.1 |
|
| 2 | Remove bulkhead wall | On model 451.431 | AR61.25-P-6600MCU |
| 3 | Unscrew plastic nut (2), open folding clamp (3) using a suitable tool and take off | ||
| 4 | Hang up electrical lines (5, 6) to one side | ||
| 5 | Check bolted connections of brake lines (4, 7) with brake hose (1) for color coding | AR42.10-P-0013-05MCC | |
| 6 | Loosen bolted connections of the brake lines (4, 7) with the brake hose (1) and separate | ||
| *BA42.10-P-1002-04E | |||
| *450589099904 | |||
| 7 | Detach retaining clamps (8) and remove brake hose (1) | ||
| 8 | Replace brake line (4) or brake line (7) | Only if brake line (4) or brake line (7) with red color coding has been detached. | |
| Remove/install brake line from the ESP hydraulic unit to the rear axle | AR42.10-P-0035MCU | ||
| Remove/install left rear brake line | AR42.10-P-0036MCU | ||
| Remove/install right rear brake line | AR42.10-P-0037MCU | ||
| 9 | Install in the reverse order | ||
| 10 | Bleed brake system | AR42.10-P-0010MCU |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 451.3/4 | |
|---|---|---|---|
| BA42.10-P-1002-04E | Brake pipe to brake hose | Nm | 16 |
