Remove/install brake carrier - AR42.10-P-0500MCU

MODEL 451.3/4

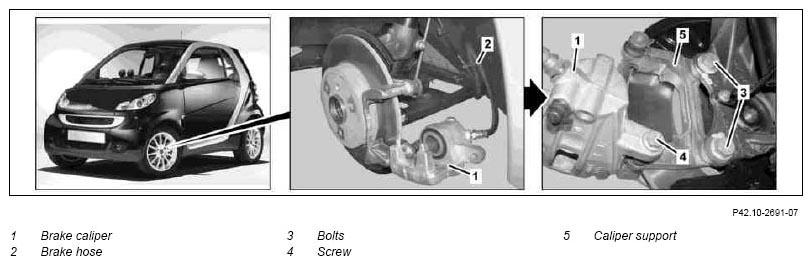

Fig 1: Identifying Brake Caliper, Hose, Bolts, Caliper Support And Screw

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Notes on repairs to brake system		AH42.00-P-0003-01A
1	Remove brake pads on the left or right brake caliper (1)		AR42.10-P-1600MCU
2	Unscrew bolt (4)		*BA42.10-P-1001-10A
3	Remove brake caliper (1) and place with attached brake hose (2) to one side
4	Unscrew bolts (3) and remove brake caliper support (5)		*BA42.10-P-1003-10A
5	Install in the reverse order

FRONT AXLE FLOATING CALIPER

Number	Designation		Model 451.3/4
BA42.10-P-1001-10A	Bolt, brake caliper to brake caliper support	Nm	30
BA42.10-P-1003-10A	Bolt, brake caliper support to steering knuckle	Nm	115
