Parking brake cable removal and installation - AR42.20-P-0545MCU
MODEL 451.3/4
| Remove/install | |||
| 1 | Remove left rear and right rear brake shoes | AR42.10-P-0165MCU | |

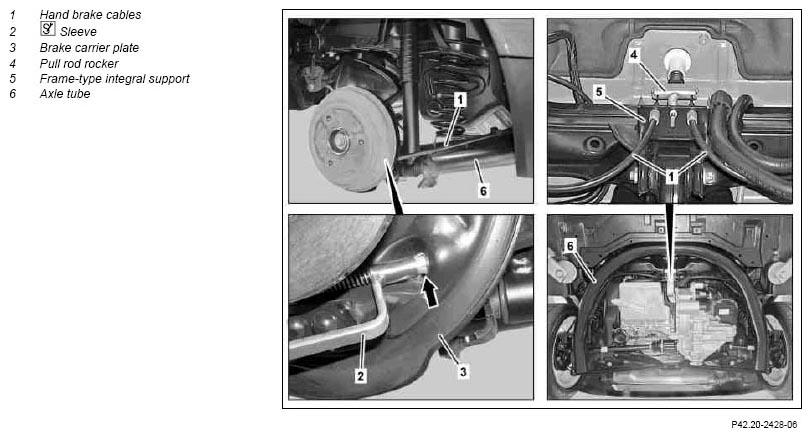

| 2 | Slide the sleeve (2) over the hand brake cable (1), compress lock (arrow) on hand brake cable (1) by means of a sleeve (2) and guide hand brake cable (1) out of the brake anchor plate (3) | *451589001400 | |
| 3 | Unhook hand brake cable (1) at the rocker of the pull rod (4), compress lock on hand brake cable (1) by means of sleeve (2) and guide hand brake cable (1) out of the support on the frame-type integral support (5) | *451589001400 | |
| 4 | Unclip hand brake cable (1) from the brackets on the axle tube (6) and remove | ||
| 5 | Install in the reverse order |
