Brake system - inspect fluid level - AP42.10-P-4210MCC

MODEL 451.3/4

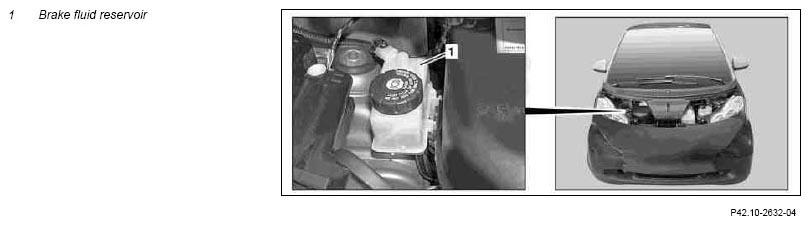

Fig 1: Locating Brake Fluid Reservoir

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Risk of poisoning  caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes.	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities.	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
1	Remove maintenance flap
2	Check fluid level	The brake fluid level must be between the MAX and MIN marking embossed in the brake fluid reservoir (1). If the fluid level is too low, establish and eliminate the cause. As a separate repair order. If no cause can be found, correct brake fluid level.
	General brake fluid	Sheet 330.1	BB00.40-P-0330-01A
	Brake fluids (DOT 4 plus)	Sheet 331.0	BB00.40-P-0331-00A
3	Install maintenance flap
