Electronic stability program (ESP), location of electronic components - GF42.45-P-0001-03MCU

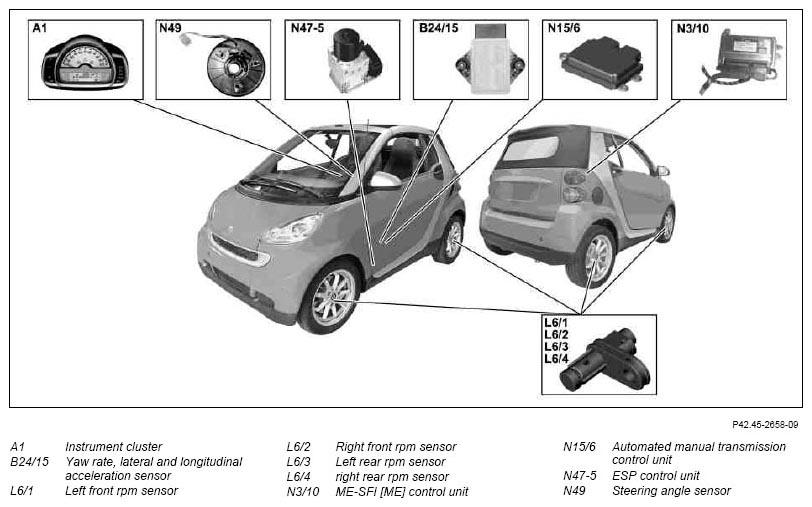

Fig 1: Locating Electronic Stability Program (ESP) Electronic Components
G07275982Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
