Retrofit additional instruments - AZ54.30-P-0001MCC

MODEL 451.3/4 up to 30.8.10

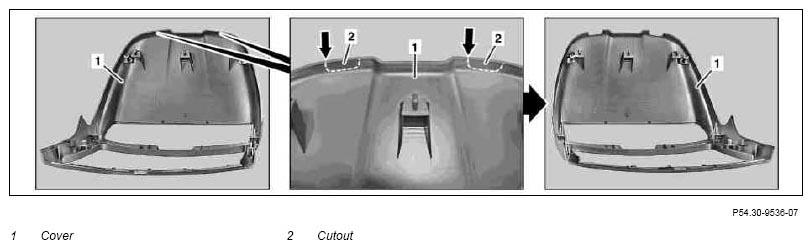

Fig 1: Identifying Cover And Cutouts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

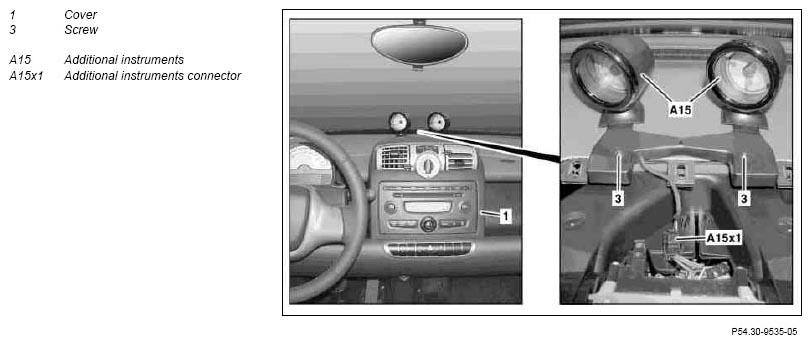

Fig 2: Identifying Additional Instruments Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
1	Remove cover (1) on center console		AR68.20-P-2350MCC
	Install
2	Make the cutouts (2) to match the perforation (arrows) on the cover (1)
3	Position additional instruments (A15) on dashboard upper section and fasten in place using the bolts (3)
4	Connect additional instruments connector (A15x1)	The plug for the additional instrument connector (A15x1) is located in the attachment between the air vents. If the plug for the additional instrument connector (A15x1) has not been clipped into the attachment, then the wiring harness is to be tied back and down in a loop.
5	Fit cover (1) onto center console		AR68.20-P-2350MCC
6	Set clock of additional instruments (A15)
7	Add special equipment to the vehicle data card and to the online vehicle data card	Code (V31) Cockpit clock and tachometer package to be added.
