Remove/install cover on center console - AR68.20-P-2350MCC

MODEL 451.3/4 up to 30.8.10

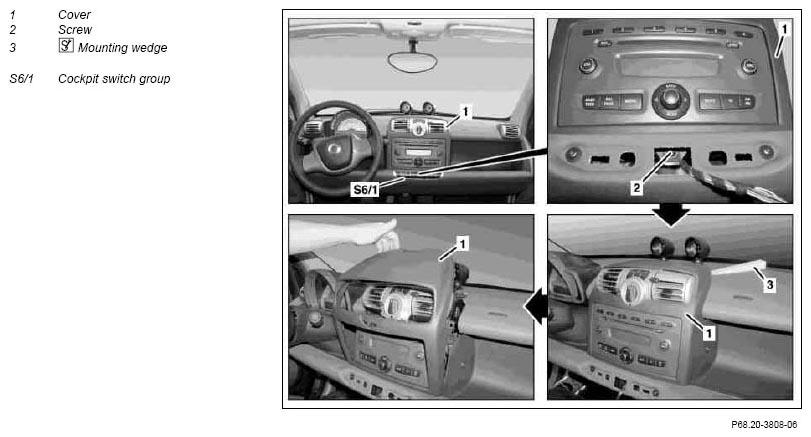

Fig 1: Removing/Installing Center Console Cover

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove cockpit switch group (S6/1)		AR54.25-P-1000MCC
2	Unscrew bolt (2)
3	Loosen cover (1) in upper area using assembly wedge (3), as shown	Carefully detach cover (1), otherwise dashboard upper section can be damaged.
		Mounting wedge	*110589035900
4	Lift cover (1) in rear area and remove upward
5	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
