Removal [06/2015 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [06/2015 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [06/2015 - ]

  3. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 3

  4. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. REMOVE NO. 1 METER HOOD CLUSTER

    Refer to PROCEDURE - Step 5

  6. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 6

  7. REMOVE COMBINATION METER ASSEMBLY

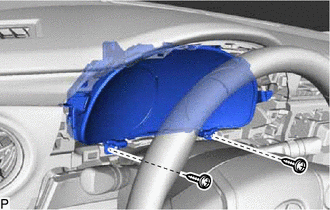

    1. Remove the 2 screws.
      GTY492686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

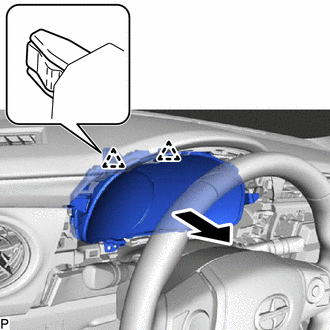

    2. Disengage the 2 clips as shown in the illustration.
      GTY492689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect each connector and remove the combination meter assembly.
