Removal [06/2015 - ]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [06/2015 - ]

    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [06/2015 - ]

  3. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

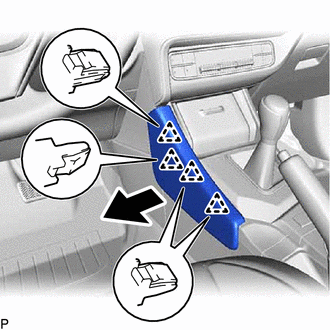

    1. Disengage the 4 clips and remove the lower No. 2 instrument panel finish panel as shown in the illustration.
      GTY483317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

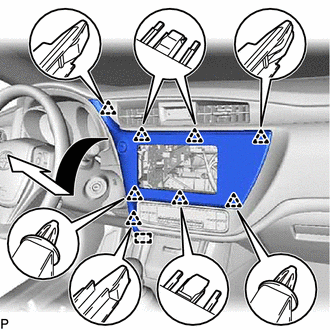

    1. Disengage the 8 clips and guide as shown in the illustration.
      GTY484416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector to remove the lower center instrument cluster finish panel sub-assembly.
  5. REMOVE NO. 1 METER HOOD CLUSTER

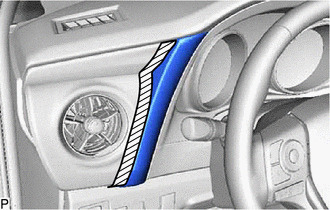

    1. Apply protective tape to the area shown in the illustration.
      GTY491749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

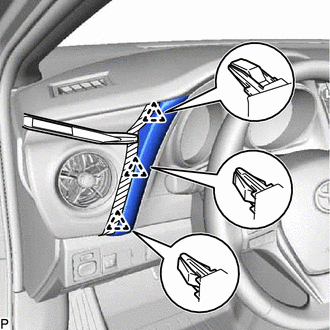

    2. Using a moulding remover, disengage the 3 clips and remove the No. 1 meter hood cluster as shown in the illustration.
      GTY490939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

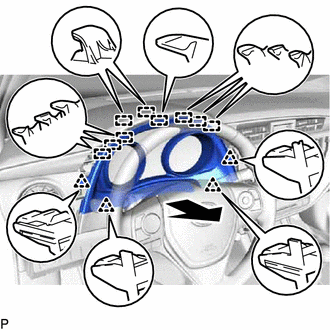

    1. Disengage the 4 clips and 9 guides and remove the instrument cluster finish panel assembly as shown in the illustration.
      GTY493378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE COMBINATION METER ASSEMBLY

    Refer to PROCEDURE - Step 7

  8. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Disconnect the front door opening trim weatherstrip LH.
  9. REMOVE FRONT PILLAR GARNISH LH

    See step  11

  10. REMOVE INSTRUMENT SIDE PANEL LH
    1. GTY486084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

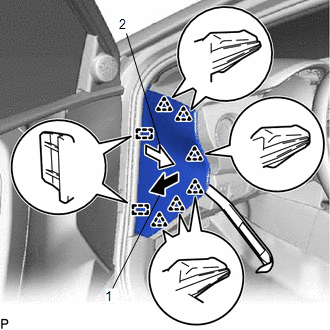

      Using a moulding remover, disengage the 6 clips in the direction indicated by the arrow (1).

    2. Pull the instrument side panel LH in the direction indicated by the arrow (2) to disengage the 2 guides and remove the instrument side panel LH.
  11. REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    GTY483316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

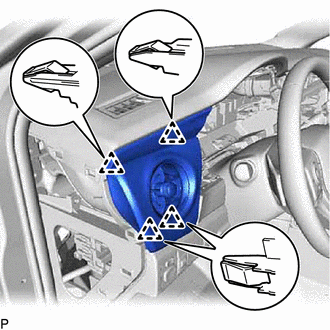

    1. Disengage the 4 clips and remove the upper instrument cluster finish panel sub-assembly.
  12. REMOVE LOWER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

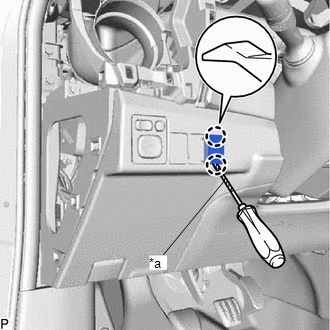

    1. Using a screwdriver, disengage the 2 claws and remove the cover.

      HINT:

      Tape the screwdriver tip before use.

      GTY485669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

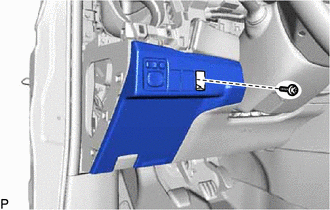

    2. Remove the screw <B>.
      GTY484402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

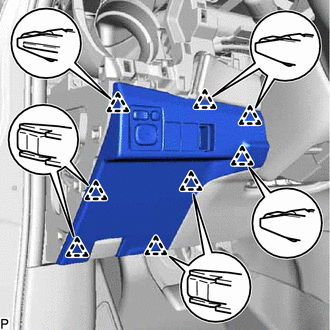

    3. Disengage the 8 clips.
      GTY484408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect each connector and remove the lower instrument cluster finish panel assembly.
  13. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Disconnect the front door opening trim weatherstrip RH.
  14. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  15. REMOVE INSTRUMENT SIDE PANEL RH

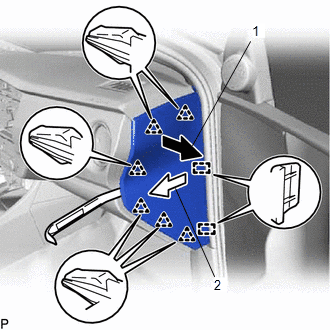

    1. Using a moulding remover, disengage the 6 clips in the direction indicated by the arrow (1).
      GTY487579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the instrument side panel RH in the direction indicated by the arrow (2) to disengage the 2 guides and remove the instrument side panel RH.
  16. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

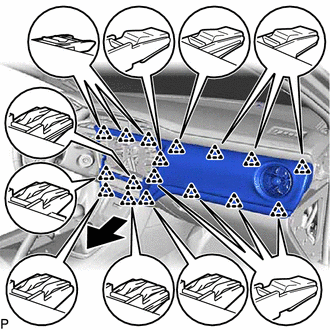

    1. Disengage the 17 clips and remove the instrument panel finish panel sub-assembly as shown in the illustration.
      GTY484395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL

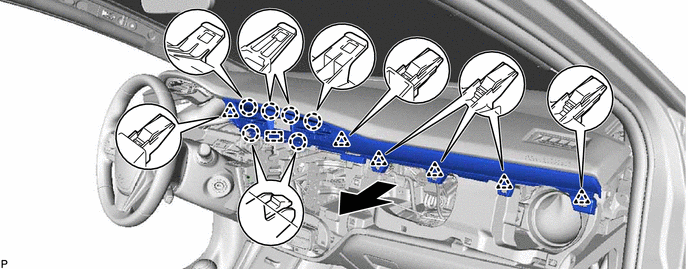

    1. Disengage the 6 claws, 6 clips and guide to remove the center instrument cluster finish panel as shown in the illustration.
      GTY493379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. DISCONNECT NO. 2 INSTRUMENT PANEL WIRE

    Refer to PROCEDURE - Step 3

  19. REMOVE UPPER INSTRUMENT PANEL ASSEMBLY

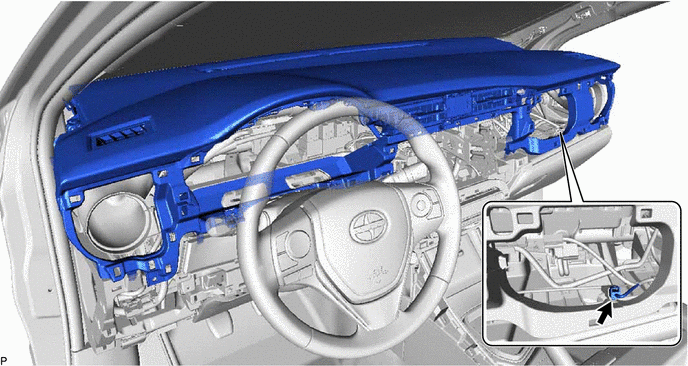

    1. Disconnect the connector.
      GTY484386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

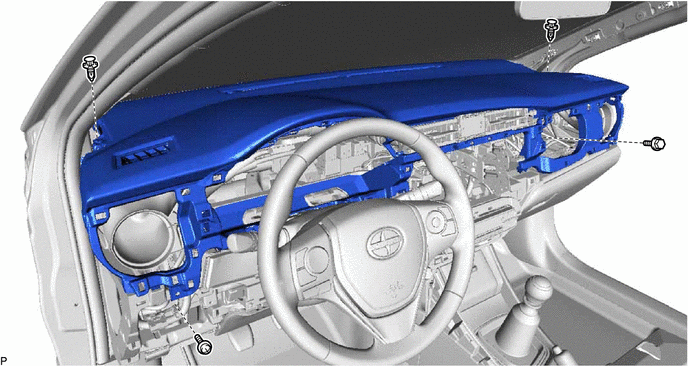

    2. Remove the bolt <A>, screw <B> and 2 clips.
      GTY484387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

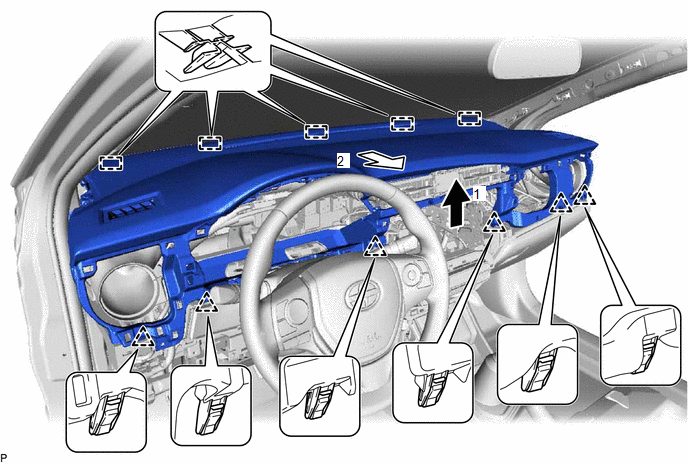

    3. Pull the upper instrument panel assembly in the direction indicated by the arrow (1) to disengage the 6 clips.
      GTY484651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Pull the upper instrument panel assembly in the direction indicated by the arrow (2) to disengage the 5 guides and remove the upper instrument panel assembly.
