Removal [07/2015 - ]: Procedure

  1. REMOVE FRONT CONSOLE
    1. Disconnect the negative battery cable.

      Refer to PROCEDURE - Step 1

    2. Remove the following parts:
      1. Center console tray

        See step  1

      2. Shift bezel

        See step  1

      3. Upper panel

        See step  1

      4. Selector lever knob (ATX)

        Refer to REMOVAL [07/2015 - ]

      5. Shift lever knob (MTX)

        Refer to PROCEDURE - Step 1

      6. Shift panel

        See step  1

      7. Console side panel

        See step  1

      8. Front console box

        See step  1

      9. Disc player

        Refer to PROCEDURE - Step 1

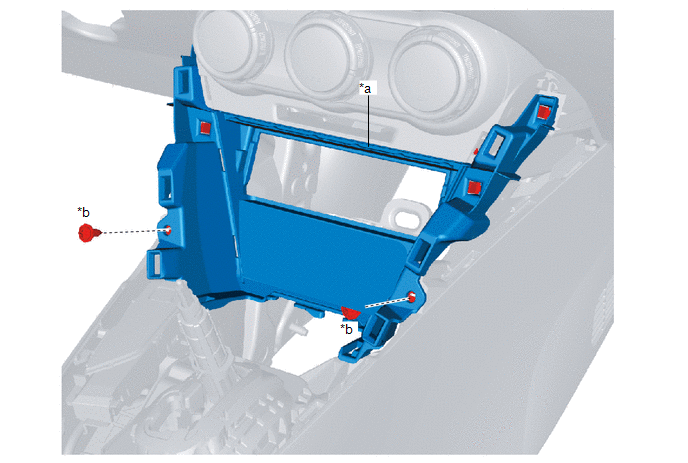

    3. Remove the screws.
      GTY492785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a FRONT CONSOLE *b SCREW

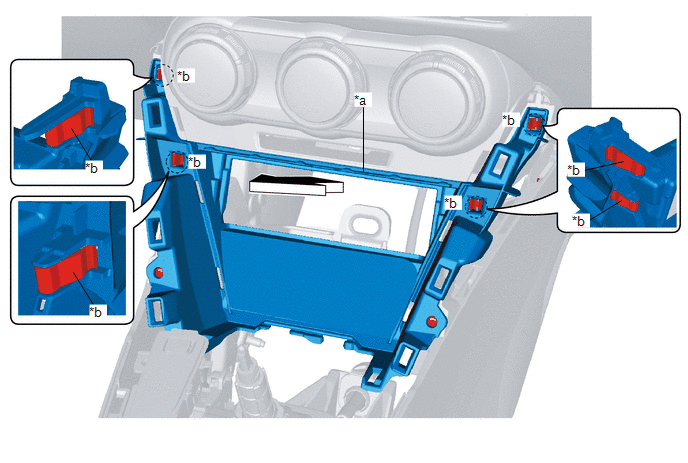

    4. Remove the front console in the direction of arrow shown in the figure while detaching the clips.
      GTY495177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a FRONT CONSOLE *b CLIP
    5. Disconnect the auxiliary jack/USB port/SD card slot hub connector. (With center display)
    6. Disconnect the connector of the auxiliary jack/USB port terminal. (Without center display)
    7. Disconnect the accessory socket connector.
