Removal [07/2015 - ]: Procedure

  1. REMOVE DISC PLAYER
    1. Disconnect the negative battery cable.

      Refer to REMOVAL [07/2015 - ]

    2. Shift the selector lever from the P position to the D position (ATX).

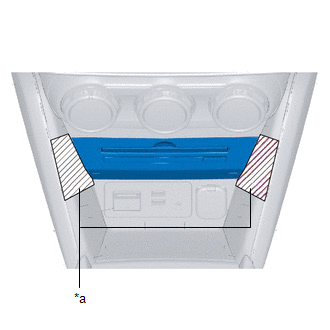

    3. To prevent scratches or damage, affix protective tape to the position shown in the figure of the console side panel.
      GTY486382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a PROTECTIVE TAPE

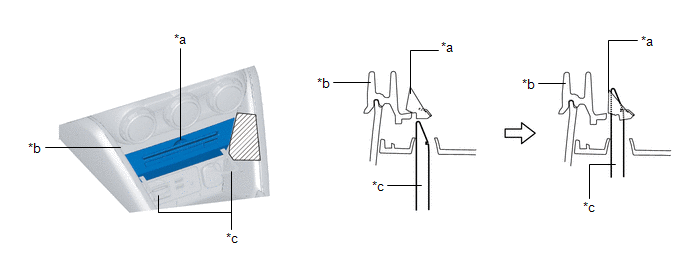

    4. Insert the SSTs (removing tool) into the positions shown in the figure and disengage the disc player from the front console.
      • SST: 49B066803
      GTY487482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a DISC PLAYER *b FRONT CONSOLE
      *c SST - -

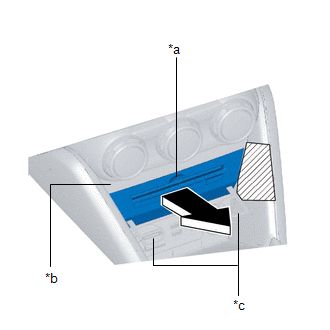

    5. Pull the SSTs (removing tool) in the direction shown in the figure and remove the disc player from the front console.
      GTY484705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a DISC PLAYER
      *b FRONT CONSOLE
      *c SST
      • SST: 49B066803

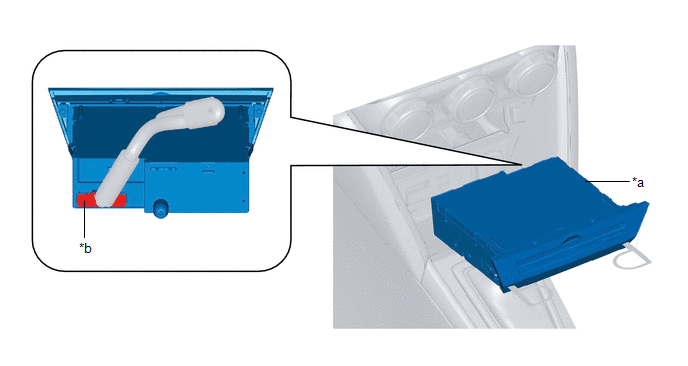

    6. Disconnect the connector.
      GTY484424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a DISC PLAYER *b CONNECTOR
    7. Remove the disc player.
    8. While pulling the SSTs (removing tool) in the direction of arrow (2) shown in the figure, press the disc player spring in the direction of arrow (1) shown in the figure.
      GTY488068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a DISC PLAYER
      *b SPRING
      *c SST
      • SST: 49B066803
