DTC P0AFC-150: EV Battery Pack Sensor Module: Wiring Diagram

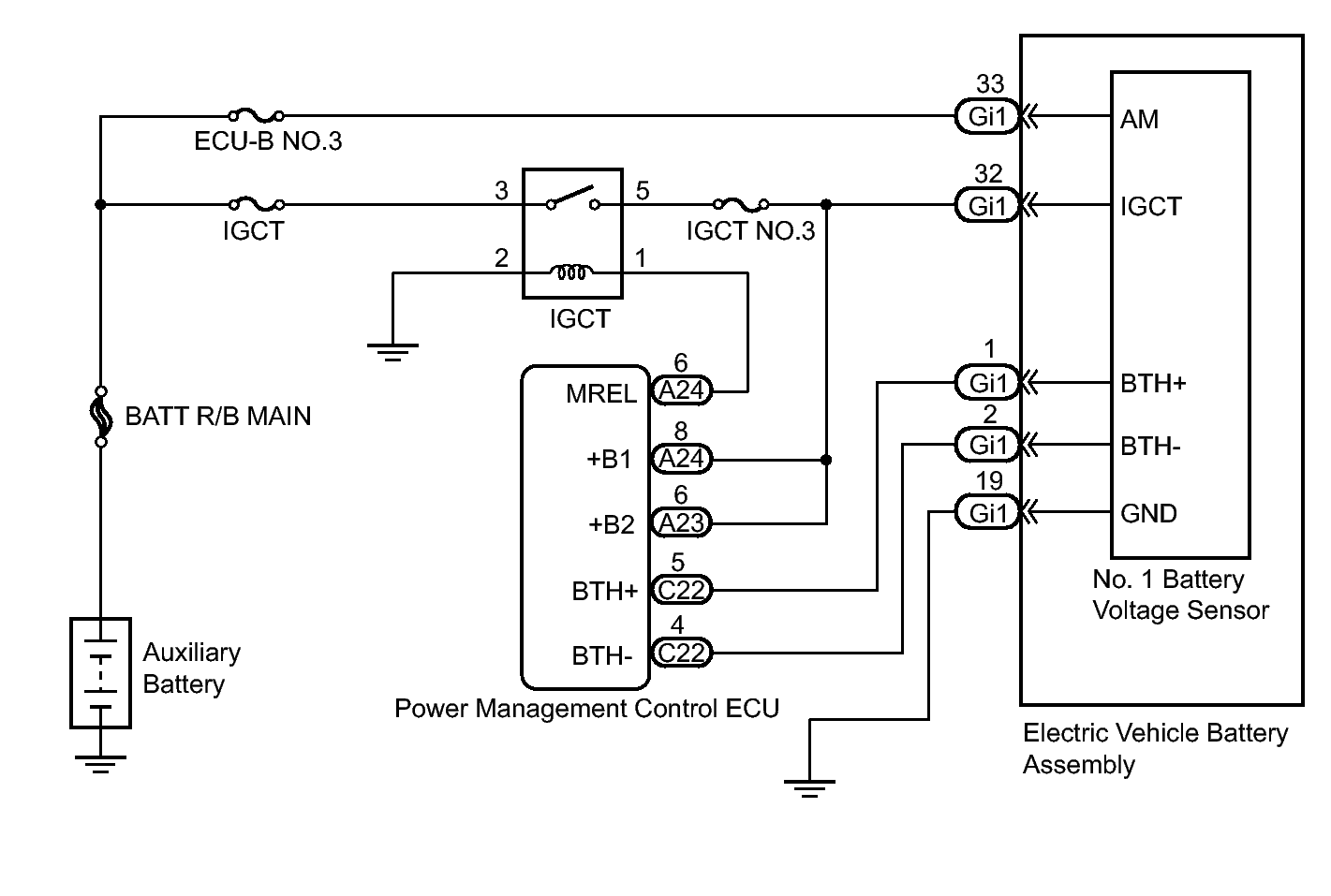

Fig 1: EV Battery Pack Sensor Wiring Diagram

GTY386298

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
