DTC P0AE6-225: EV Battery Precharge Contactor Control Circuit Low: Wiring Diagram

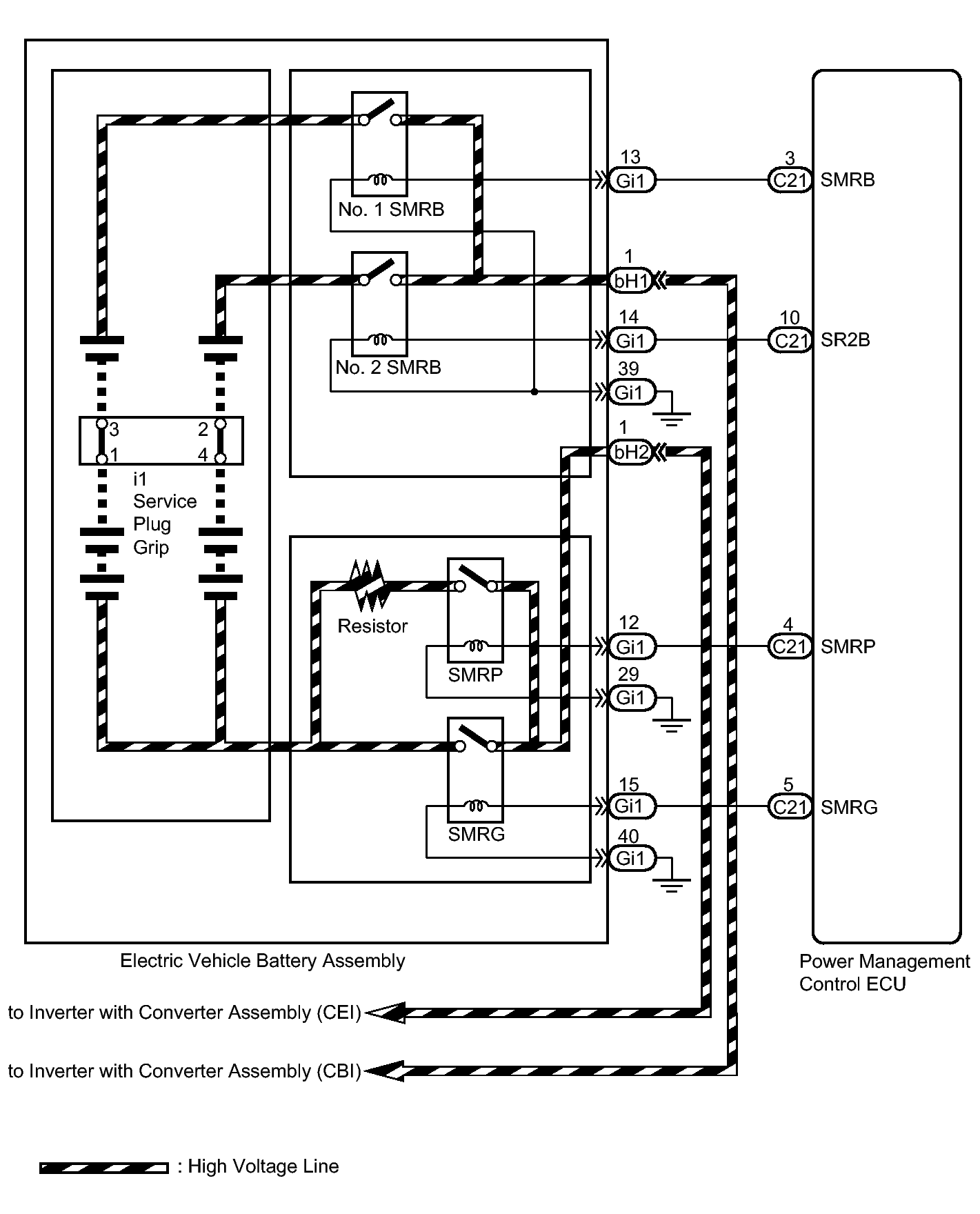

Fig 1: Electric Vehicle Battery Assembly Wiring Diagram
GTY387553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

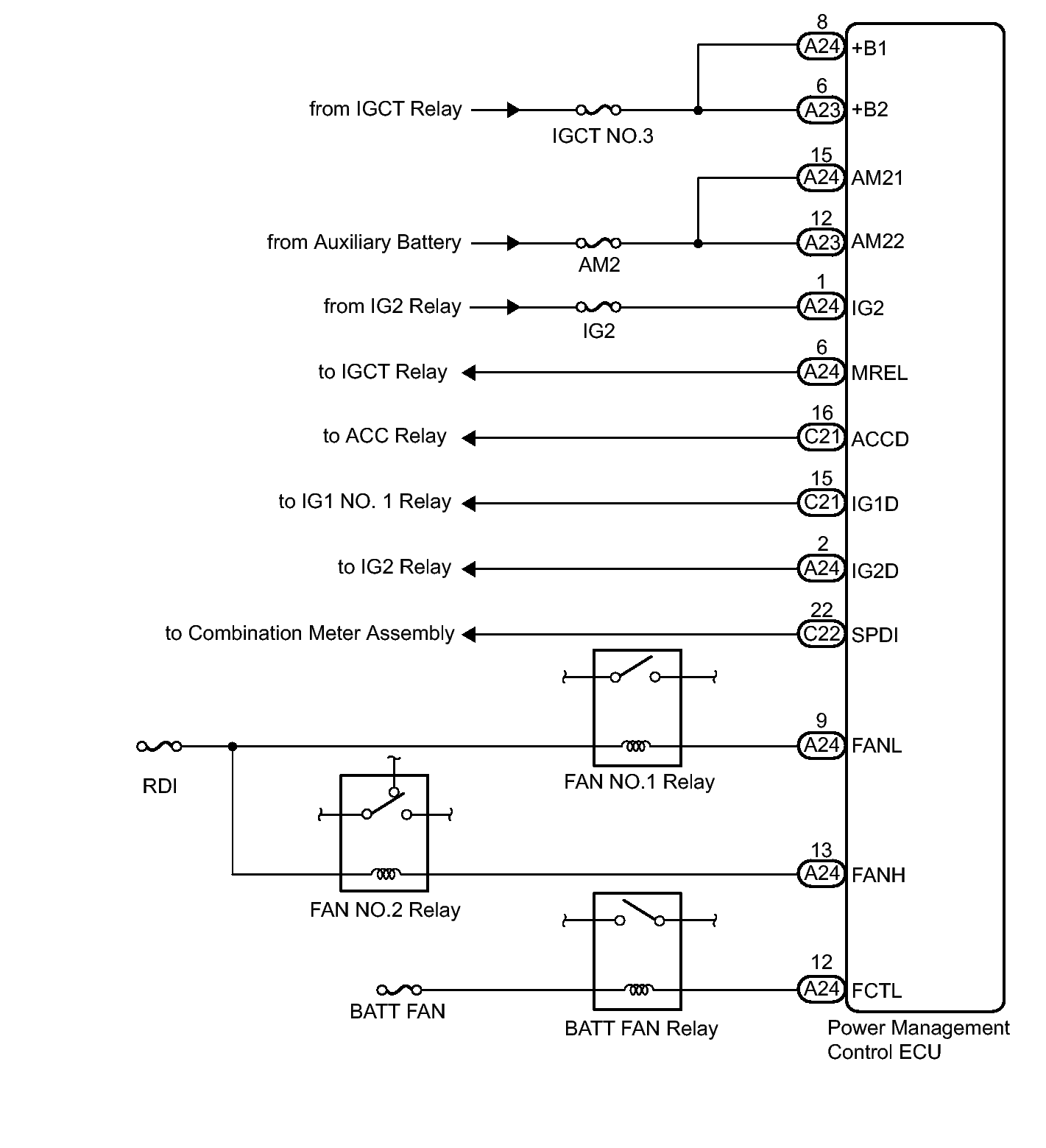

Fig 2: Power Management Control ECU Wiring Diagram
GTY387790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
