DTC P0AC0-817: EV Battery Pack Current Sensor "A" Circuit Range / Performance: Wiring Diagram

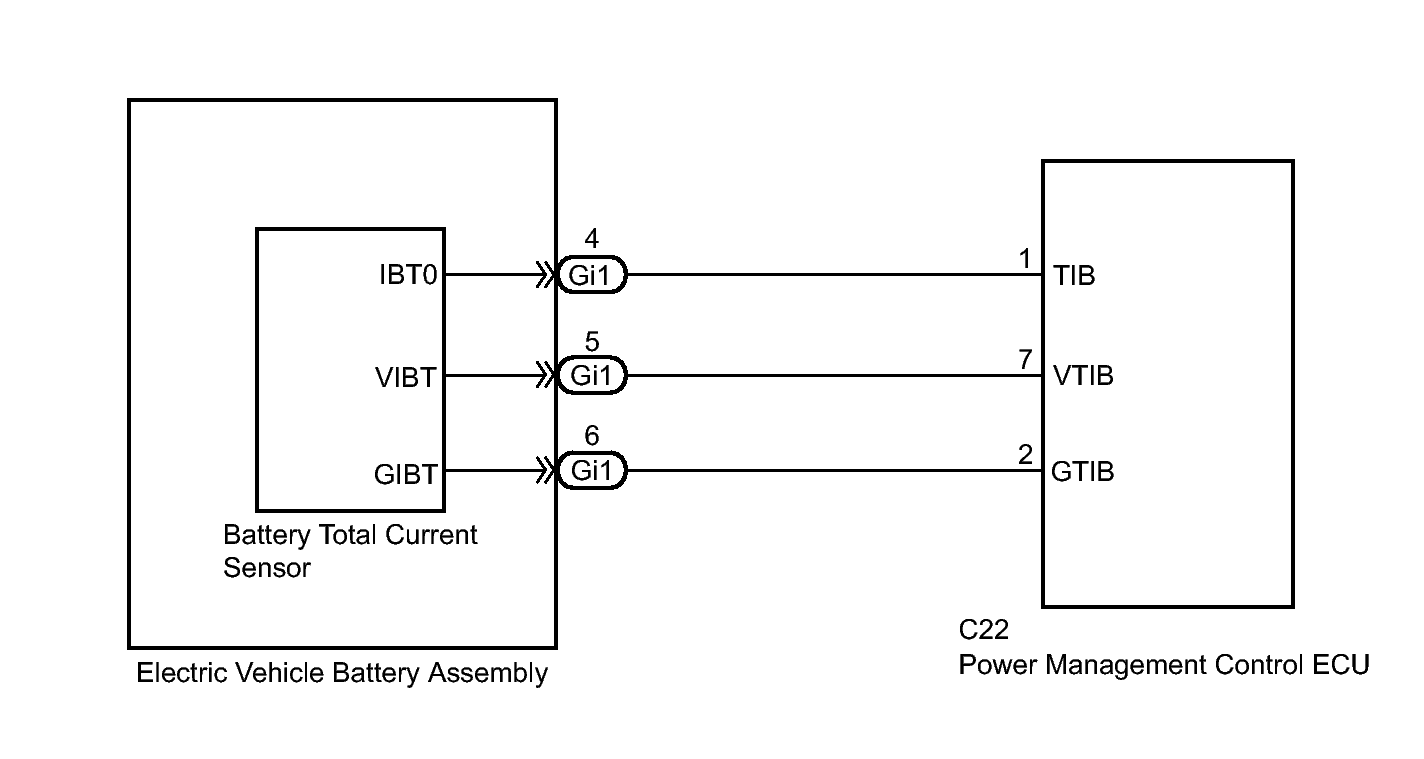

Fig 1: Battery Pack Current Sensor Wiring Diagram
GTY390176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
