DTC P0A94-585: Inverter Performance; DTC P0A94-587: Inverter Performance: Description
Refer to the description for DTC P0A94-127. Refer to DESCRIPTION .
HINT:

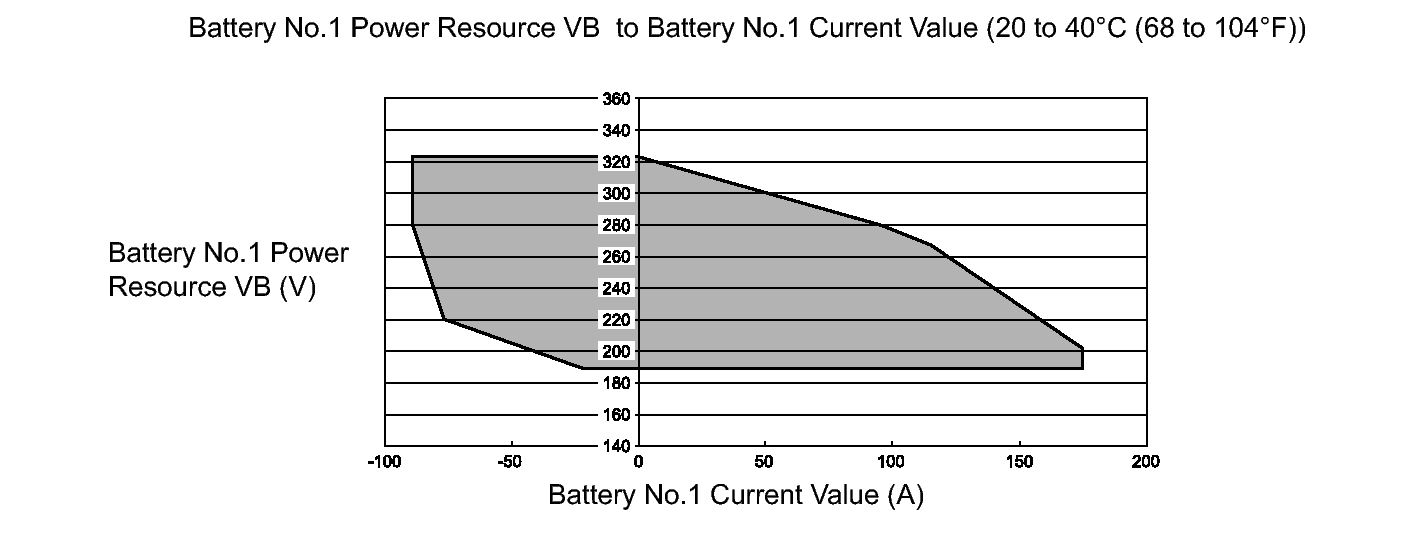

Using the Techstream, check the Data List of Battery No. 1 Power Resource VB and Battery No. 1 Current Value. If these values are not within the below range, there is a battery voltage sensor malfunction.
| DTC No. | INF Code | DTC Detection Condition | Trouble Area |
|---|---|---|---|
| P0A94 | 585 | Inverter voltage (VL) sensor performance problem |
|
| P0A94 | 587 | Voltages from EV battery voltage (VB) sensor and inverter voltage (VL) sensor deviate |
|
