Upper Instrument Panel: Installation: Installation

  1. INSTALL FRONT PASSENGER AIR BAG ASSEMBLY
    Fig 1: Identifying Front Passenger Air Bag Assembly Screws
    GTY165455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Engage the 10 hooks so that the connector side faces the outside of the vehicle, and install the front passenger airbag.
    2. Install the 2 screws.
  2. INSTALL NO. 4 INSTRUMENT PANEL CUSHION
    1. Install the instrument panel cushion as shown in the illustration.
      Fig 2: Identifying No. 4 Instrument Panel Cushion
      GTY160144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 3 INSTRUMENT PANEL CUSHION
    1. Install the instrument panel cushion as shown in the illustration.
      Fig 3: Identifying No. 3 Instrument Panel Cushion
      GTY162954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 2 INSTRUMENT PANEL CUSHION
    1. Install the instrument panel cushion as shown in the illustration.
      Fig 4: Identifying No. 2 Instrument Panel Cushion
      GTY160143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 1 INSTRUMENT PANEL CUSHION
    1. Install the instrument panel cushion as shown in the illustration.
      Fig 5: Identifying No. 1 Instrument Panel Cushion
      GTY159781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 1 INSTRUMENT PANEL BOX
    1. Install the instrument panel box with the 4 <A> screws.
      Fig 6: Identifying No. 1 Instrument Panel Box Screws
      GTY163740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Install the instrument panel register with the 3 <A> screws.
      Fig 7: Identifying Instrument Panel Register Screws
      GTY163888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 2 HEATER TO REGISTER DUCT
    1. Install the heater to register duct with the 3 <A> screws.
      Fig 8: Identifying No. 2 Heater To Register Duct Screws
      GTY164189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL NO. 1 HEATER TO REGISTER DUCT
    1. Install the heater to register duct with the 4 <A> screws.
      Fig 9: Identifying No. 1 Heater To Register Duct Screws
      GTY160142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY
    1. Install the heater to register duct with the 3 <A> screws.
      Fig 10: Identifying No. 2 Heater To Register Duct Sub-Assembly Screws
      GTY162470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the airbag wire harness.
  11. INSTALL DEFROSTER NOZZLE ASSEMBLY
    1. Install the defroster nozzle with 3 <A> screws.
      Fig 11: Identifying Defroster Nozzle Screws
      GTY165456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY
    Fig 12: Identifying Cut Off Portion
    GTY160173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a nipper, cut off both ends of the runner portion shown in the illustration (When installing a new one).
    2. Engage the 5 claws at the front of the instrument panel.

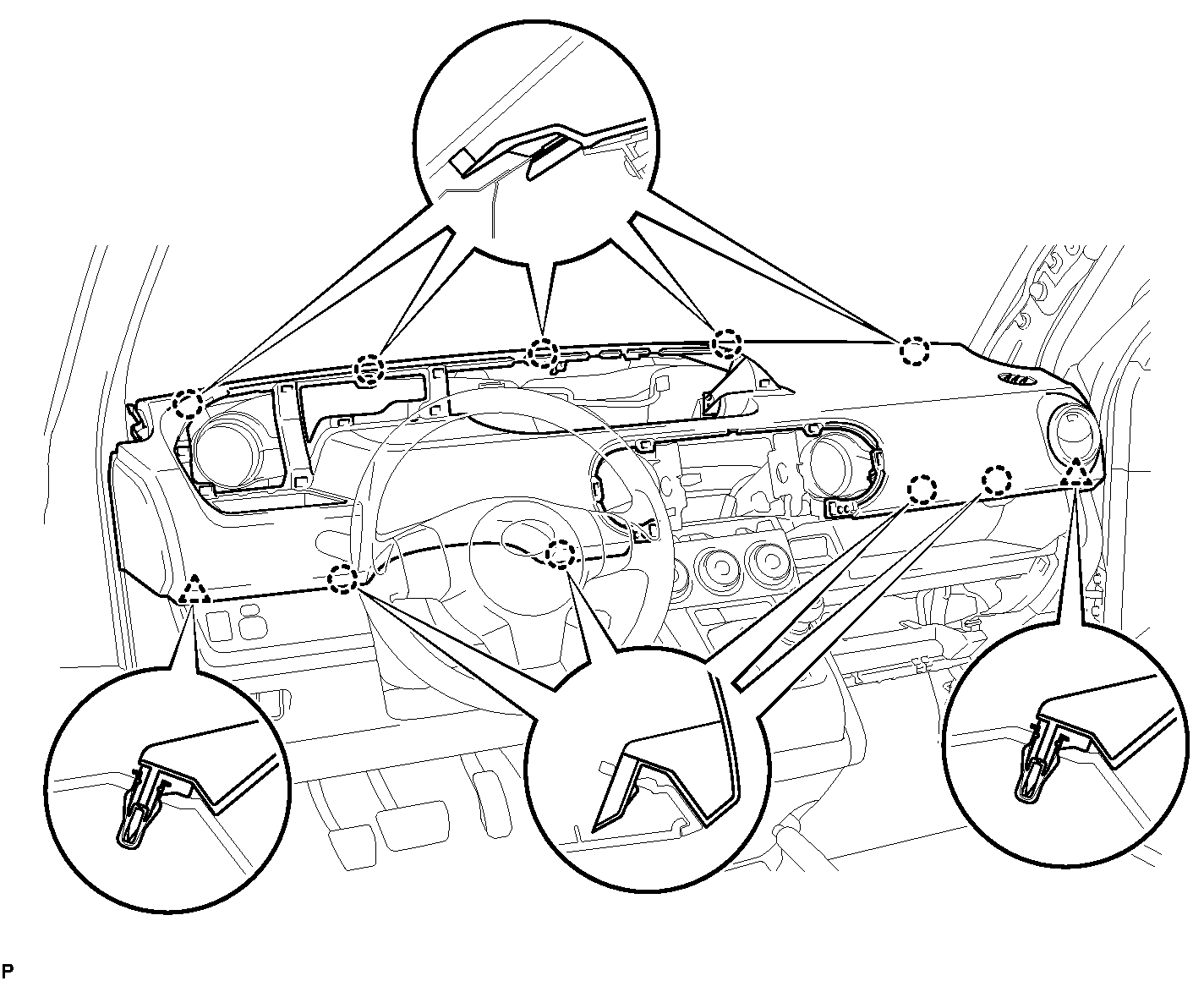

      Fig 13: Identifying Instrument Panel Claws And Clips
      GTY165161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 2 clips and 4 claws at the rear of the upper instrument panel.
    4. Install the upper instrument panel with the 3 <A> screws and <B> bolt.

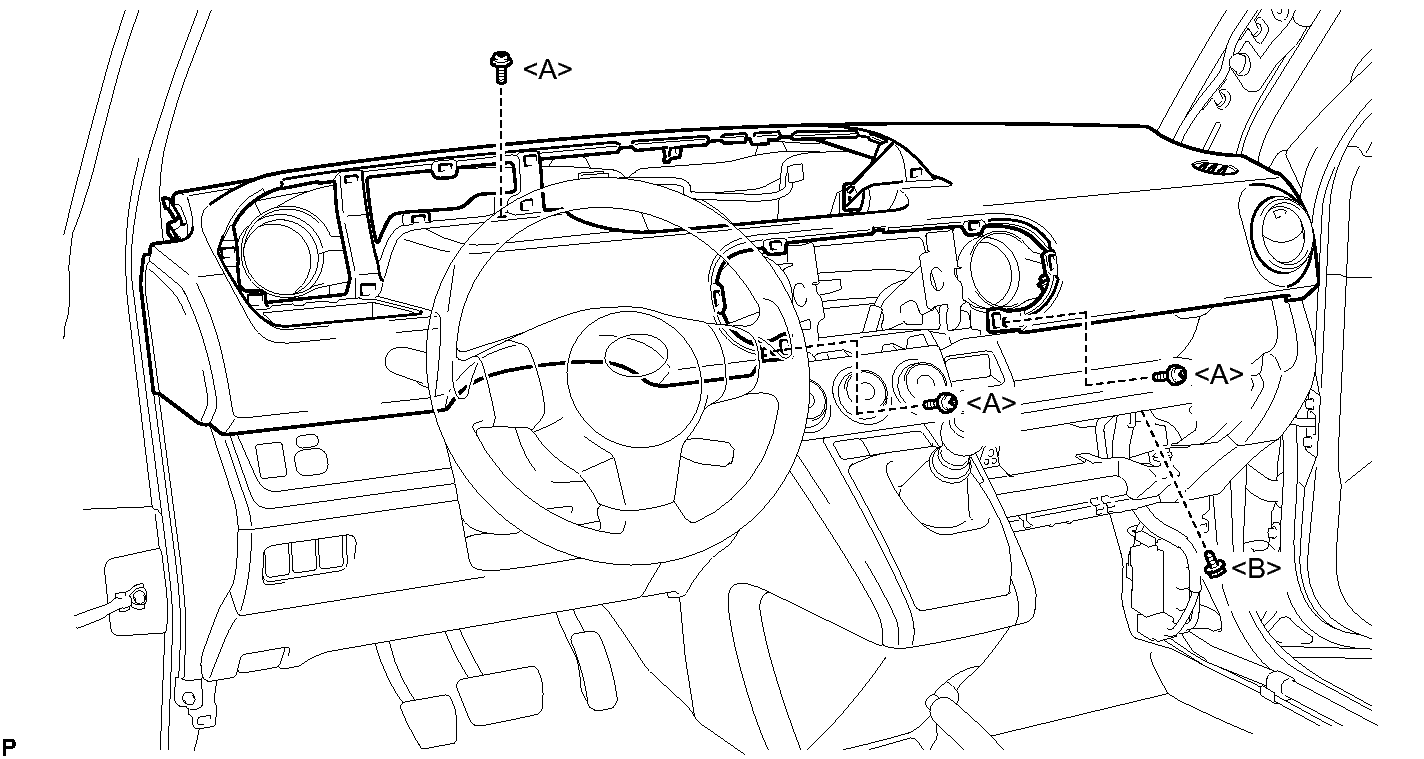

      Fig 14: Identifying Upper Instrument Panel Screws And Bolt
      GTY166648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

      for bolt <B>

    5. Install the airbag connector.
      Fig 15: Identifying Airbag Connector
      GTY164407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect the airbag connector.
  13. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    Fig 16: Identifying Glove Compartment Door Hinges
    GTY165429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Engage the 2 hinges in the horizontal direction to install the glove compartment door.
      NOTE:

      Engage the 2 hinges in the horizontal direction, otherwise, installation failure caused by excessive play around the hinges will result.

    2. While pushing in the sides of the glove compartment door as indicated by the arrows in the illustration, close the door to engage it to the 2 stoppers.
      Fig 17: Identifying Glove Compartment Door Stopper And Claw
      GTY160141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL COMBINATION METER ASSEMBLY  . Refer to INSTALLATION - Step 1
  15. INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY
    Fig 18: Identifying Instrument Panel Register Screws
    GTY160138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the instrument panel register with the 3 <A> screws.
  16. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

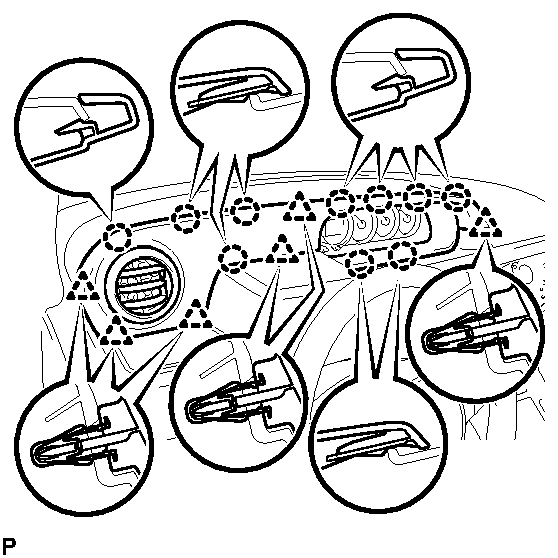

    Fig 19: Identifying Instrument Cluster Finish Panel Clips And Claws
    GTY160137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Engage the 6 clips, 10 claws and install the instrument cluster finish panel.
  17. INSTALL INSTRUMENT CLUSTER FINISH LOWER PANEL
    Fig 20: Identifying Instrument Cluster Finish Lower Panel Clips
    GTY164442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Engage the 2 clips and install the instrument cluster finish lower panel.
  18. INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY
    Fig 21: Identifying No. 4 Instrument Panel Register Assembly Screws
    GTY160140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the instrument panel register with the 2 <A> screws.
  19. INSTALL INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY
    Fig 22: Identifying Instrument Cluster Finish Center Panel Clips And Claws
    GTY160139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Engage the 4 clips, 3 claws and install the instrument cluster finish center panel.
  20. INSTALL FRONT PILLAR GARNISH RH  . Refer to INSTALLATION - Step 24
  21. INSTALL FRONT PILLAR GARNISH LH  . Refer to INSTALLATION - Step 25
  22. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Install the front door opening trim weatherstrip RH.
  23. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Install the front door opening trim weatherstrip LH.
  24. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  25. INSPECT SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM
