Lower Instrument Panel: Installation: Installation
- INSTALL NO. 2 INSTRUMENT PANEL BOX
- Install the instrument panel box with the 8 <A> screws.
- INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Engage the claw and install the glove compartment door stopper.
- INSTALL FRONT PASSENGER SEAT BELT WARNING LIGHT
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Engage the 2 claws and install the front passenger seat belt warning light.
- INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
- Using a nipper, cut off both ends of the runner portion shown in the illustration (When installing a new one).

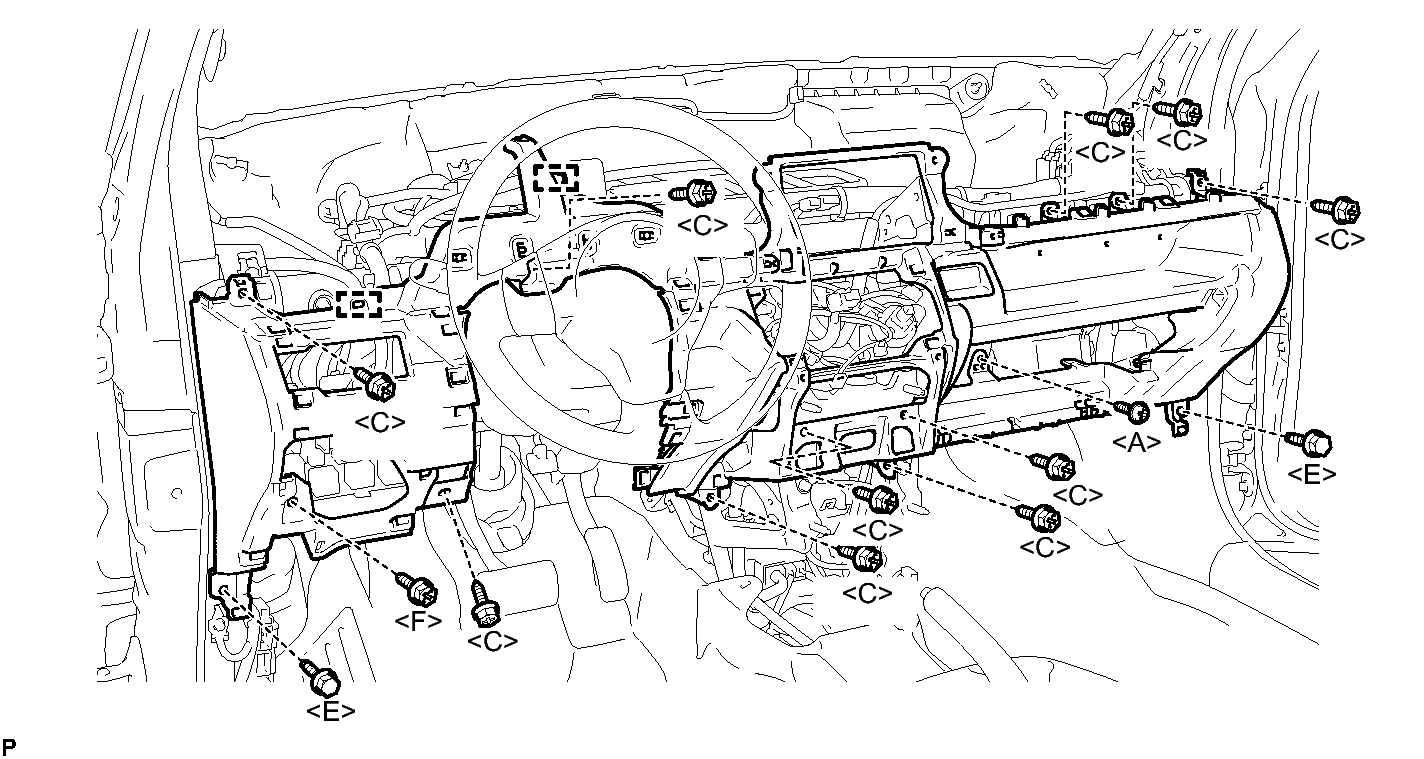

- Install the lower instrument panel with the <A> screw, 10 <C> screws, 2 <E> bolts, <F> screw.
- Connect the 2 clamps.
- Connect the front passenger seat belt warning light connector.
- Engage the 2 claws and install the DLC3 connector.
- INSTALL ANTENNA CORD SUB-ASSEMBLY
- Connect the 2 clamps and install the antenna cord.
- CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
- Engage the 3 claws to connect the hood lock control lever.
- INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL SEAL
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Engage the 4 claws and install the instrument finish panel seal.
- INSTALL RADIO BRACKET
- Install the No. 1 radio bracket with the 2 <G> bolts.
Torque: 23 N*m (229 kgf*cm, 17 ft.*lbf)
- Install the No. 2 radio bracket with the 2 <G> bolts.
Torque: 23 N*m (229 kgf*cm, 17 ft.*lbf)
- Install the No. 1 radio bracket with the 2 <G> bolts.
- INSTALL INSTRUMENT PANEL SUB REINFORCEMENT
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Install the instrument panel sub reinforcement with the 2 <D> bolts.
- INSTALL INSTRUMENT PANEL FINISH LOWER PANEL SUB-ASSEMBLY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Connect the each connectors.
- Engage the 2 clips, 7 claws and install the instrument panel finish lower panel.
- INSTALL NO. 1 SWITCH HOLE BASE
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Connect the 2 connectors.
- Engage the 2 clips, 3 claws and install the switch hole base.
- CONNECT AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY . Refer to INSTALLATION - Step 1
- CONNECT NO. 2 HEATER CONTROL CABLE SUB-ASSEMBLY . Refer to INSTALLATION - Step 2
- INSTALL AIR CONDITIONING PANEL ASSEMBLY . Refer to INSTALLATION - Step 3
- INSTALL SHIFT LEVER ASSEMBLY (for Automatic Transaxle) . Refer to INSTALLATION - Step 2
- CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (for Automatic Transaxle) . Refer to INSTALLATION - Step 3
- INSPECT SHIFT LEVER POSITION (for Automatic Transaxle) . Refer to ON-VEHICLE INSPECTION - Step 1
- ADJUST SHIFT LEVER POSITION (for Automatic Transaxle) . Refer to INSTALLATION - Step 4
- INSTALL SHIFT LEVER ASSEMBLY (for Manual Transaxle) . Refer to INSTALLATION - Step 1
- CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (for Manual Transaxle) . Refer to INSTALLATION - Step 2
- ADJUST TRANSMISSION CONTROL SELECT CABLE (for Manual Transaxle) . Refer to ADJUSTMENT - Step 1
- INSTALL INSTRUMENT PANEL FINISH LOWER PANEL (for Automatic Transaxle)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Engage the 6 clips and install the instrument panel finish lower panel.
- Install the 4 <A> screws.
- INSTALL INSTRUMENT PANEL FINISH LOWER PANEL (for Manual Transaxle)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Engage the 6 clips and install the instrument panel finish lower panel.
- Install the 2 <A> screws.
- INSTALL FRONT NO. 1 CONSOLE BOX INSERT
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Engage the 3 claws and guide and install the front console box insert.
- INSTALL FRONT NO. 2 CONSOLE BOX INSERT
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Engage the 3 claws and guide and install the front console box insert.
- INSTALL INSTRUMENT CLUSTER FINISH CENTER LOWER PANEL
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Connect the connector.
- Engage the 2 clips, 4 claws and install the instrument cluster finish center lower panel.
- INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
- Turn the shift lever knob clockwise and install the shift lever knob.
- INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY Refer to 12
- INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Refer to 13
- INSTALL COMBINATION METER ASSEMBLY . Refer to INSTALLATION - Step 1
- INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY Refer to 16
- INSTALL INSTRUMENT CLUSTER FINISH LOWER PANEL Refer to 17
- INSTALL INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY Refer to 19
- INSTALL FRONT PILLAR GARNISH RH . Refer to INSTALLATION - Step 24
- INSTALL FRONT PILLAR GARNISH LH . Refer to INSTALLATION - Step 25
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH Refer to 22
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH Refer to 23
- INSTALL COWL SIDE TRIM BOARD RH . Refer to INSTALLATION - Step 48
- INSTALL COWL SIDE TRIM BOARD LH . Refer to INSTALLATION - Step 49
- INSTALL FRONT DOOR SCUFF PLATE RH . Refer to INSTALLATION - Step 50
- INSTALL FRONT DOOR SCUFF PLATE LH . Refer to INSTALLATION - Step 51
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
- INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM
