Lower Instrument Panel: Removal: Removal

WARNING:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing. Refer to PRECAUTION .

  1. TABLE OF BOLT, SCREW AND NUT

    HINT:

    All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with their alphabet codes in the table below.

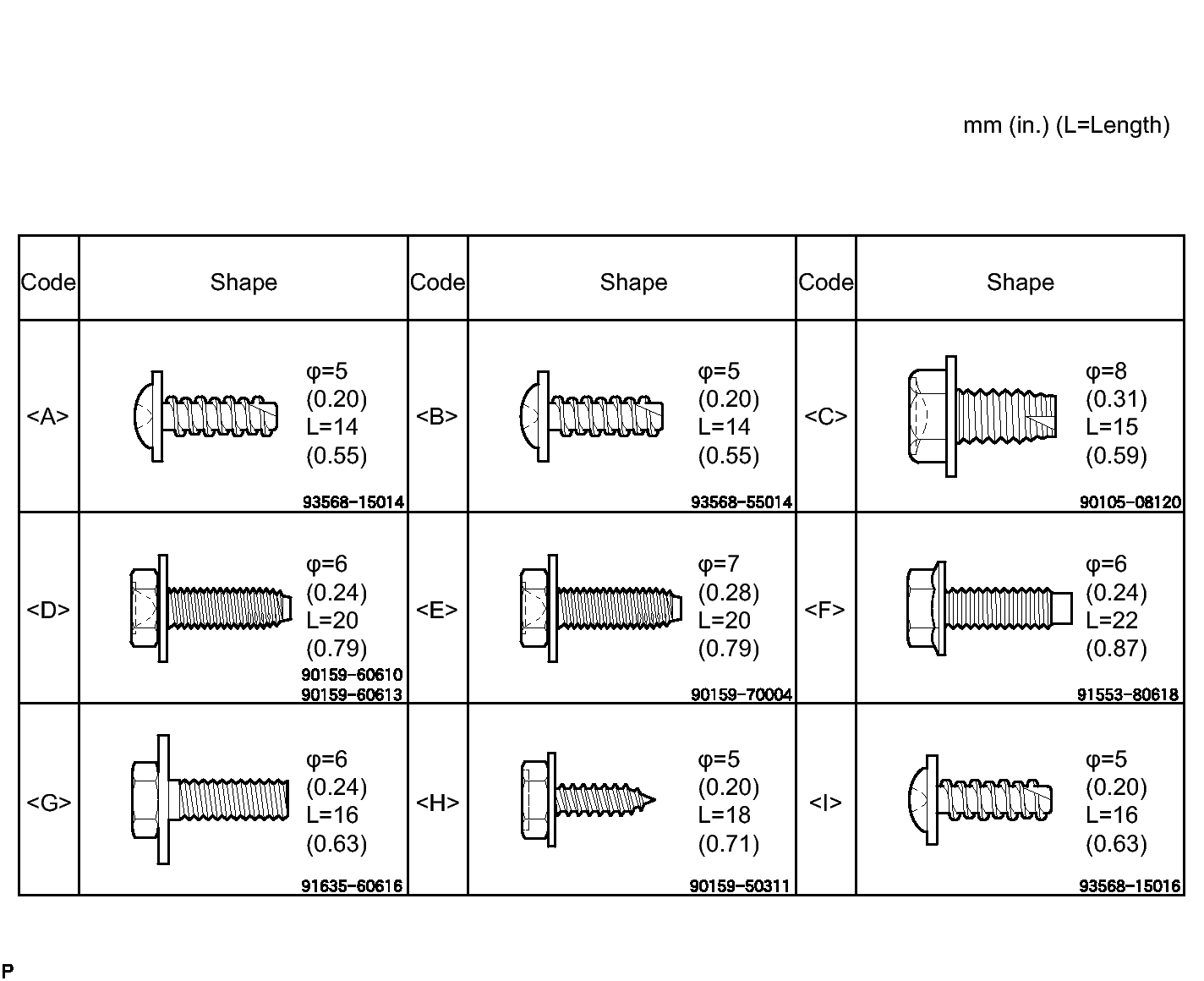

    Fig 1: Bolts, Screws And Nuts Specification Chart
    GTY159526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable to prevent the airbag from working.

  3. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP RH  See step  3
  4. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP LH  See step  4
  5. REMOVE FRONT PILLAR GARNISH RH  . Refer to REMOVAL - Step 35
  6. REMOVE FRONT PILLAR GARNISH LH  . Refer to REMOVAL - Step 36
  7. REMOVE INSTRUMENT CLUSTER FINISH PANEL  . Refer to REMOVAL - Step 2
  8. REMOVE COMBINATION METER ASSEMBLY  . Refer to REMOVAL - Step 3
  9. REMOVE INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY  See step  9
  10. REMOVE INSTRUMENT CLUSTER FINISH PANEL RETAINER  See step  10
  11. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY  See step  11
  12. REMOVE UPPER INSTRUMENT PANEL  See step  12
  13. REMOVE FRONT DOOR SCUFF PLATE RH  . Refer to REMOVAL - Step 8
  14. REMOVE FRONT DOOR SCUFF PLATE LH  . Refer to REMOVAL - Step 9
  15. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 11
  16. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 10
  17. REMOVE COWL SIDE TRIM BOARD RH  . Refer to REMOVAL - Step 12
  18. REMOVE COWL SIDE TRIM BOARD LH  . Refer to REMOVAL - Step 13
  19. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  . Refer to REMOVAL - Step 1
  20. REMOVE UPPER CONSOLE PANEL  . Refer to REMOVAL - Step 2
  21. REMOVE REAR CONSOLE BOX COVER  . Refer to REMOVAL - Step 3
  22. REMOVE CONSOLE BOX CARPET  . Refer to REMOVAL - Step 4
  23. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY  . Refer to REMOVAL - Step 5
  24. REMOVE AIR CONDITIONING PANEL ASSEMBLY  . Refer to REMOVAL - Step 2
  25. DISCONNECT DEFROSTER DAMPER CONTROL CABLE SUB-ASSEMBLY  . Refer to REMOVAL - Step 3
  26. DISCONNECT AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY  . Refer to REMOVAL - Step 4
  27. DISCONNECT AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY  . Refer to REMOVAL - Step 5
  28. REMOVE FRONT CONSOLE BOX
    Fig 2: Identifying Front Console Box Clip And Claws
    GTY160087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 <H> screws.
    2. Disengage the clip and 2 claws and remove the front console box.
  29. REMOVE INSTRUMENT PANEL UNDER TRAY
    Fig 3: Opening Instrument Panel Under Tray
    GTY166874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 4 claws and open the instrument panel under tray.
    2. Remove the 2 <A> screws.
      Fig 4: Identifying Instrument Panel Under Tray Clip And Claws
      GTY160088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the clip and 6 claws and remove the instrument panel under tray.
  30. REMOVE INSTRUMENT PANEL BOX
    Fig 5: Removing Instrument Panel Box
    GTY160089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Open the instrument panel box.
    2. Pull the instrument panel box out horizontally with the instrument panel open, disengage the 2 hinges and remove the instrument panel box.
  31. REMOVE NO. 2 RADIO BRACKET
    Fig 6: Locating No 2 Radio Bracket Bolts
    GTY162334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts and remove the radio bracket.
  32. REMOVE NO. 1 RADIO BRACKET
    Fig 7: Locating No 1 Radio Bracket Bolts
    GTY165841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts and remove the radio bracket.
  33. SEPARATE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    Fig 8: Identifying Hood Lock Control Lever Claws
    GTY160090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 3 claws and separate the hood lock control lever.
  34. SEPARATE ANTENNA CORD SUB-ASSEMBLY
    Fig 9: Identifying Antenna Cord Clamps
    GTY165789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the 3 clamps and separate the antenna cord.
  35. REMOVE LOWER INSTRUMENT PANEL
    Fig 10: Identifying DLC3 Connector Claws
    GTY160091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 2 claws and disconnect the DLC3 connector.
    2. Remove the 5 <D> or <E> screws, <H> screw, <I> screw, and 2 <F> bolts from the lower instrument panel.
      Fig 11: Identifying Lower Instrument Panel Screws And Bolts
      GTY160092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the 7 clamps.
    4. Disengage the 4 claws and remove the lower instrument panel.
      Fig 12: Identifying Lower Instrument Panel Clamps And Claws
      GTY160093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
    Fig 13: Locating Glove Compartment Door Stopper
    GTY160094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the claw and remove the glove compartment door stopper.
  37. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL SEAL
    Fig 14: Identifying Instrument Cluster Finish Panel Seal Claws
    GTY160095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 4 claws and remove the instrument cluster finish panel seal.
  38. REMOVE OUTER MIRROR SWITCH ASSEMBLY
    Fig 15: Identifying Outer Mirror Switch Claws
    GTY165509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 2 claws and remove the outer mirror switch.
  39. REMOVE LIGHT CONTROL RHEOSTAT
    Fig 16: Identifying Light Control Rheostat Claws
    GTY160096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 2 claws and remove the light control rheostat.
  40. REMOVE STEREO JACK ADAPTER ASSEMBLY
    Fig 17: Identifying Stereo Jack Adapter (AUX) Claws
    GTY160097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 2 claws and remove the stereo jack adapter (AUX).
    2. Disengage the 2 claws and remove the stereo jack adapter (i Pod).
      Fig 18: Identifying Stereo Jack Adapter (I Pod) Claws
      GTY166594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE CUSHION
    Fig 19: Identifying Cushion
    GTY165979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the cushion from the lower instrument panel.
  42. REMOVE POWER OUTLET SOCKET ASSEMBLY  . Refer to REMOVAL - Step 7
  43. REMOVE POWER OUTLET SOCKET COVER  . Refer to REMOVAL - Step 8
