Upper Instrument Panel: Removal

BOLT, SCREW AND NUT TABLE
HINT:

All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with their alphabet code in the table below.

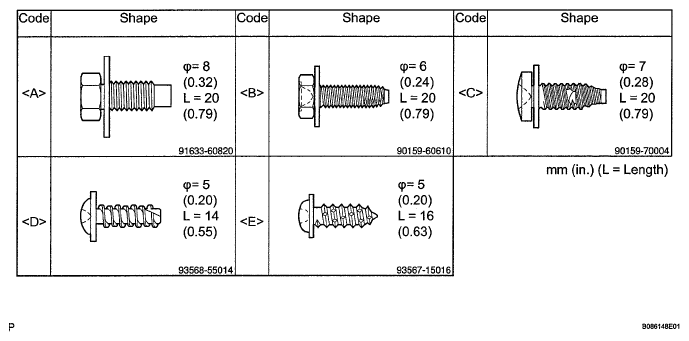

Fig 1: Bolt, Screw And Nut Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE METER HOOD SUB-ASSEMBLY
1. Tilt the steering column assembly down as far as possible.
2. Using a moulding remover, detach the 9 claws.
  HINT:

  Tape the moulding remover tip before use.
3. Remove the meter hood.

  Fig 2: Identifying Meter Hood Sub-Assembly With Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER ASSEMBLY
1. Remove the screw, and detach the 2 claws.
2. Remove the combination meter and disconnect the connector.

  Fig 3: Identifying Combination Meter Assembly With Screw And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (Manual Transaxle)
1. Turn the shift lever knob counterclockwise and remove the shift lever knob.

  Fig 4: Identifying Shift Lever Knob Sub-Assembly (Manual Transaxle)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE UPPER CONSOLE PANEL
1. Using a moulding remover, detach the 6 claws.
  HINT:

  Tape the moulding remover tip before use.

  Fig 5: Identifying Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector.
3. Remove the clamp and console panel.
REMOVE HEATER CONTROL AND ACCESSORY ASSEMBLY
REMOVE NO. 1 RADIO BRACKET
1. Remove the nut, screw and No. 1 radio bracket.
REMOVE NO. 2 RADIO BRACKET
1. Remove the nut, screw and No. 2 radio bracket.

  Fig 6: Identifying Console Panel With Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
1. Disconnect the glove compartment door stopper from the glove compartment door.

  Fig 7: Identifying Glove Compartment Door Stopper From Glove Compartment Door
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Slightly press in on the upper sides of the glove compartment door assembly to release the 2 stoppers.
3. Detach the 4 claws and remove the glove compartment door.

  Fig 8: Identifying Glove Compartment Door With Claws And Stoppers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
1. Detach the clip and remove the glove compartment door stopper.
REMOVE FRONT PILLAR GARNISH LH (w/o Curtain Shield Airbag) ( REMOVAL )
REMOVE FRONT PILLAR GARNISH LH (w/ Curtain Shield Airbag) ( REMOVAL )
REMOVE FRONT PILLAR GARNISH RH (w/o Curtain Shield Airbag)
HINT:

Use the same procedures for the RH side and LH side.

Fig 9: Identifying Clip And Removing Glove Compartment Door Stopper
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT PILLAR GARNISH RH (w/ Curtain Shield Airbag)
HINT:

Use the same procedures for the RH side and LH side.
DISCONNECT PASSENGER AIRBAG CONNECTOR
REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY
1. Remove the 5 screws and 2 bolts.
2. Detach the 13 claws.
3. Pull the upper instrument panel rearward to remove it.

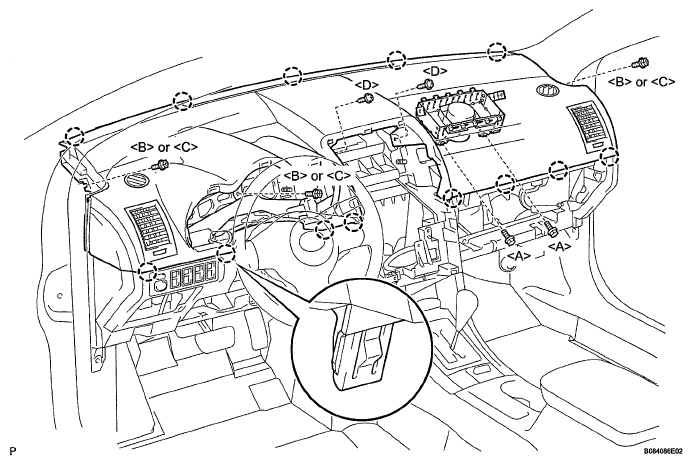

  Fig 10: Identifying Upper Instrument Panel Sub-Assembly With Screws, Bolts And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
