Roof Headlining: Removal

  1. REMOVE TONNEAU COVER ASSEMBLY
  2. REMOVE DECK BOARD SUB-ASSEMBLY
  3. REMOVE BACK DOOR SCUFF PLATE
    1. Using a clip remover, detach the 4 clips and remove the scuff plate.
  4. REMOVE BACK DOOR WEATHERSTRIP
  5. REMOVE SPARE WHEEL COVER ASSEMBLY
  6. REMOVE DECK FLOOR BOX LH
    1. Using a clip remover, remove the 2 clips and box.
  7. REMOVE DECK FLOOR BOX RH
    1. Using a clip remover, remove the 2 clips and box.
      Fig 1: Identifying Deck Floor Box Clips
      G05542161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE DECK FLOOR BOX REAR
  9. REMOVE NO. 1 DECK BOARD
    1. Using a screwdriver, detach the 2 claws and remove the bolt and rope hook.

      HINT:

      Tape the screwdriver tip before use.

      Fig 2: Identifying No. 1 Deck Board Claws And Rope Hook Bolt
      G05542162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a clip remover, detach the 4 clips and remove the deck board.
      Fig 3: Identifying Deck Board Clips
      G05542163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR NO. 1 FLOOR BOARD
    1. Using a clip remover, detach the clip and remove the board.
      Fig 4: Identifying Rear No. 1 Floor Board Clip
      G05542164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT DOOR SCUFF PLATE OUTSIDE LH
    1. Using a screwdriver, detach the 4 clips and remove the scuff plate.

      HINT:

      Tape the screwdriver tip before use.

      Fig 5: Identifying Front Door Scuff Plate Clips
      G05542165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT DOOR SCUFF PLATE OUTSIDE RH

    HINT:

    Use the same procedures described for the LH side.

  13. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Using a screwdriver, detach the 10 claws and remove the scuff plate.

      HINT:

      Tape the screwdriver tip before use.

      Fig 6: Identifying Front Door Scuff Plate Claws
      G05542166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

  15. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Remove the cap nut.
    2. Using a clip remover, detach the 2 clips and remove the trim.
      Fig 7: Identifying Cowl Side Trim Sub-Assembly Clips And Cap Nut
      G05542167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  17. REMOVE REAR SEAT CUSHION ASSEMBLY  (See REMOVAL )
  18. REMOVE REAR SEATBACK ASSEMBLY LH  (See REMOVAL )
  19. REMOVE REAR SEATBACK ASSEMBLY RH  (See REMOVAL )
  20. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  21. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  22. REMOVE NO. 1 SIDE TRIM ASSEMBLY LH
    1. Remove the 2 floor anchor bolts (front and rear seat belt).
    2. Using a clip remover, remove the clip labeled A.
    3. Using a screwdriver, detach the claw labeled A and remove the hook of the trim by turning it counterclockwise.

      HINT:

      Tape the screwdriver tip before use.

    4. Using a clip remover, detach the 8 clips.
    5. Detach the 3 claws and remove the trim.
    Fig 8: Identifying No. 1 Side Trim Assembly Clips And Claws
    G05542168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE NO. 1 SIDE TRIM ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  24. REMOVE CENTER PILLAR GARNISH LH
    1. Remove the 2 screws.
    2. w/o Curtain shield airbag:

      Using a clip remover, detach the clip and remove the garnish.

    3. w/ Curtain shield airbag:

      Using a screwdriver, detach the 2 claws and clip, and remove the garnish.

      HINT:

      Tape the screwdriver tip before use.

      Fig 9: Identifying Center Pillar Garnish Screws And Clips
      G05542169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  26. REMOVE ROOF SIDE GARNISH INNER LOWER LH
    1. Using a clip remover, detach the 5 clips and remove the garnish.
    Fig 10: Identifying Roof Side Garnish Inner Lower Clips
    G05542170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE ROOF SIDE GARNISH INNER LOWER RH

    HINT:

    Use the same procedures described for the LH side.

  28. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Insert a 3 mm hexagon wrench into the hole A to disengage the claw, then remove the luggage hook from the side panel.
    2. Remove the luggage hook, bolt and rope hook.
    3. Using a clip remover, detach the 4 clips.
    4. Using a screwdriver, detach the 4 claws and remove the side panel.

      HINT:

      Tape the screwdriver tip before use.

      Fig 11: Identifying Deck Trim Side Panel Clips And Claws
      G05542171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  30. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH
    1. w/o Curtain shield airbag:

      Using a clip remover, detach the 4 clips and remove the garnish.

      Fig 12: Identifying Roof Side Garnish Clips (W/O Curtain Shield Airbag)
      G05542172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Curtain shield airbag:
      1. Using a clip remover, detach the 3 clips labeled A.
      2. Using a screwdriver, firmly push the pin to disengage the clip labeled B.

        HINT:

        • Clip B cannot be reused.
        • Tape the screwdriver tip before use.
        Fig 13: Identifying Roof Side Garnish Clips (With Curtain Shield Airbag)
        G05542173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER RH

    HINT:

    Use the same procedures described for the LH side.

  32. REMOVE FRONT PILLAR GARNISH LH
    1. w/o Curtain shield airbag:

      Using a clip remover, detach the 2 clips and remove the garnish.

      Fig 14: Identifying Front Pillar Garnish Clips (W/O Curtain Shield Airbag)
      G05542174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Curtain shield airbag:
      1. Using a clip remover, detach the clip labeled A.
      2. Using a screwdriver, firmly push the pin to detach the clip B.

        HINT:

        • Clip B cannot be reused.
        • Tape the screwdriver tip before use.
          Fig 15: Identifying Front Pillar Garnish Clips (With Curtain Shield Airbag)
          G05542175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Curtain shield airbag:

      Protect the curtain shield airbag LH.

      1. Thoroughly cover the airbag with a piece of cloth or nylon that is 700 mm (27.56 in.) x 120 mm (4.72 in.) and fix the ends of the cover with adhesive tape, as shown in the illustration.
        NOTE: Cover the curtain shield airbag with the protective cover as soon as the pillar garnish is removed.

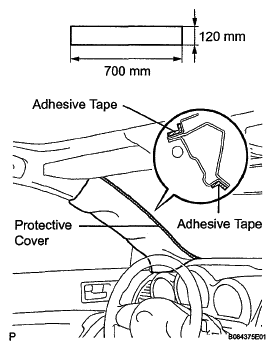

      Fig 16: Protecting Curtain Shield Airbag (With Curtain Shield Airbag)
      G05542176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  34. REMOVE MAP LIGHT ASSEMBLY
    1. Using a clip remover, detach the 3 clips and remove the light.
    2. Disconnect the map light connector.
      Fig 17: Identifying Map Light Assembly Clips
      G05542177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE NO. 1 ROOM LIGHT ASSEMBLY
    1. Using a screwdriver, detach the 4 claws and remove the lens.

      HINT:

      Tape the screwdriver tip before use.

      Fig 18: Identifying No. 1 Room Light Lens And Claws
      G05542178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, detach the 4 claws and remove the light.

      HINT:

      Tape the screwdriver tip before use.

      Fig 19: Identifying No. 2 Room Light Claws
      G05542179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the light connector.
  36. REMOVE NO. 2 ROOM LIGHT ASSEMBLY
    1. Using a screwdriver, detach the light from the deck trim side panel LH.

      HINT:

      Tape the screwdriver tip before use.

  37. REMOVE LH VISOR ASSEMBLY
    1. Remove the 2 screws and visor.
  38. REMOVE RH VISOR ASSEMBLY
    1. Remove the 2 screws and visor.
  39. REMOVE VISOR HOLDER LH
    1. Remove the visor holder by turning it counterclockwise.
      Fig 20: Identifying Visor Holder
      G05542180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE VISOR HOLDER RH
    1. Remove the visor holder by turning it counterclockwise.
  41. REMOVE ASSIST GRIP COVER
    1. Using a screwdriver, detach the 4 claws and remove the 2 covers.

      HINT:

      Tape the screwdriver tip before use.

      Fig 21: Identifying Assist Grip Cover Claws
      G05542181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE ASSIST GRIP SUB-ASSEMBLY
    1. Using a screwdriver, detach the 4 claws and remove the assist grip.

      HINT:

      Tape the screwdriver tip before use.

      Fig 22: Identifying Assist Grip Claws
      G05542182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE COAT HOOK
    1. Using a screwdriver, detach the claw and remove bolt and coat hook.

      HINT:

      Tape the screwdriver tip before use.

      Fig 23: Identifying Coat Hook Claw And Bolt
      G05542183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE ROOF HEADLINING ASSEMBLY
    1. Using a clip remover, remove the 2 clips.
    2. Detach the 26 fasteners and remove the headlining.
    3. Remove the tape and the wire harness.
      Fig 24: Identifying Roof Headlining Assembly Fasteners And Clips
      G05542184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE SIDE RAIL SPACER FRONT LH (w/o Curtain Shield Airbag)
  46. REMOVE SIDE RAIL SPACER FRONT RH (w/ Curtain Shield Airbag)
  47. REMOVE SIDE RAIL SPACER REAR LH (w/o Curtain Shield Airbag)
  48. REMOVE SIDE RAIL SPACER REAR RH (w/o Curtain Shield Airbag)
