Curtain Shield Air Bag ASSY LH: Replacement

HINT:

Replacement procedure of the RH side is the same as that for the LH side.

1. PRECAUTION (See  PRECAUTION   )
2. DISCONNECT BATTERY NEGATIVE TERMINAL (See  PRECAUTION   )
3. REMOVE ROOF HEADLINING ASSY (SEE  REPLACEMENT  )
4. REMOVE CURTAIN SHIELD AIR BAG ASSY LH
   1. Using a screwdriver, disconnect the connector of the curtain shield airbag assy LH.
   2. Remove the 3 bolts, 4 screws and the curtain shield airbag assy LH in the order shown in the illustration.

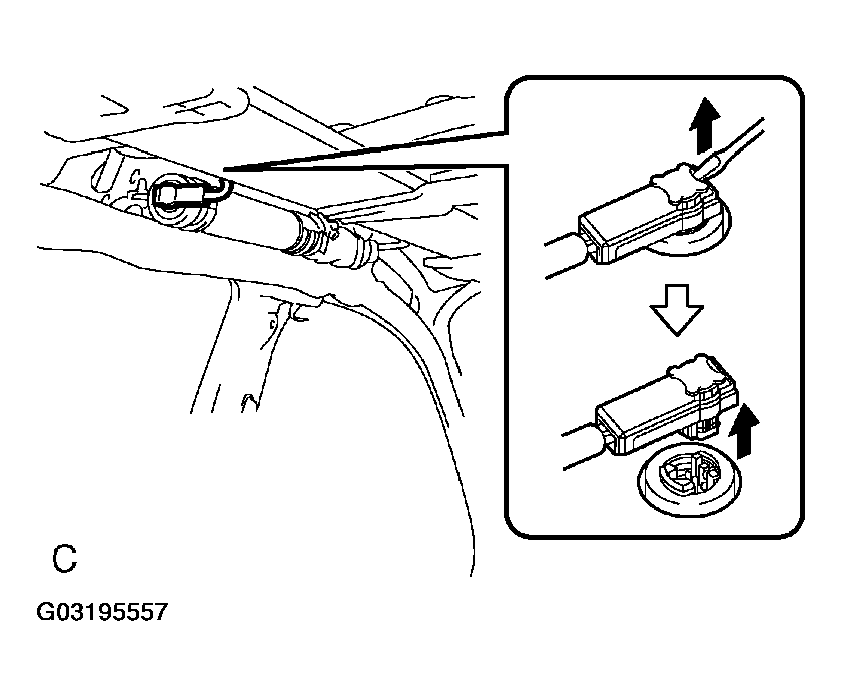

      Fig 1: Disconnecting Connector Of Curtain Shield Airbag Assy LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

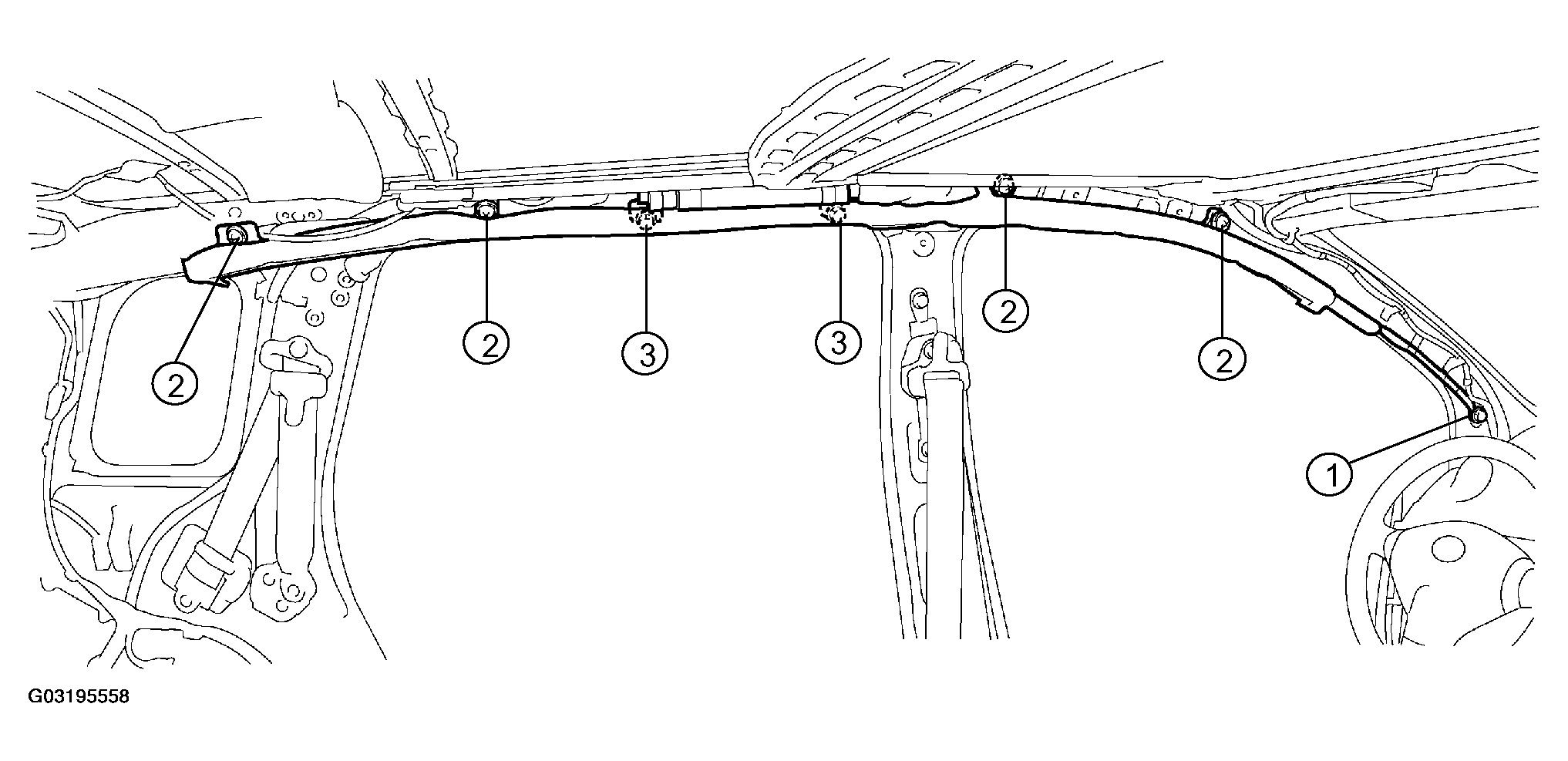

      Fig 2: Removing 3 Bolts, 4 Screws & Curtain Shield Airbag Assy LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL CURTAIN SHIELD AIR BAG ASSY LH
   1. Install the curtain shield airbag assy LH with the 3 bolts and 4 screws in the order shown in the illustration.

      Torque: 14 N.m (143 kgf.cm, 10 ft.lbf)

      Fig 3: Installing Curtain Shield Airbag Assy LH With 3 Bolts & 4 Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Connect the curtain shield airbag assy LH connector.

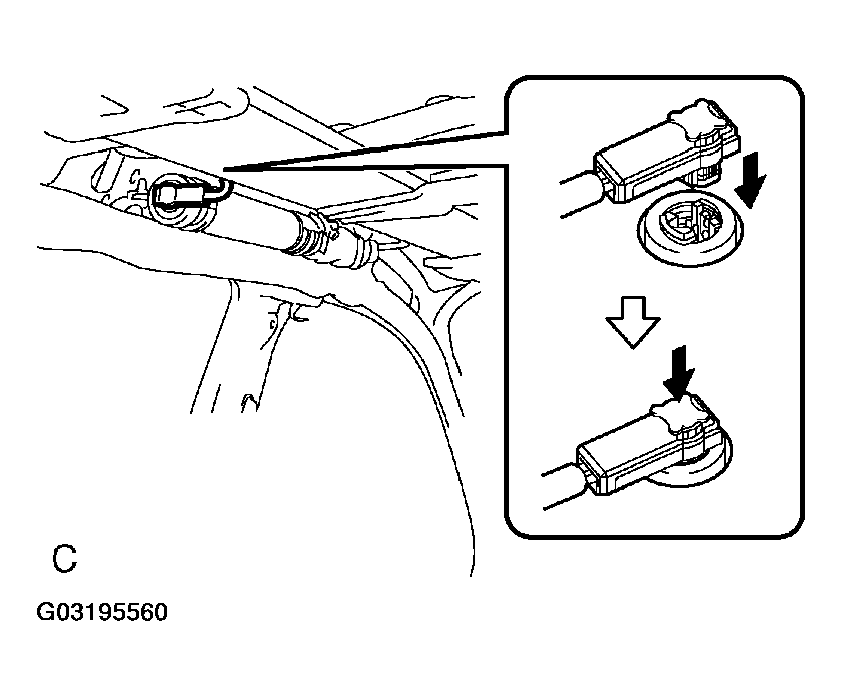

      Fig 4: Connecting Curtain Shield Airbag Assy LH Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSPECT CURTAIN SHIELD AIR BAG ASSY LH (See  ON-VEHICLE INSPECTION   )
7. INSTALL ROOF HEADLINING ASSY (SEE  REPLACEMENT  )
8. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
