Roof Headlining ASSY: Replacement

HINT:

• Use the same procedures for the RH side and LH side.
• The installation procedures are the removal procedures in reverse order.
• A bolt without a torque specification is shown in the standard bolt table (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. REMOVE FRONT DOOR SCUFF PLATE RH
   1. Using a screwdriver, disengage the 3 claws and 4 clips, and remove the scuff plate.

      HINT:

      Tape the screwdriver tip before use.

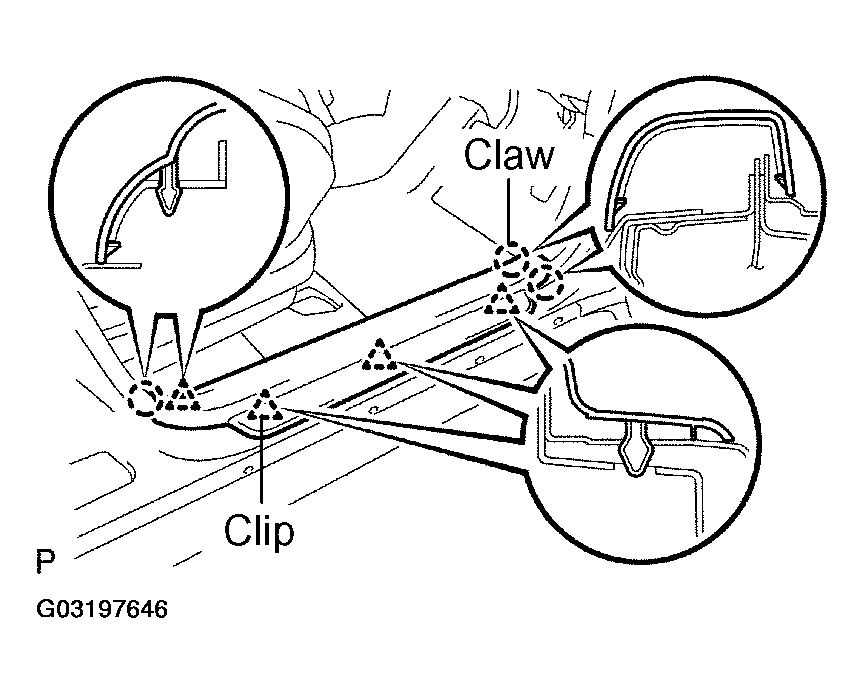

      Fig 1: Disengaging Claws & Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE FRONT DOOR SCUFF PLATE LH

   HINT:

   Use the same procedures described for the RH side.

3. REMOVE REAR DOOR SCUFF PLATE RH
   1. Using a screwdriver, disengage the 2 claws and 3 clips, and remove the scuff plate.

      HINT:

      Tape the screwdriver tip before use.

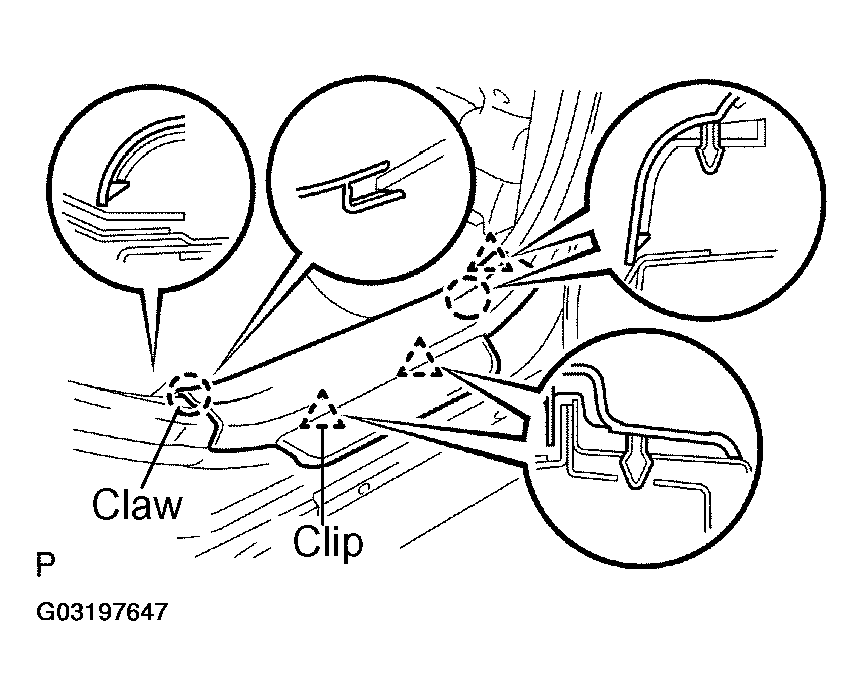

      Fig 2: Removing Rear Door Scuff Plate RH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE REAR DOOR SCUFF PLATE LH

   HINT:

   Use the same procedures described for the RH side.

5. REMOVE COWL SIDE TRIM BOARD RH
   1. Using a screwdriver, disengage the 2 clips and remove the trim board.

      HINT:

      Tape the screwdriver tip before use.

      Fig 3: Disengaging Clips & Removing Trim Board

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE COWL SIDE TRIM BOARD LH

   HINT:

   Use the same procedures described for the RH side.

7. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
8. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
9. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
10. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
11. REMOVE CENTER PILLAR GARNISH LOWER RH
    1. Remove the floor anchor cover.
    2. Remove the bolt and front seat outer belt on the floor anchor side.
    3. Disengage the 2 clips and 2 claws, and remove the center pillar garnish.
       Fig 4: Removing Center Pillar Garnish

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE CENTER PILLAR GARNISH LOWER LH

    HINT:

    Use the same procedures described for the RH side.

13. REMOVE CENTER PILLAR GARNISH UPPER RH
    1. Remove the shoulder anchor cover.
    2. Remove the bolt and front seat outer belt on the shoulder anchor side.
    3. w/o Curtain shield airbag:

       Disengage the clip and remove the center pillar garnish by pulling it up.

    4. w/ Curtain shield airbag:

       Disengage the 2 clips and remove the center pillar garnish.

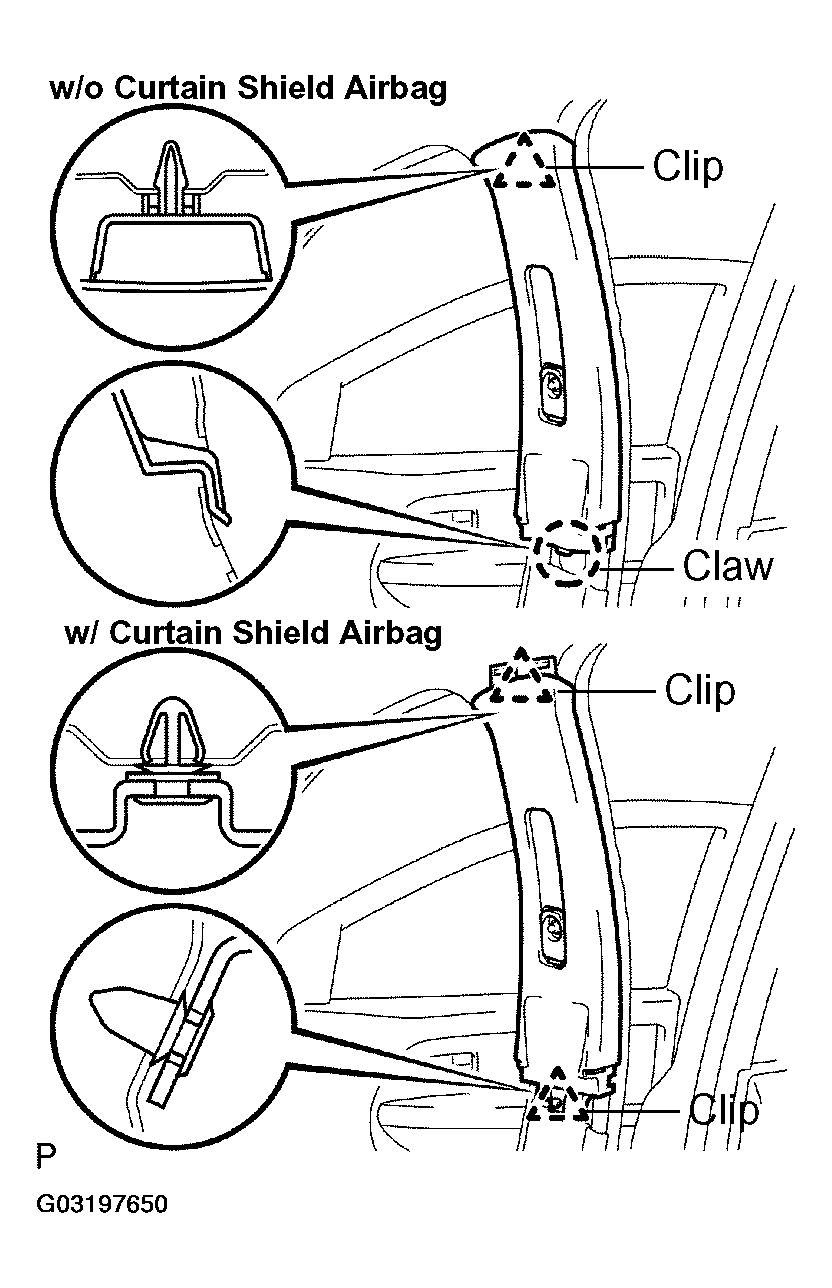

       Fig 5: Identifying Curtain Shield Airbag Clip

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. REMOVE CENTER PILLAR GARNISH UPPER LH

    HINT:

    Use the same procedures described for the RH side.

15. REMOVE REAR SEAT ASSY (See  REPLACEMENT  )
16. REMOVE TONNEAU COVER ASSY
17. REMOVE DECK BOARD NO.1
18. REMOVE DECK FLOOR BOX RH
    1. Remove the 2 bolts and floor box.
19. REMOVE SPARE WHEEL COVER
20. REMOVE DECK FLOOR BOX REAR
    1. Remove the 4 clips.

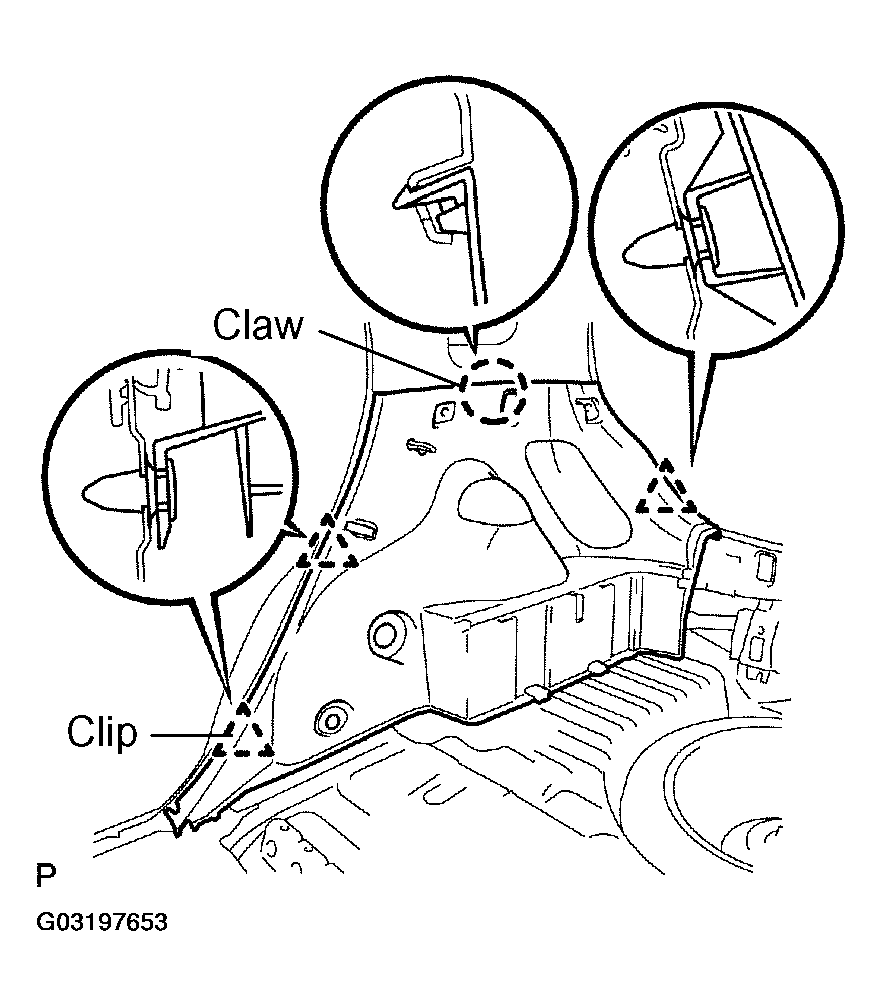

    2. Disengage the 2 claws and remove the trim cover.

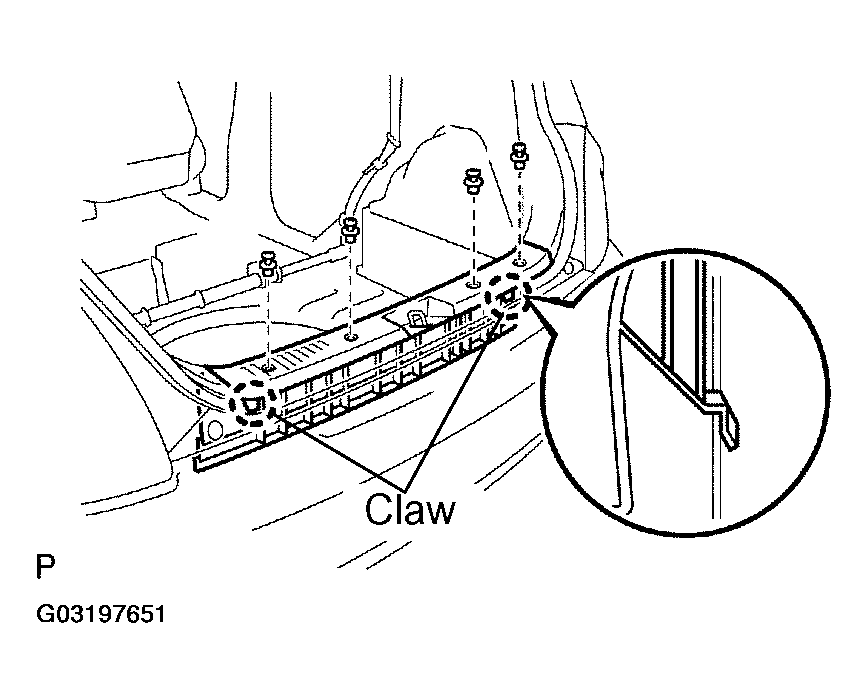

       Fig 6: Disengaging Claws & Removing Trim Cover

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
21. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSY RH
    1. Remove the 4 bolts and anchor bracket.
22. REMOVE DECK TRIM SIDE PANEL ASSY RH
    1. Remove the 2 covers and 2 screws.
    2. Remove the screw and compartment trim hook.
    3. Remove the bolt and seatback hinge.
    4. Remove the bolt and belt on the floor anchor side.
       Fig 7: Removing Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a screwdriver, disengage the 3 clips and claw, and remove the side panel.

       HINT:

       Tape the screwdriver tip before use.

       Fig 8: Disengaging Clips & Claw

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
23. REMOVE DECK TRIM SIDE PANEL ASSY LH

    HINT:

    Use the same procedures described for the RH side.

24. REMOVE ROOF SIDE GARNISH INNER RH
    1. w/o Curtain shield airbag:

       Using a screwdriver, disengage the 4 clips and remove the side garnish.

       HINT:

       Tape the screwdriver tip before use.

    2. w/ Curtain shield airbag:

       Using a screwdriver, disengage the 5 clips and remove the side garnish.

       HINT:

       Tape the screwdriver tip before use.

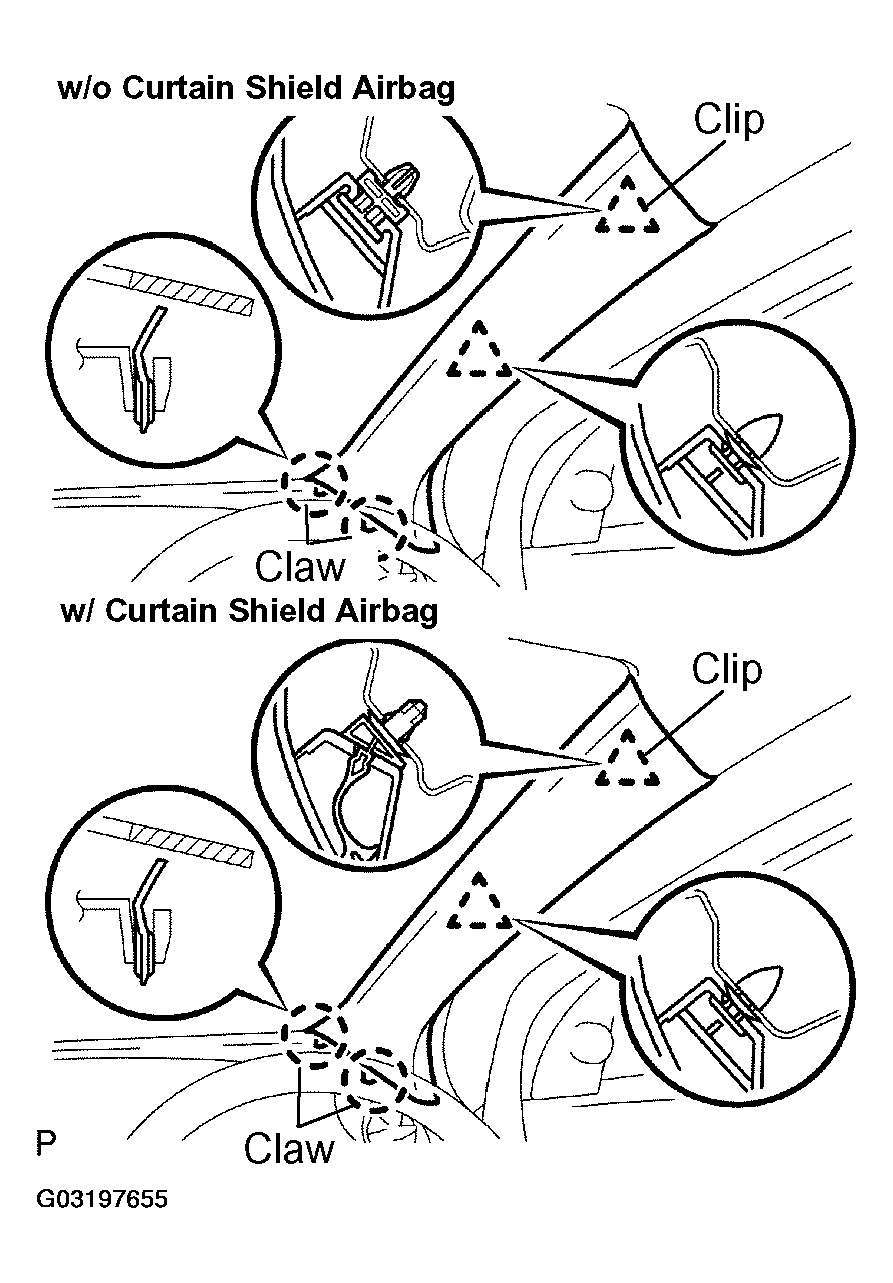

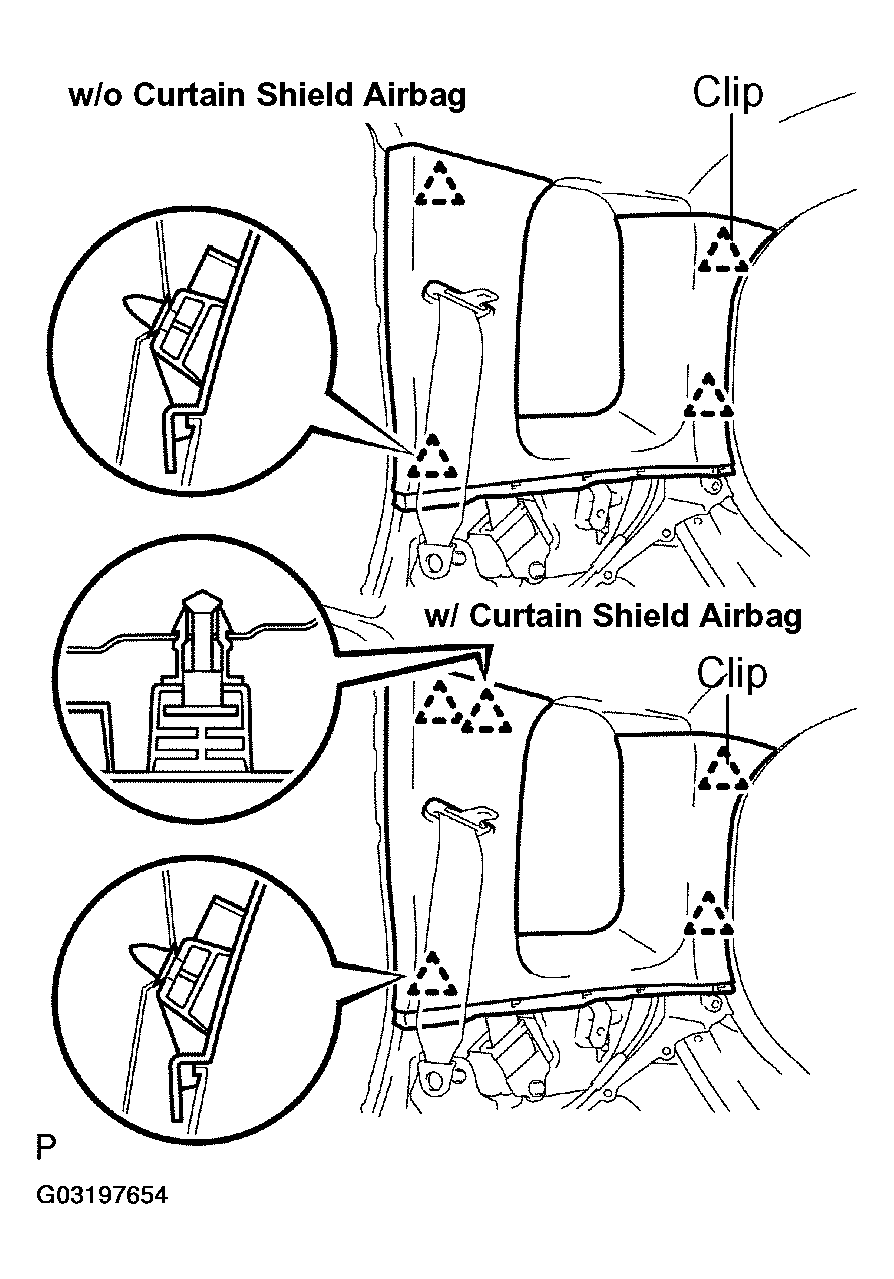

       Fig 9: Identifying Curtain Shield Airbag Clip

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
25. REMOVE ROOF SIDE GARNISH INNER LH

    HINT:

    Use the same procedures described for the RH side.

26. REMOVE FRONT PILLAR GARNISH RH
    1. Using a screwdriver, disengage the 2 clips.

       HINT:

       Tape the screwdriver tip before use.

    2. Disengage the 2 claws by pulling up the garnish and remove the garnish.
       Fig 10: Removing Front Pillar Garnish RH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Curtain shield airbag:

       Protect the curtain shield airbag.

       1. Thoroughly cover the airbag with cloth or nylon that is 700 mm (27.56 in.) x 120 mm (4.72 in.) and fix the ends of the cover with adhesive tape, as shown in the illustration.
          NOTE: Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.

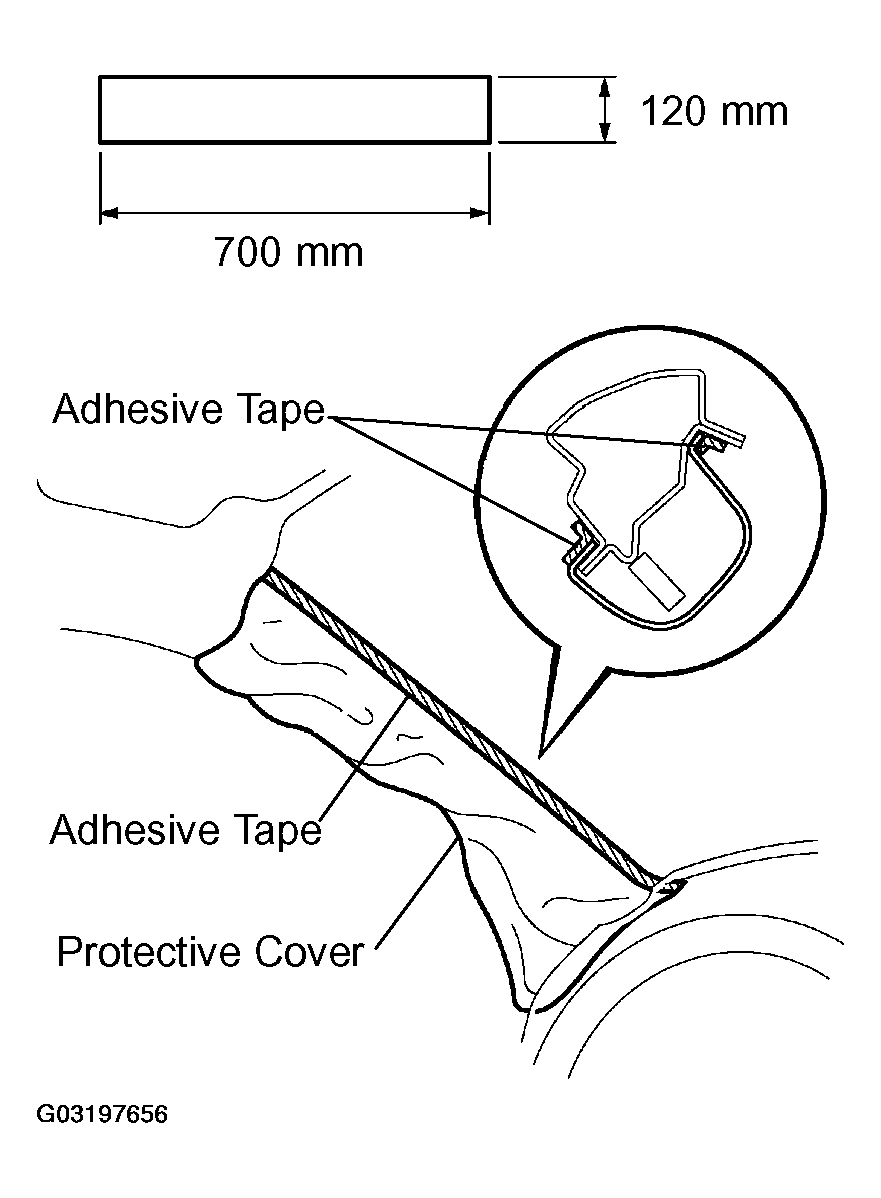

          Fig 11: Identifying Adhesive Tape

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
27. REMOVE FRONT PILLAR GARNISH LH

    HINT:

    Use the same procedures described for the RH side.

28. REMOVE RH VISOR ASSY
    1. Remove the 2 screws and visor.
29. REMOVE LH VISOR ASSY
    1. Remove the 2 screws and visor.
30. REMOVE MAP LAMP ASSY
    1. Remove the screw and lens cover.

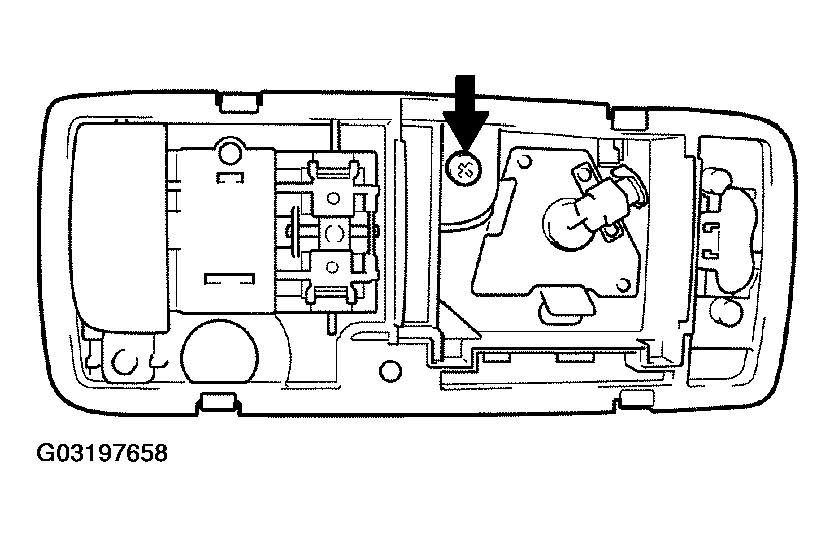

       Fig 12: Locating Map Lamp Screw

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the screw and lamp.
    3. Disconnect the map lamp connector.
       Fig 13: Removing Screw & Lamp

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
31. REMOVE ROOM LAMP ASSY NO.1
    1. Using a screwdriver, disengage the 4 claws and remove the lens cover.

       HINT:

       Tape the screwdriver tip before use.

    2. Remove the 2 screws.
    3. Disconnect the connector and remove the lamp.
       Fig 14: Disengaging Claw Using Screwdriver

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
32. REMOVE ASSIST GRIP ASSY
    1. Using a screwdriver, disengage the 2 claws and remove the assist grip covers.

       HINT:

       Tape the screwdriver tip before use.

    2. Remove the 2 bolts and assist grip.
       Fig 15: Removing Bolts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
33. REMOVE VISOR HOLDER
    1. Remove the visor holder by turning it counterclockwise.
       Fig 16: Removing Visor Holder

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
34. w/ Sliding roof:

    REMOVE SUN ROOF OPENING TRIM MOLDING

35. REMOVE ROOF HEADLINING ASSY
    1. w/ Sliding roof:

       Using a clip remover, disengage the 3 clips and remove the headlining.

    2. w/o Sliding roof:

       Using a clip remover, disengage the 5 clips and remove the headlining.

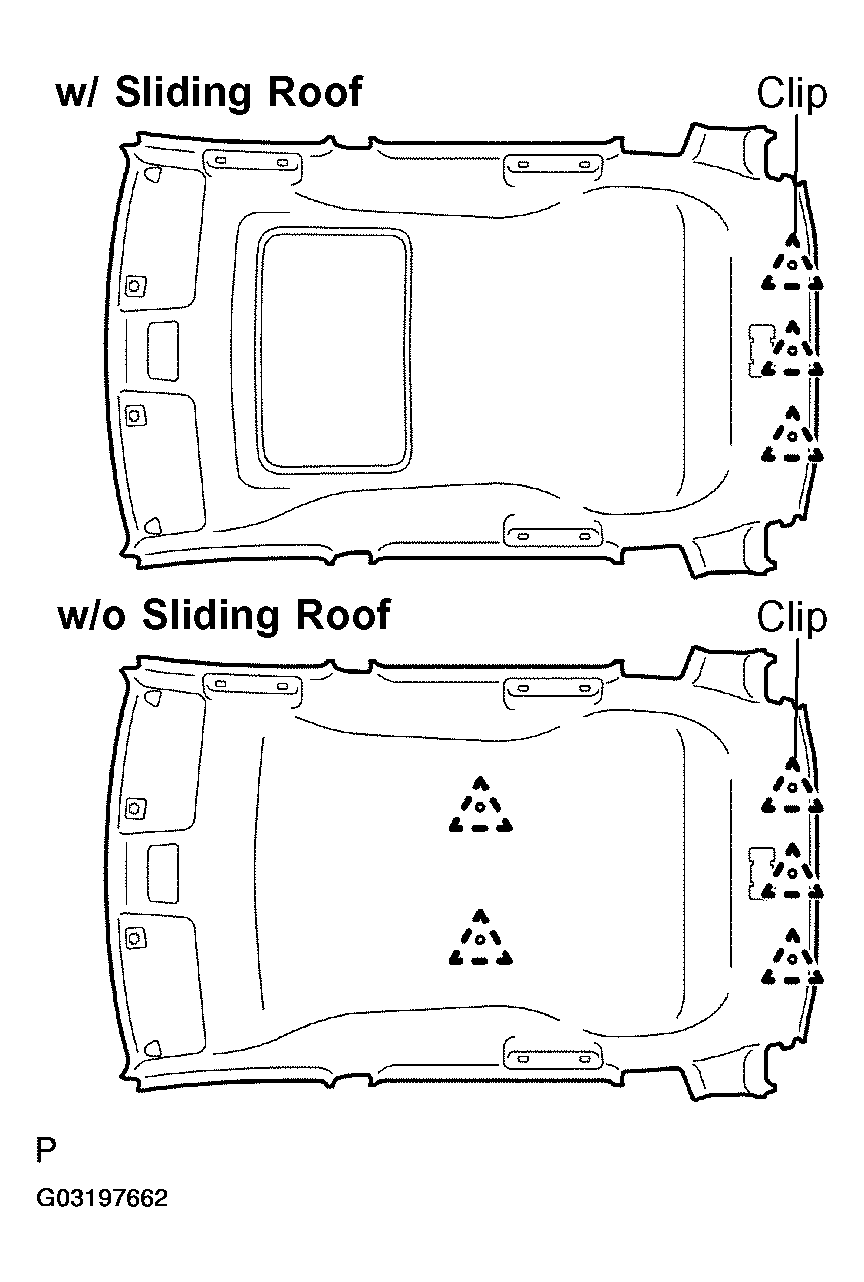

       Fig 17: Identifying Sliding Roof Clip

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
