Inspection Procedure

  1. CHECK WIRE HARNESS (BODY GROUND - DLC3)
    1. Measure the resistance according to the table below.

    Standard:

    TESTER CONNECTION AND SPECIFIED CONDITION

    Tester Connection Specified Condition
    D1-4 (CG) - Body ground Below 1 Ω
    Fig 1: Checking Wire Harness (Body Ground - DLC3)
    G03196522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK : GO TO NEXT STEP.
  2. CHECK WIRE HARNESS (SKID CONTROL ECU - DLC3)
    1. Disconnect the skid control ECU connector.
    2. Measure the resistance according to the table below.

    Standard:

    TESTER CONNECTION AND SPECIFIED CONDITION

    Tester Connection Specified Condition
    S1-24 (TS) - D1-12 (TS) Below 1 Ω
    S1-24 (TS) - Body ground 10 kΩ or higher

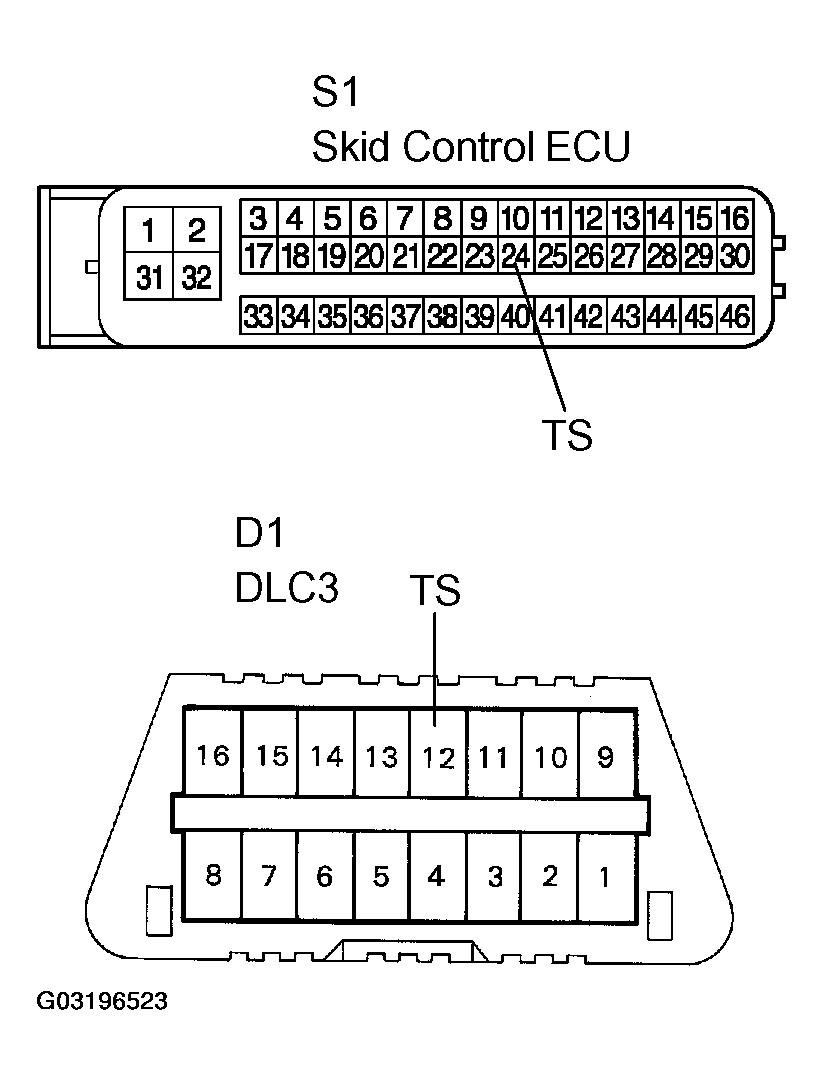

    Fig 2: Disconnecting Skid Control ECU Connector
    G03196523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK : REPLACE BRAKE ACTUATOR ASSY (See  REPLACEMENT  )
    NOTE: When replacing the brake actuator assy, perform the zero point calibration (see CALIBRATION  ).
