Front Seat Belt With PRETENSIONER: Replacement

HINT:

• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.
• A bolt without a torque specification is shown in the standard bolt chart (See SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE REAR SEAT CUSHION ASSY (See  OVERHAUL  )
3. REMOVE REAR SEATBACK ASSY LH (See  OVERHAUL  )
4. REMOVE FRONT DOOR SCUFF PLATE LH (See  REPLACEMENT  )
5. REMOVE SIDE NO. 1 TRIM ASSY LH (See  OVERHAUL  )
6. REMOVE CENTER PILLAR GARNISH LH (See  REPLACEMENT  )
7. REMOVE FRONT SEAT OUTER BELT ASSY LH
   CAUTION:

   • Removal of the seat belt pretensioner must be started at least 90 seconds after the ignition switch is turned OFF and after the cable is disconnected from the negative (-) battery terminal.
   • Carefully read the notices for the pretensioner in the SRS article and the front seat outer belt article (See SUPPLEMENTAL RESTRAINT SYSTEM ).

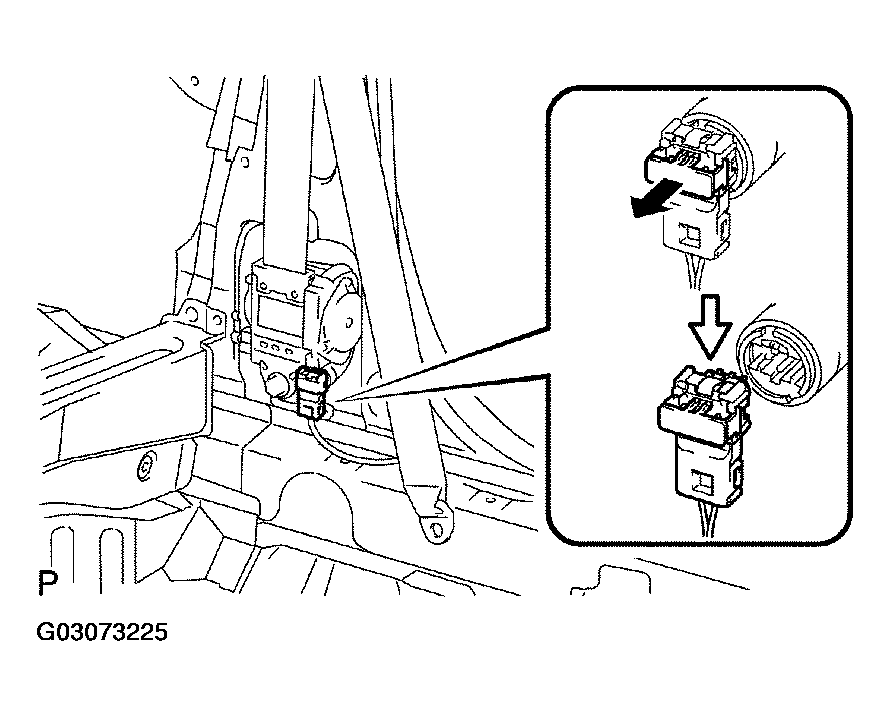

   1. To disconnect the pretensioner connector: 1) pull out the lock part of the connector as indicated by the black arrow in the illustration, and 2) remove the connector.
      Fig 1: Pulling Out Lock Part Of Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

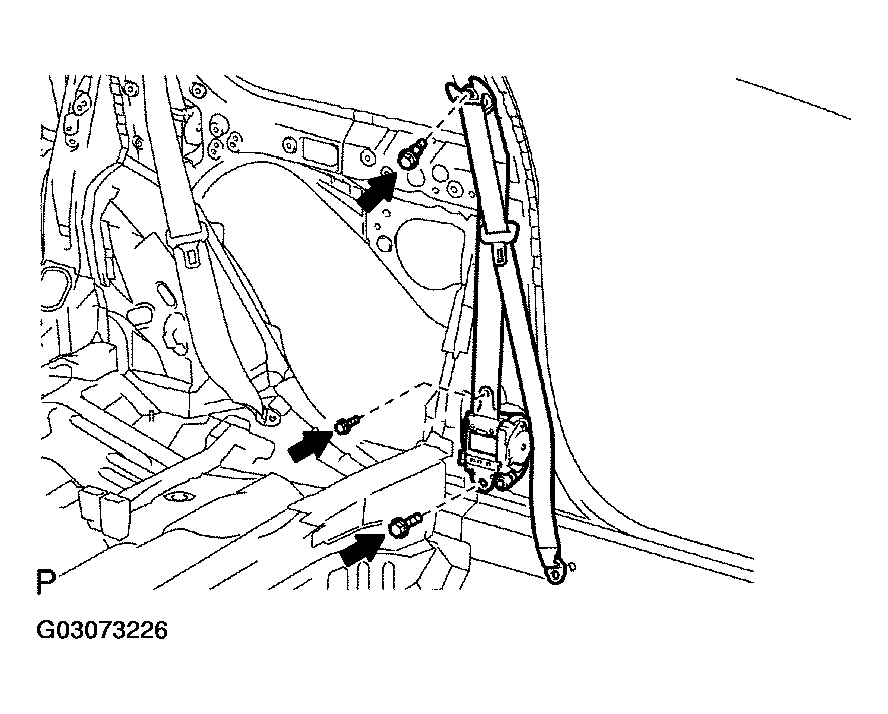

   2. Remove the 3 bolts and outer belt.
      Fig 2: Removing Bolts And Outer Belt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE FRONT SEAT INNER BELT ASSY LH
   1. Remove the front seat LH (See OVERHAUL ).
   2. Disconnect the 3 connectors and then detach the 5 claws.
   3. Remove the nut and inner belt.
9. INSTALL FRONT SEAT INNER BELT ASSY LH
   1. Install the inner belt with the nut.
      1. Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)
10. INSTALL FRONT SEAT OUTER BELT ASSY LH
    NOTE: Do not disassemble the retractor.
    1. Before installing the ELR, check the ELR.

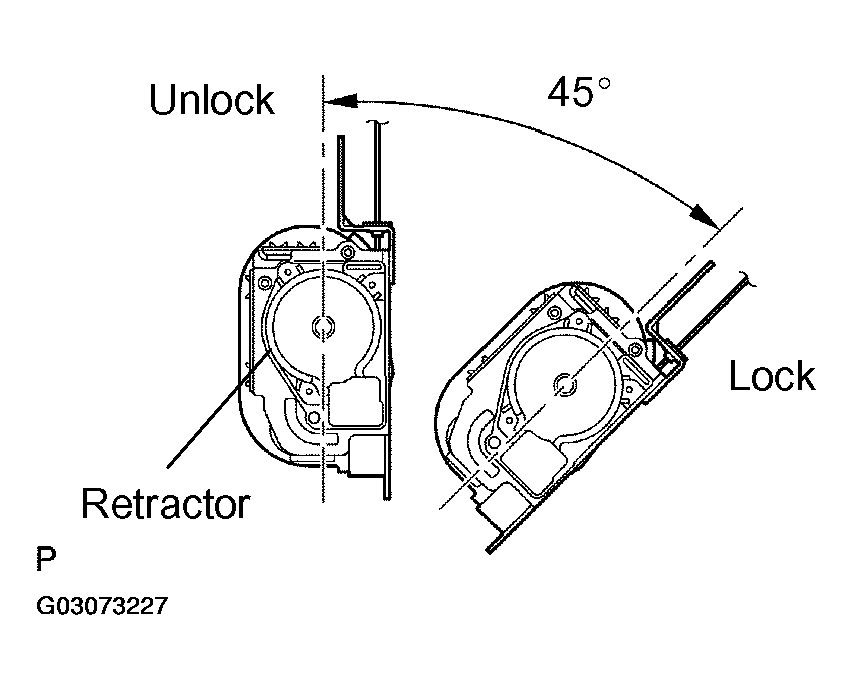

       1. When the inclination of the retractor is 15Ω or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over45°, check that the belt locks.

       If operation is not as specified, replace the seat belt assy.

       Fig 3: Checking ELR

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

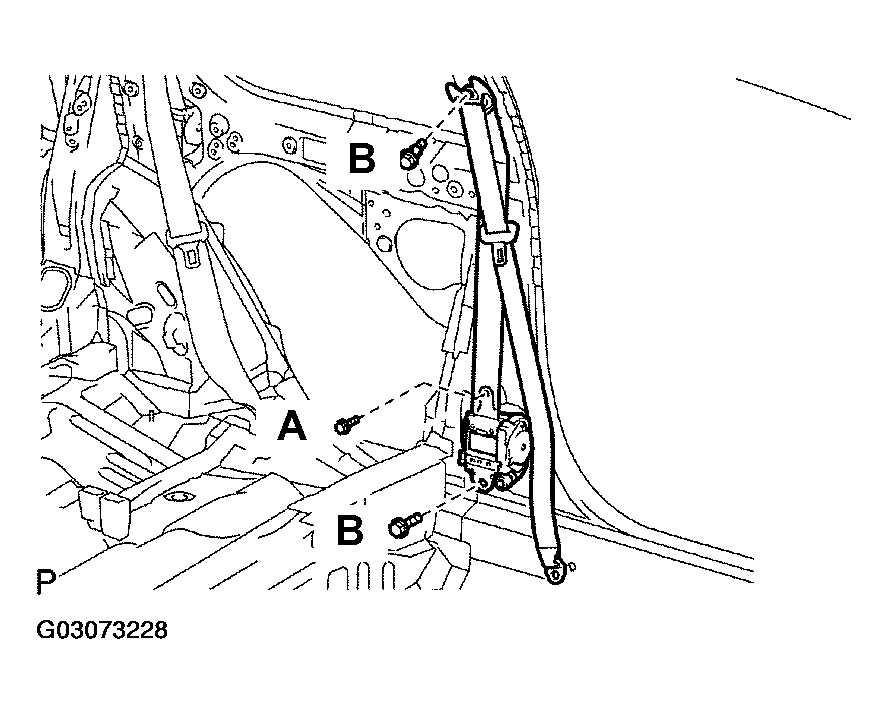

    2. Install the outer belt with the 3 bolts.
       1. Torque:
       2. 4.9 N.m (50 kgf.cm, 43 in.lbf) for bolt A
       3. 42 N.m (430 kgf.cm, 31 ft.lbf) for bolt B
    3. Install the floor anchor with the bolt (See REPLACEMENT ).
       Fig 4: Installing Floor Anchor With Bolt

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

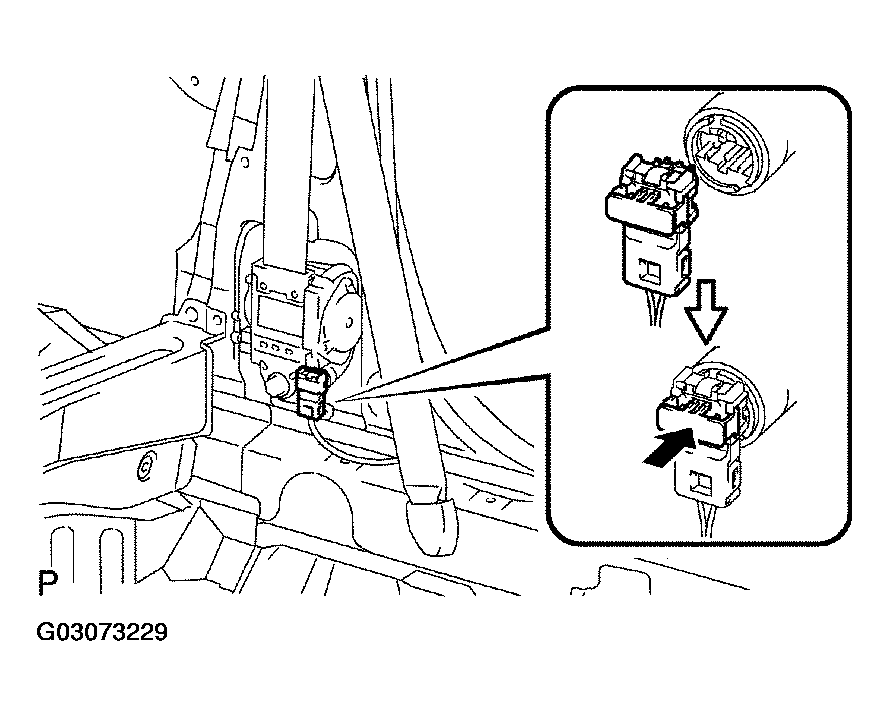

    4. Connect the pretensioner connector as shown in Fig 5 .
    5. After installing the ELR, check the ELR.
       Fig 5: Connecting Pretensioner Connector

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       NOTE: The check should be performed with the outer belt installed.
       1. With the belt installed, check that the belt locks when it is pulled out quickly.

       If operation is not as specified, replace the seat belt assy.

    6. Check the fastening function of the child restraint system.
       NOTE: The check should be performed with the outer belt installed.
       1. When the belt is pulled out fully, the belt should automatically try to retract.
       2. After the belt has fully retracted, the belt should be able to be pulled out and retracted again.

       If operation is not as specified, replace the seat belt assy.

11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
12. PERFORM INITIALIZATION (See  INITIALIZATION  )
13. CHECK SRS WARNING LAMP (See  SUPPLEMENTAL RESTRAINT SYSTEM  )
