Master Cylinder: Installation

To install, reverse removal procedure. Tighten nuts to specification. See TORQUE SPECIFICATIONS . Check and adjust power brake unit push rod. See BRAKE BOOSTER PUSH ROD  under ADJUSTMENTS. Bleed brake system. See BLEEDING BRAKE SYSTEM .

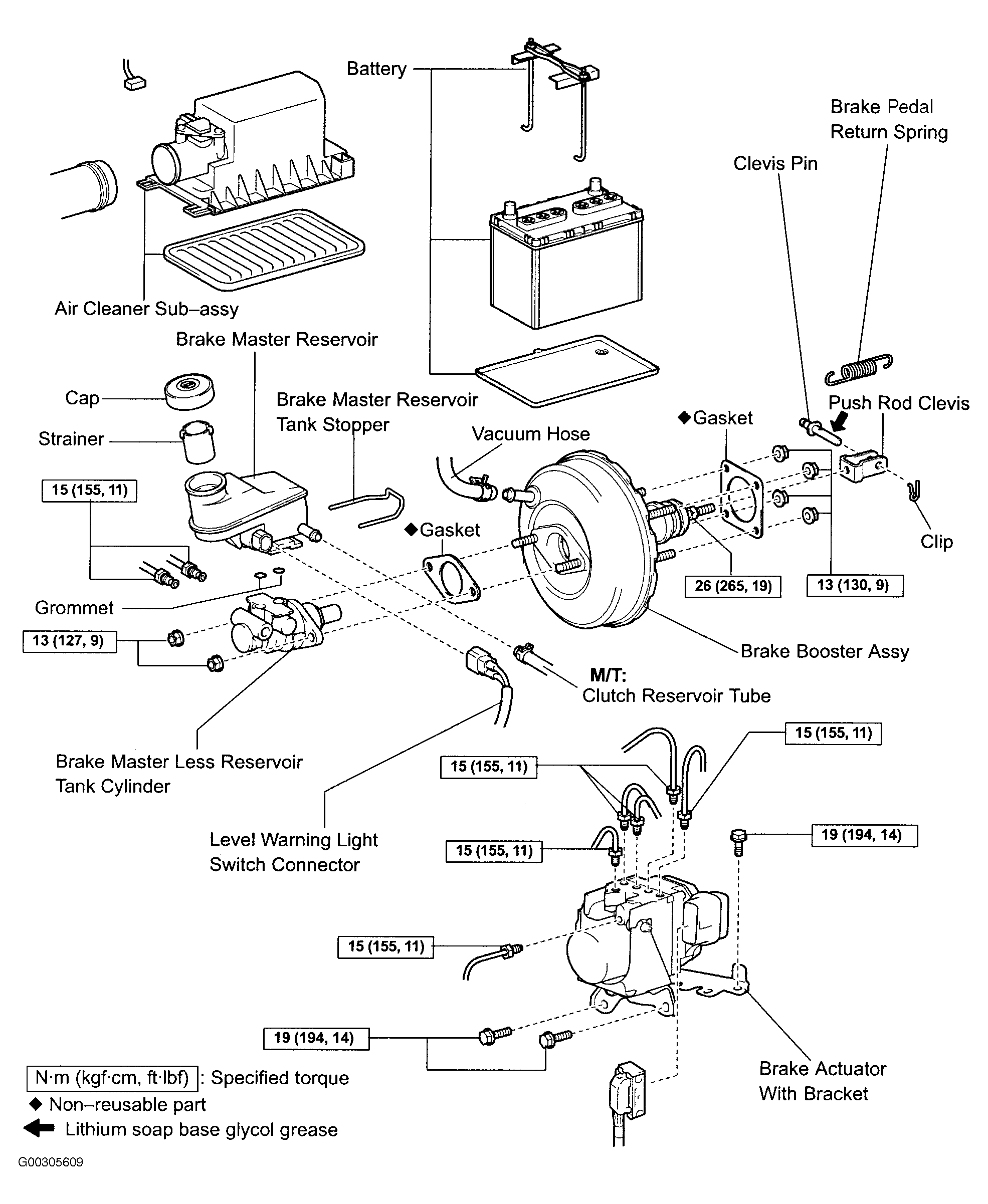

Fig 1: Locating Brake Master Cylinder & Booster Assembly Components
G00305609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
