Installation Procedure

WARNING: This page is about a different variant/trim than selected.

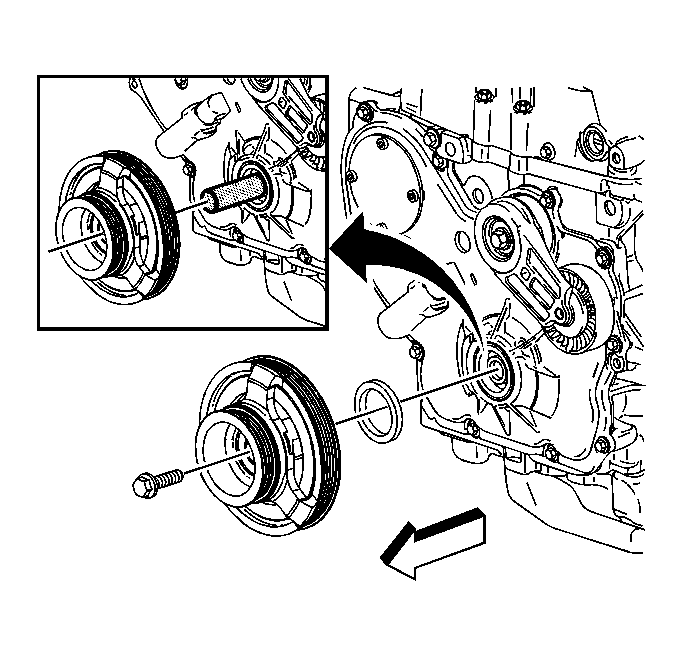

    Fig 1: View Of Crankshaft Balancer, Bolt & Washer
    GM1594330Courtesy of GENERAL MOTORS CORP.
    CAUTION: Ensure both components are aligned correctly or serious engine damage will occur.
  1. Install the crankshaft balancer onto the crankshaft indexing keyway. Use care to properly align the keyway and the flats on the balancer with the oil pump drive.
  2. Install the crankshaft balancer using a universal balancer installer.
    CAUTION: Refer to Fastener Caution .
    3. NOTE: Always install a NEW crankshaft balancer bolt and washer.
  3. Install a NEW crankshaft balancer bolt and washer. Prevent the crankshaft from rotating when tightening the bolt.

    Tighten:  Tighten the bolt to 100 N.m (74 lb ft) plus an additional 125 degrees using the J 45059  .

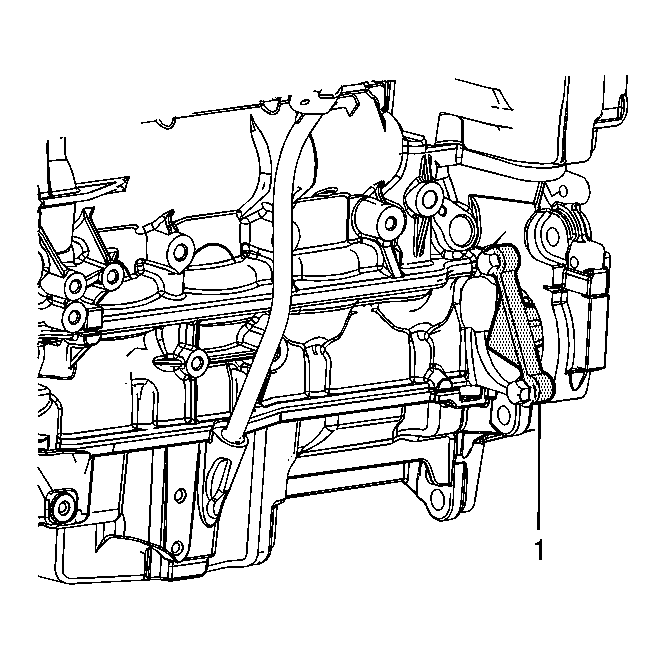

    4. Fig 2: Identifying Engine Flywheel Holding Tool
    GM1825675Courtesy of GENERAL MOTORS CORP.
  4. Remove the J 43653  (1) from the engine block. See Special Tools .
  5. Lower the vehicle.
  6. Install the starter motor. Refer to Starter Replacement .
  7. Install the engine drive belt. Refer to Drive Belt Replacement (With A/C)  or Drive Belt Replacement (Without A/C) .
