Drive Belt Replacement (Without A/C)

WARNING: This page is about a different variant/trim than selected.

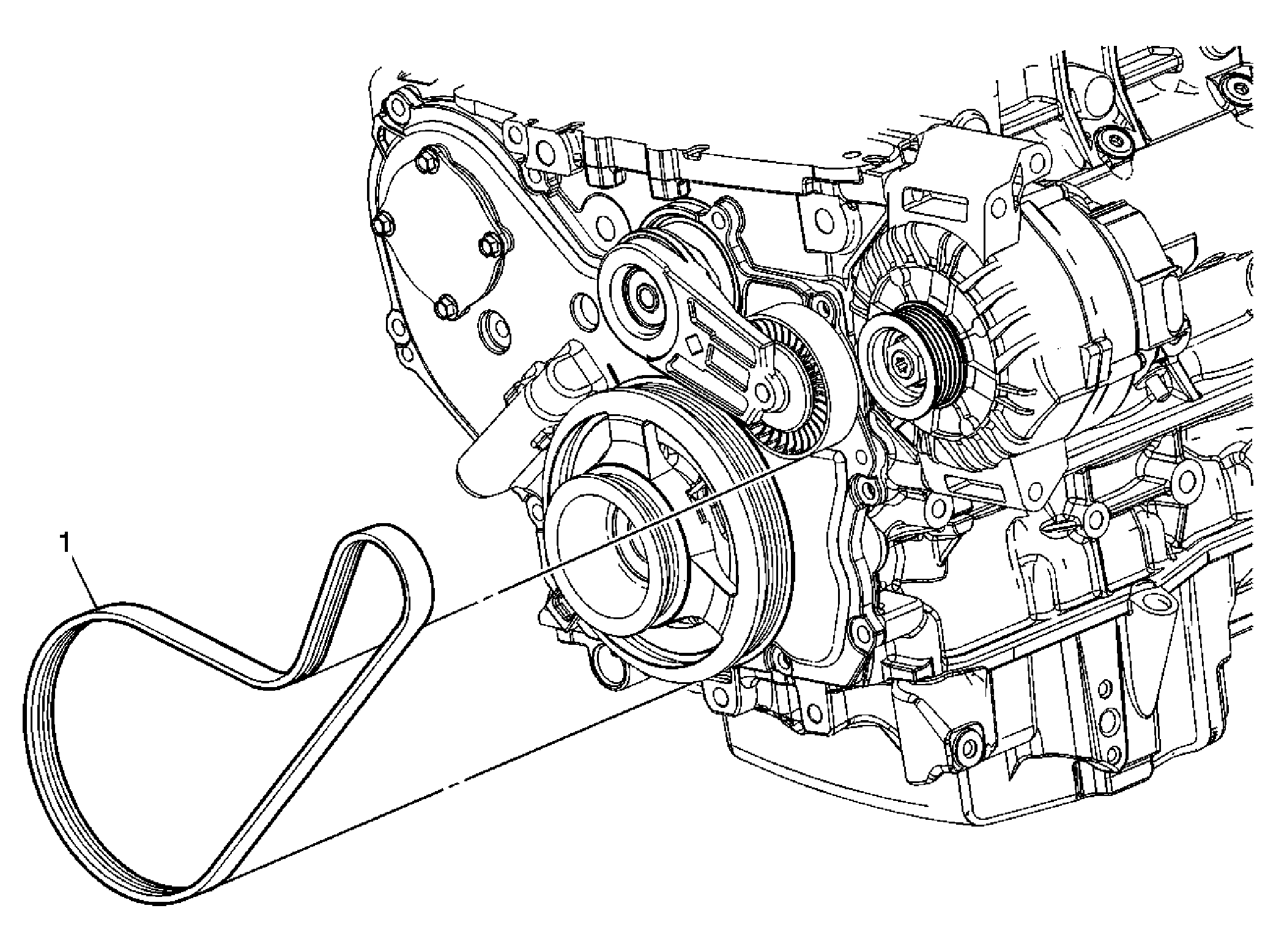

Fig 1: Identifying Drive Belt (Without A/C)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Remove the power steering pump drive belt. Refer to Power Steering Pump Belt Replacement . Lower the vehicle. Remove the air cleaner. Refer to Air Cleaner Assembly Replacement .
1	Belt, Accessory Drive

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
Remove the power steering pump drive belt. Refer to Power Steering Pump Belt Replacement .
Lower the vehicle.
Remove the air cleaner. Refer to Air Cleaner Assembly Replacement .

Belt, Accessory Drive
