Transmission Rear Mount Replacement

WARNING: This page is about a different variant/trim than selected.

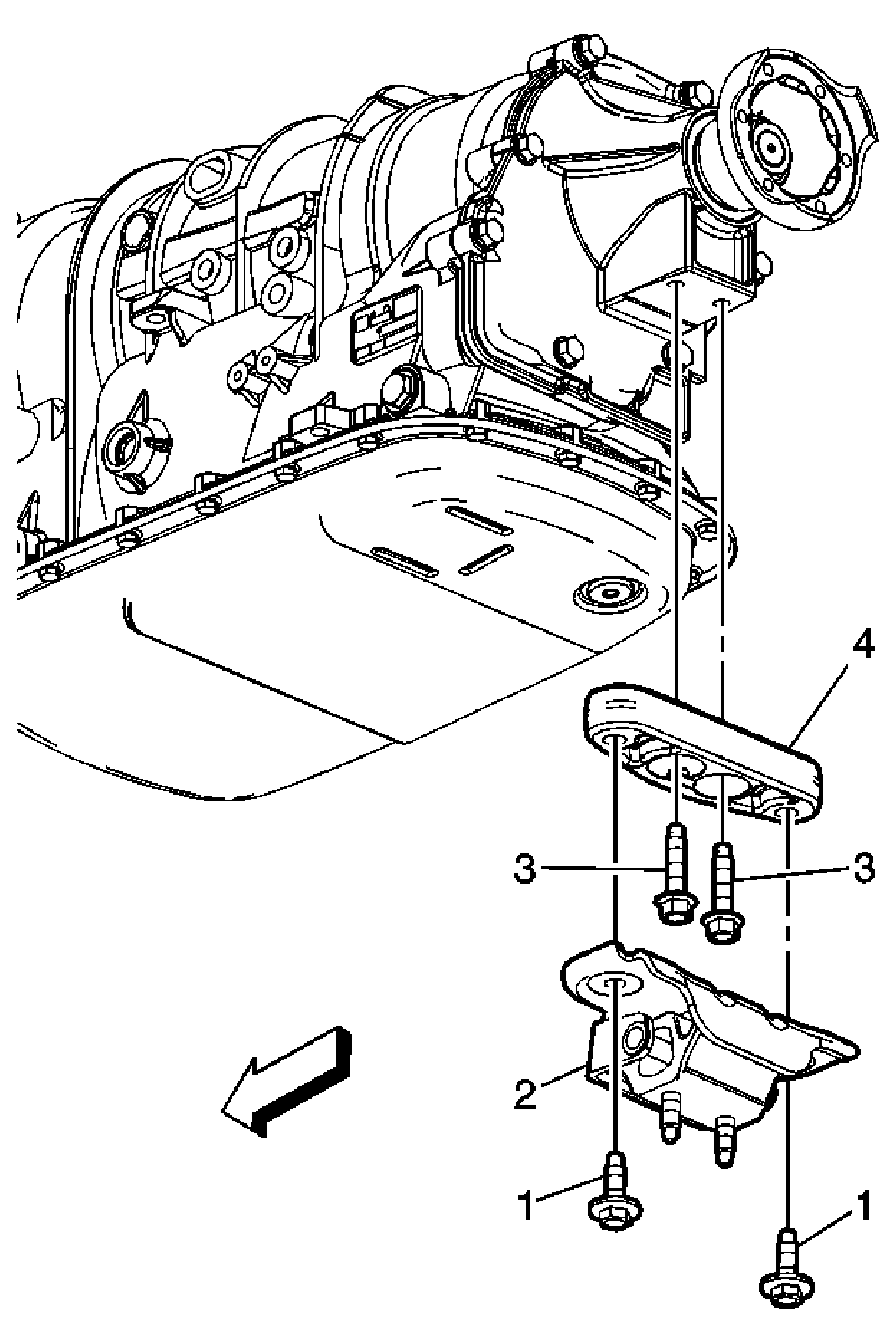

Fig 1: Identifying Rear Transmission Mount

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front floor closeout panel. Refer to Floor Panel Tunnel Panel Replacement - Front (Automatic Transmission) . Remove the floor panel tunnel rear panel. Refer to Floor Panel Tunnel Panel Replacement - Rear . Support the transmission. Remove the transmission support. Refer to Transmission Support Replacement (Automatic Transmission) .
1	Transmission Mount Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 55 N.m (41 lb ft)
2	Transmission Mount
3	Transmission Mount Adaptor Bolt (Qty: 4) Tighten: 55 N.m (41 lb ft)
4	Transmission Mount Adaptor
