Transmission Support Replacement (Automatic Transmission)

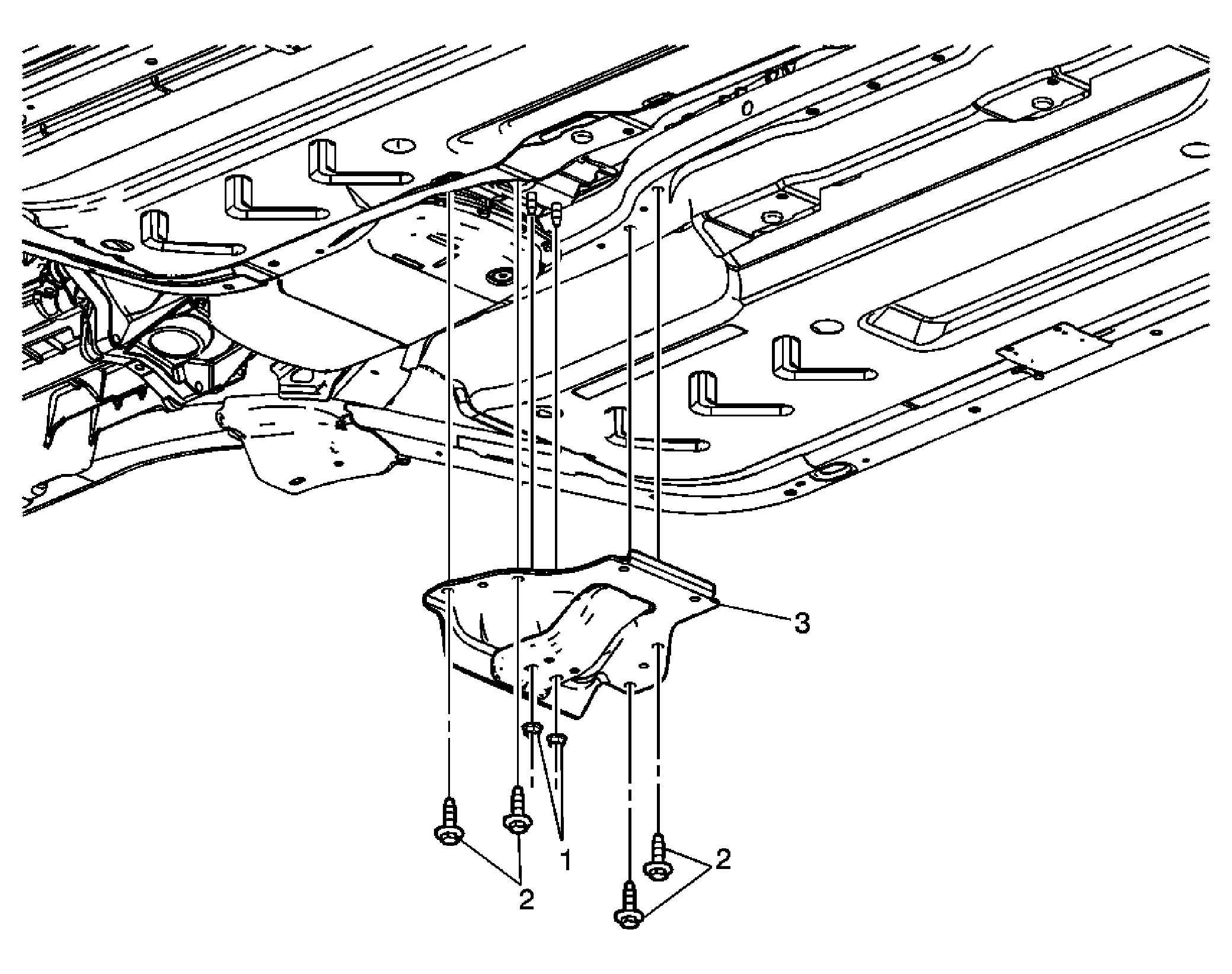

Fig 1: Identifying Transmission Support (A/T)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front floor closeout panel. Refer to Floor Panel Tunnel Panel Replacement - Front (Automatic Transmission) or Floor Panel Tunnel Panel Replacement - Front (Manual Transmission) . Remove the floor panel tunnel rear panel. Refer to Floor Panel Tunnel Panel Replacement - Rear . Support the transmission.
1	Transmission Mount Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 55 N.m (41 lb ft)
2	Transmission Support Bolt (Qty: 4) Tighten: 58 N.m (43 lb ft)
3	Transmission Support
