Radiator Air Lower Baffle and Deflector Replacement

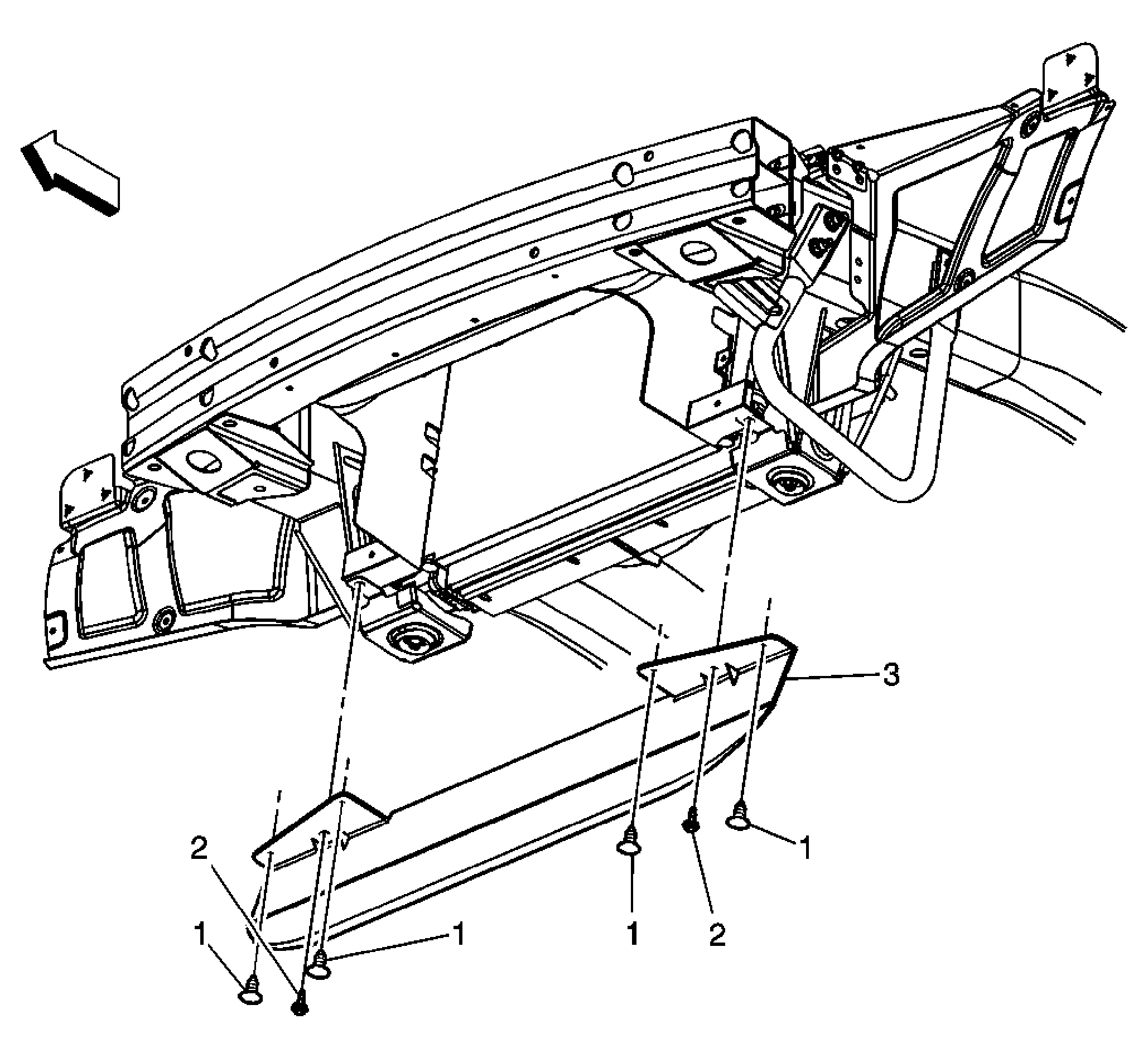

Fig 1: Identifying Radiator Air Lower Baffle & Deflector
GM1589244Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the radiator side air deflectors. Refer to Radiator Air Side Baffle and Deflector Replacement .
1 Radiator Air Deflector Push Pin - Front (Qty: 4)
2 Radiator Air Deflector Bolt, - Front (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  9 N.m (80 lb in)
3 Radiator Air Deflector Assembly - Front
