Radiator Air Side Baffle and Deflector Replacement

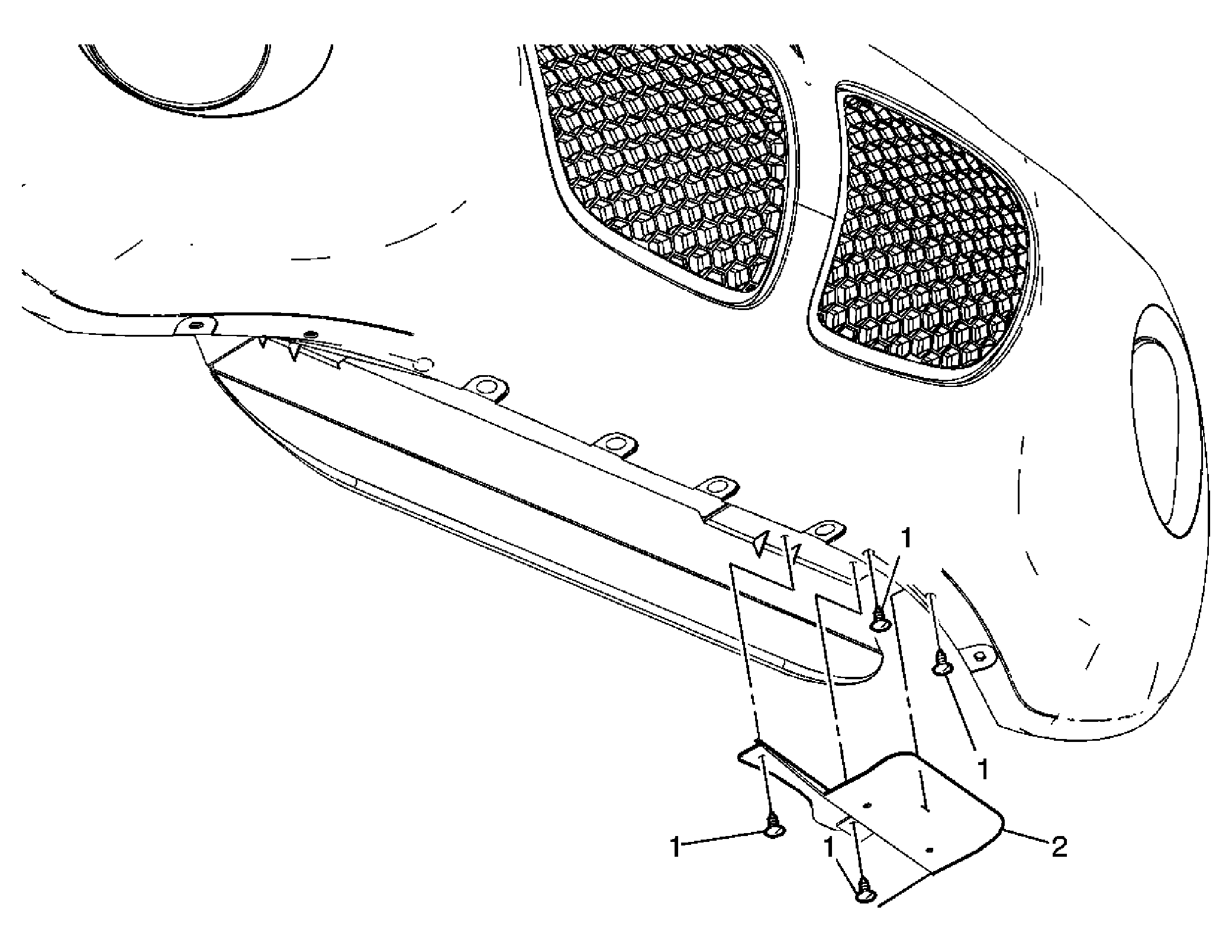

Fig 1: Identifying Radiator Air Side Baffle & Deflector
GM1589243Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Push Pin
2 Radiator Air Lower Side Seal Assembly
