Body Lock Pillar Trim Panel Replacement (Coupe)

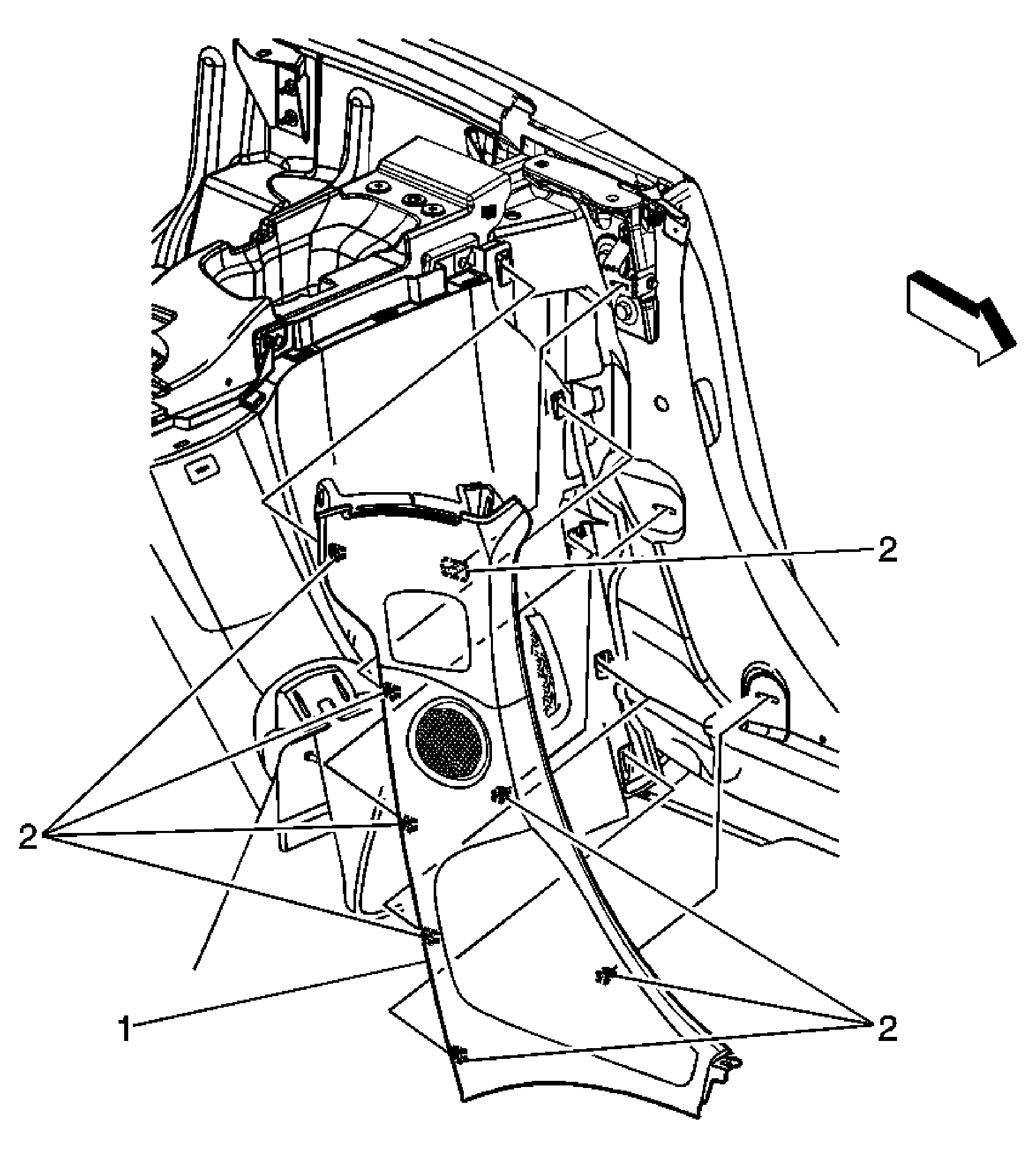

Fig 1: Identifying Body Lock Pillar Trim Panel (Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement (Coupe) . Remove the door sill plate. Refer to Door Sill Plate Replacement .
1	Body Lock Pillar Trim Panel Assembly Procedure Disconnect the electrical connectors. Transfer parts as necessary.
2	Body Lock Pillar Trim Panel Fastener (Qty: 8)

Callout

Component Name

Preliminary Procedures

Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement (Coupe) .
Remove the door sill plate. Refer to Door Sill Plate Replacement .

Body Lock Pillar Trim Panel Assembly

Procedure

Body Lock Pillar Trim Panel Fastener (Qty: 8)
