Rear Compartment Side Trim Panel Replacement (Coupe)

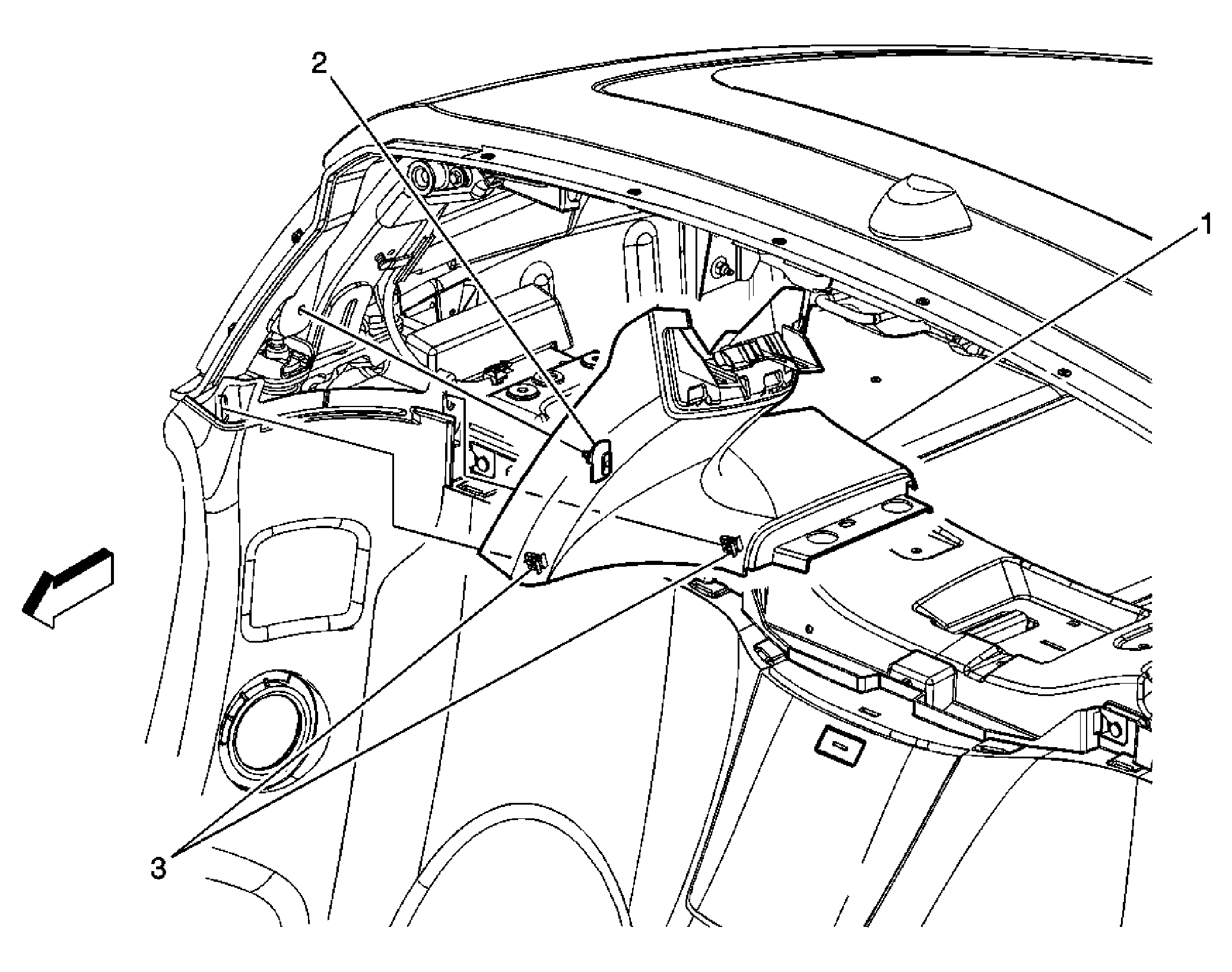

Fig 1: Identifying Rear Compartment Side Trim Panel (Coupe)
GM2185902Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the headlining rear trim panel. Refer to Headlining Rear Trim Panel Replacement (Coupe)
  2. Remove the rear window trim panel. Refer to Rear Compartment Front Trim Panel Replacement (Coupe) .
1 Rear Compartment Side Trim Panel Assembly
2 Rear Compartment Side Trim Panel Integral Retainer (Qty: 1)
3 Rear Compartment Side Trim Panel Integral Clip (Qty: 2)
