Stabilizer Shaft Replacement

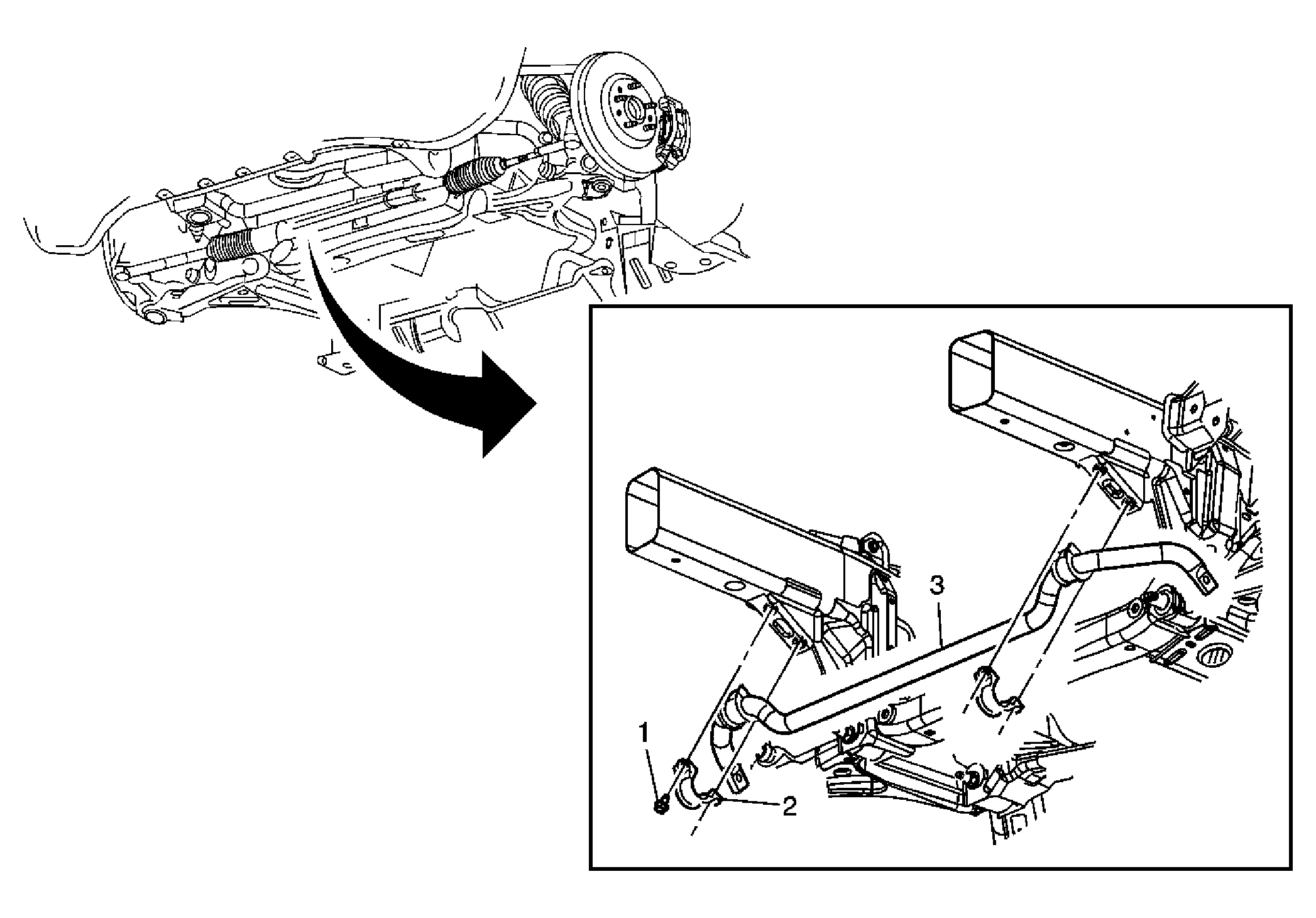

Fig 1: Stabilizer Shaft

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the stabilizer shaft from the stabilizer shaft link. Refer to Stabilizer Shaft Link Replacement .
1	Stabilizer Shaft Mounting Bolts (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 55 N.m (41 lb ft)
2	Stabilizer Shaft Mounting Bracket
3	Front Stabilizer Shaft Tip: Remove the insulators from the stabilizer shaft.
