Stabilizer Shaft Link Replacement

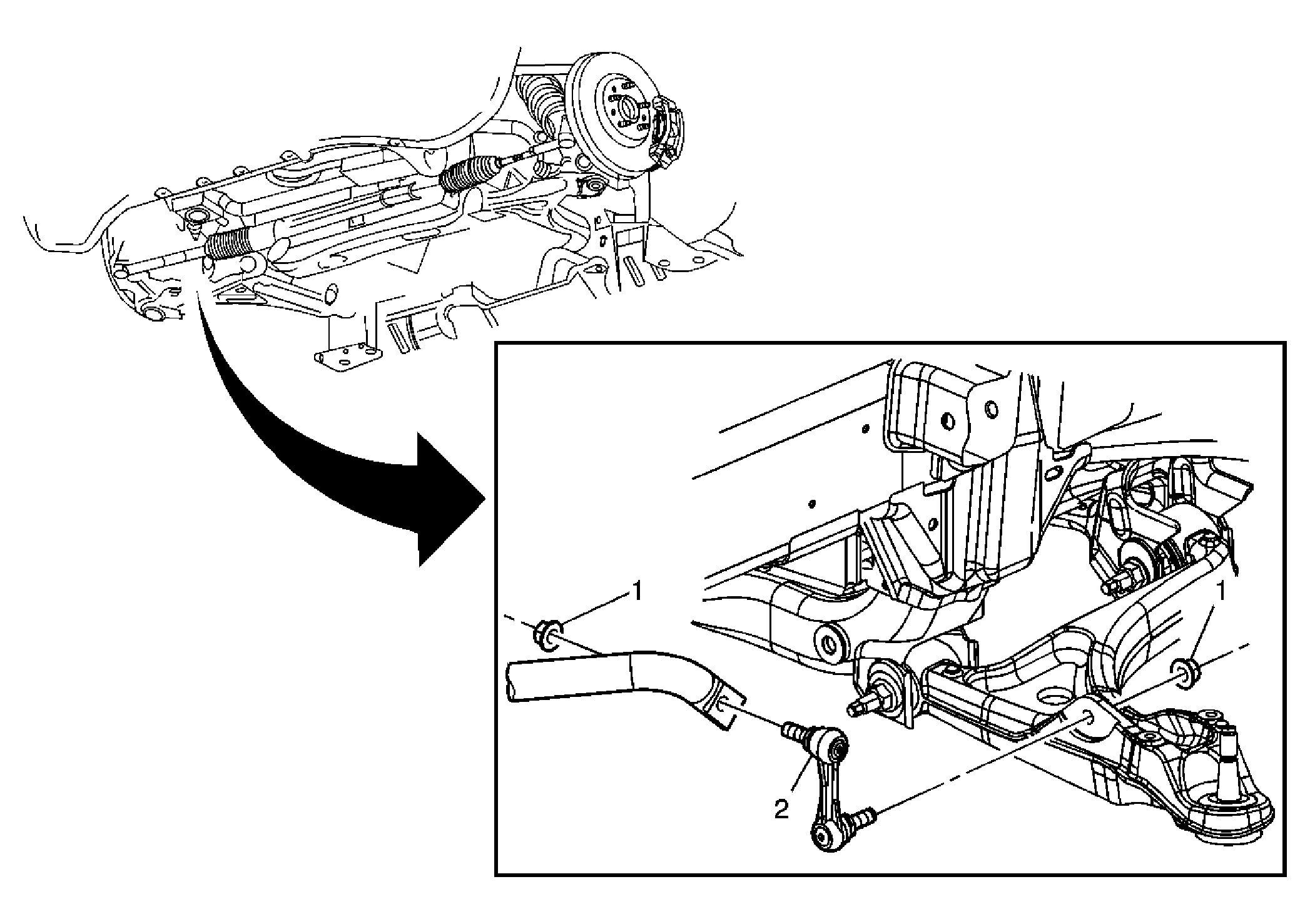

Fig 1: Stabilizer Shaft Link
GM1588760Courtesy of GENERAL MOTORS CORP.
Stabilizer Shaft Link Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the tires and wheels. Refer to Tire and Wheel Removal and Installation .
1 Nut, Stabilizer Shaft Link Retaining (Qty: 2)

Tighten:  72 N.m (53 lb ft)
2 Link, Stabilizer Shaft
