Installation Procedure

WARNING: This page is about a different variant/trim than selected.

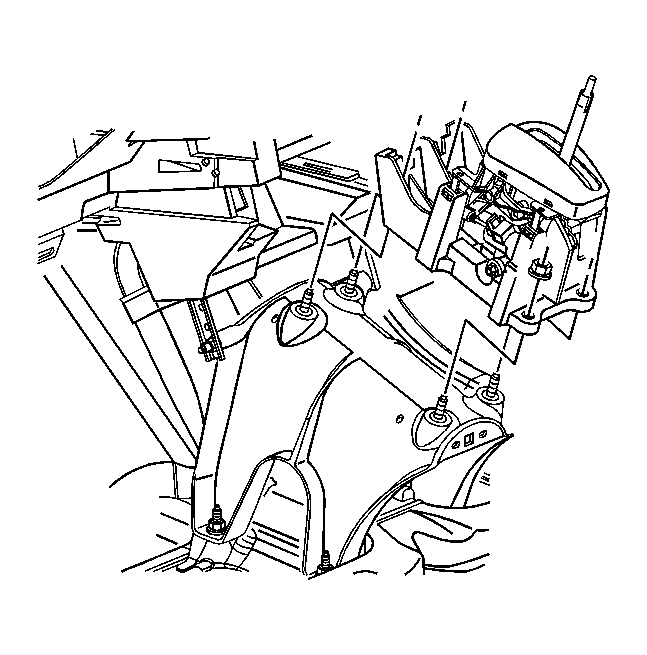

Fig 1: View Of Shift Control & Nuts
GM1412180Courtesy of GENERAL MOTORS CORP.
  1. Install the automatic transmission control.
    NOTE: Refer to Fastener Notice in the Preface section.
  2. Install the automatic transmission control nuts.

    Tighten  Tighten the nuts to 25 Nm(18 lb ft).

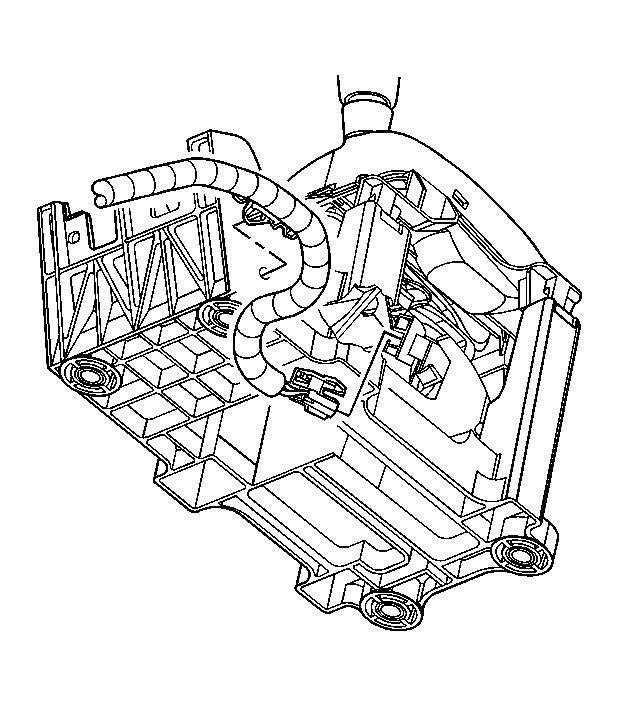

    Fig 2: Disconnecting/Connecting Electrical Connector
    GM1412179Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector.
    Fig 3: View Of Park Lock Cable
    GM1412177Courtesy of GENERAL MOTORS CORP.
  4. Install the park lock cable to the shift control. Refer to Park Lock Cable Replacement
    Fig 4: Control Cable & Control Assembly Lever
    GM1412174Courtesy of GENERAL MOTORS CORP.
  5. Install the range select lever cable to the automatic transmission control.
  6. Install the instrument panel storage compartment. Refer to Instrument Panel Storage Compartment Replacement in Instrument Panel, Gauges and Console.
  7. Install the console shift lever bezel. Refer to Console Shift Lever Bezel Replacement in Instrument Panel, Gauges and Console.
  8. If the shift control knob was previously removed. Refer to *******Floor Shift Control Knob Replacement.
