Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the shift control cable to the vehicle through the cowl and the carpet.
  2. Install the shift control cable grommet in the cowl.
    3. Fig 1: Control Cable & Control Assembly Lever
    GM1412174Courtesy of GENERAL MOTORS CORP.
  3. Install the shift control cable to the automatic transmission shift control.
  4. Install the left and right console trim panels. Refer to Console Trim Panel Replacement - Left and Console Trim Panel Replacement - Right in Instrument Panel, Gages and Console.

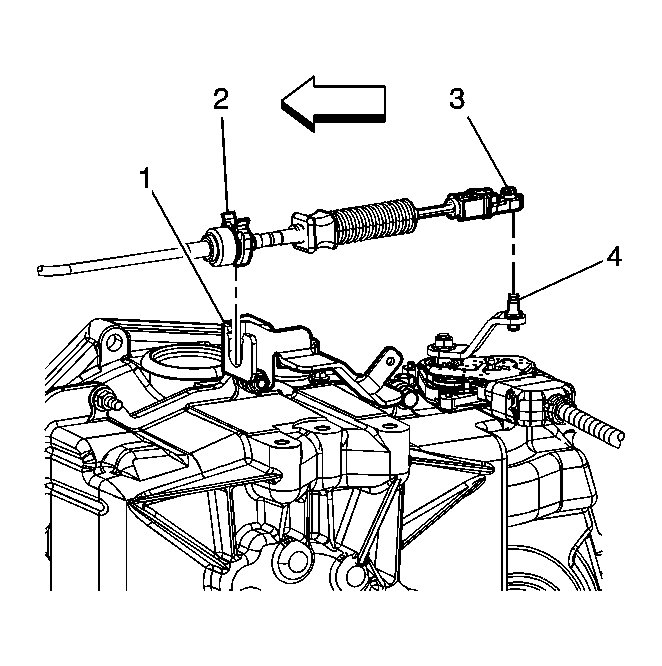

    5. Fig 2: Disconnecting/Connecting Shift Control Cable At Range Select Lever & Bracket
    GM1547449Courtesy of GENERAL MOTORS CORP.
  5. Install the shift control cable and retaining clip (2) to the shift control cable bracket (1).
  6. Install the shift control cable (3) to the range select lever (4).
  7. Adjust the cable.
    1. Place the shift lever in N (Neutral). Rotate the selector shaft clockwise from P (Park) through R (Reverse) into N (Neutral).
    2. With the shift control assembly in N (Neutral) lift the cable connector locking clip up.
    3. Push the clip on the cable connector until fully seated and flush with cable body.
