Console Trim Panel Replacement - Left

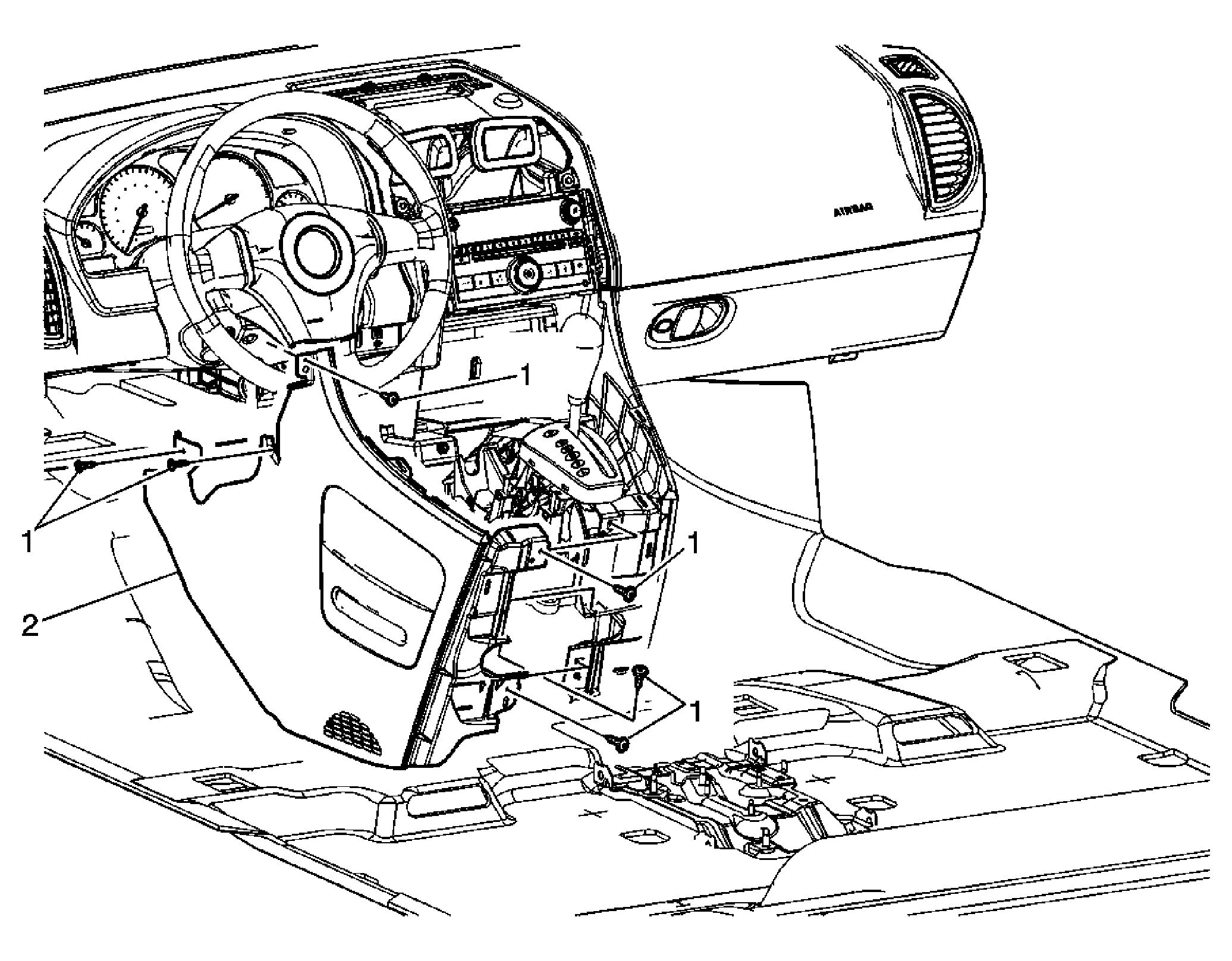

Fig 1: Console Trim Panel And Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the steering column filler panel. Refer to Steering Column Filler Replacement . Remove the instrument panel center trim bezel. Refer to Trim Bezel Replacement - Center . Remove the console rear trim plate. Refer to Trim Plate Replacement - Console .
1	Console Left Side Trim Panel Screws (Qty: 6) Tighten: 2 N.m (18 lb in)
2	Console Trim Panel Assembly - Left

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the steering column filler panel. Refer to Steering Column Filler Replacement .
Remove the instrument panel center trim bezel. Refer to Trim Bezel Replacement - Center .
Remove the console rear trim plate. Refer to Trim Plate Replacement - Console .

Console Left Side Trim Panel Screws (Qty: 6)

Tighten: 2 N.m (18 lb in)

Console Trim Panel Assembly - Left
