Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Pushing Black Tab To Release End Fitting Using A Screwdriver
    GM988254Courtesy of GENERAL MOTORS CORP.
  1. Install a new end fitting on the park lock cable.
    2. Fig 2: View Of Park Lock Cable Assembly & Ignition Module
    GM944454Courtesy of GENERAL MOTORS CORP.
  2. Install the park lock cable onto the ignition module.
    3. Fig 3: Park Lock Cable Clip & Control Assembly
    GM944473Courtesy of GENERAL MOTORS CORP.
  3. Install the park lock cable onto the shift control, using a new clip.

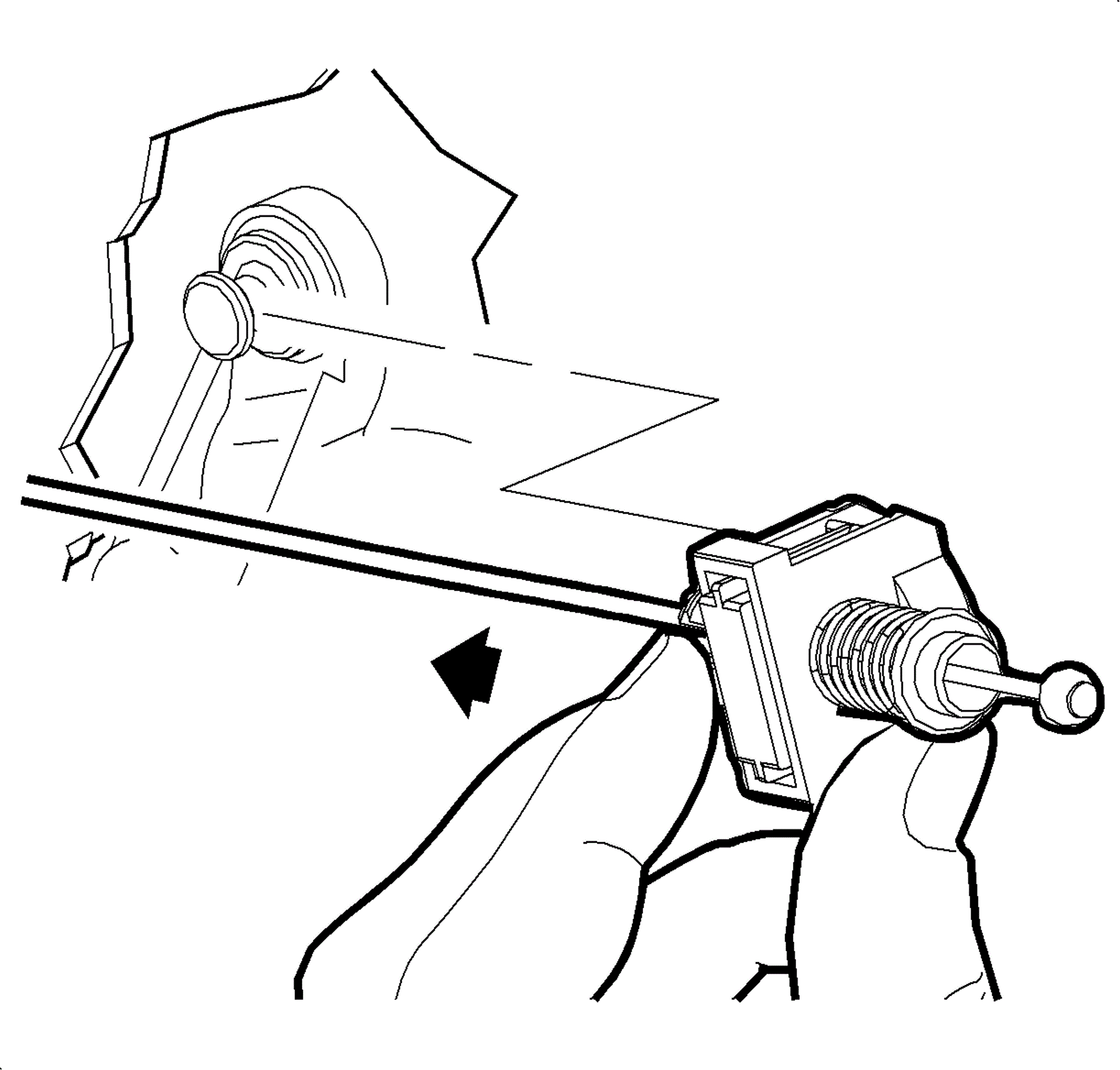

    4. Fig 4: Park Lock Cable End Terminal & Control Assembly
    GM945262Courtesy of GENERAL MOTORS CORP.
  4. Install the park lock cable end terminal onto the park lock lever by aligning the cable fitting to the park lock lever pin and pushing forward. When installing, be sure not to install the cable end fitting on an angle or push down on the cable portion as this may cause cable to misadjust.

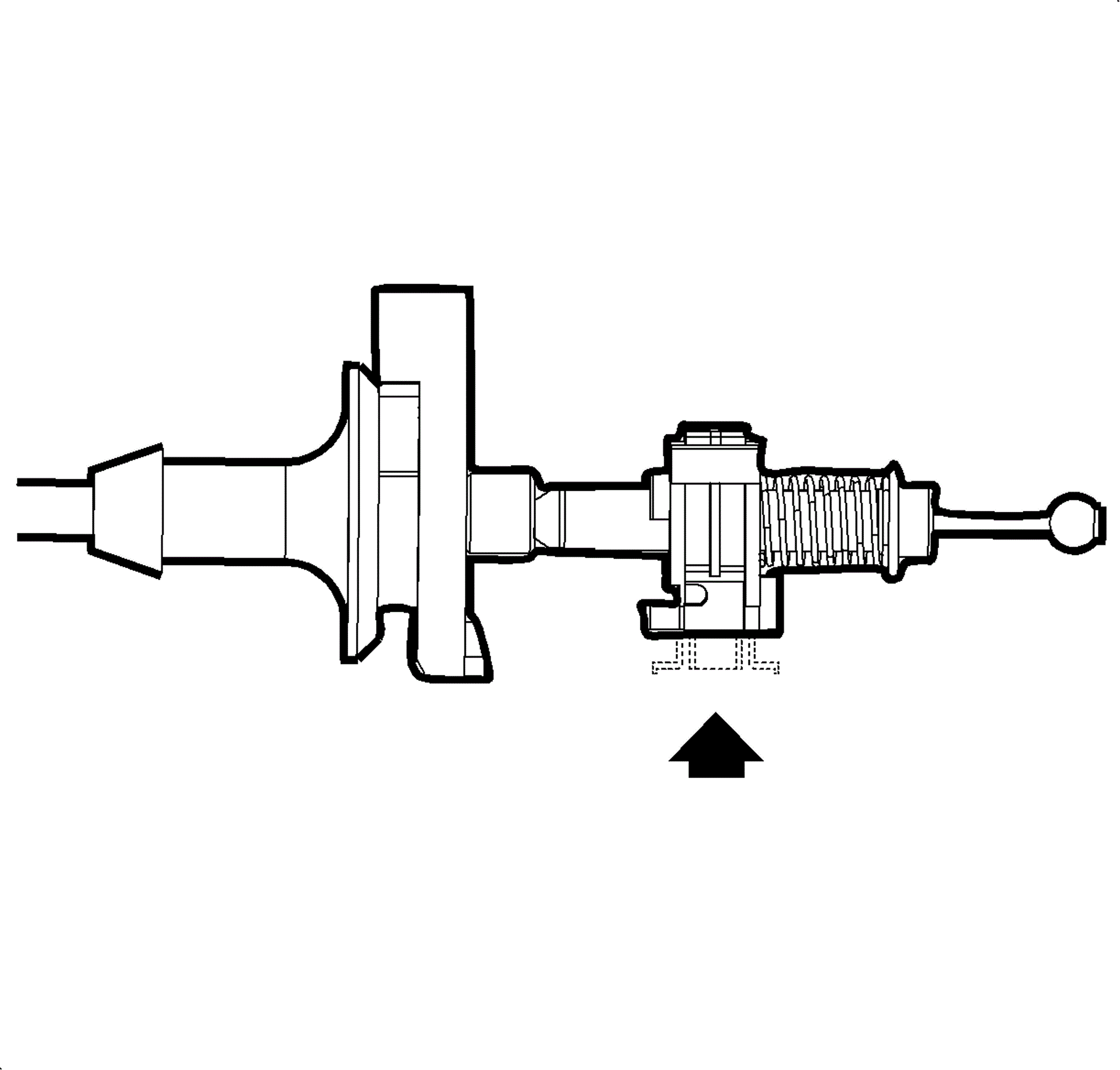

    5. Fig 5: Lock Cylinder Bezel & Steering Column Shroud
    GM944424Courtesy of GENERAL MOTORS CORP.
  5. With the cable adjuster in the unlocked position, verify the shift control is in the park (P) position. Lock the adjuster piece into place by pushing in on the tab, then check the cable adjustment as follows:
    1. Set the parking brake.
    2. With the ignition key removed from ignition lock cylinder and control shift lever in the park (P) position, depress the control shift lever button and attempt to move control shift lever out of park (P) position.
      • If control shift lever can be shifted out of park (P) position, perform step 5 over again ensuring that the cable adjuster lock is operating properly.
      • If control shift lever cannot be shifted out of park (P) position, proceed to next step.
    3. Insert the ignition key into the ignition lock cylinder assembly and turn to RUN position.
    4. Depress the brake pedal and depress the control shift lever button and move control shift lever out of park (P) position.
    5. Release the brake pedal. With the control shift lever out of the park (P) position, attempt to turn ignition to LOCK position. Ensure the ignition key is pushed inward toward the steering column when it is rotated toward LOCK position.
      • If ignition key can be turned to LOCK position with control shift lever out of park (P) position, return to the beginning of step 5 and check the park lock cable adjustment.
      • If the ignition key cannot be turned to LOCK position with the control shift lever out of the park (P) position, park lock cable is properly adjusted. Proceed to next step.
    6. Depress the control shift lever button. Move control shift lever to park (P) position.
    7. Turn the ignition key to ON position and then to OFF position.
    8. Ensure ignition key is removable.
      • If ignition key can be removed from ignition lock cylinder assembly, proceed to next step.
      • If ignition key cannot be removed from ignition lock assembly, return to the beginning of step 5 and check the park lock cable adjustment.
    9. Turn the ignition key to LOCK position.
    10. Remove the ignition key from the ignition lock cylinder assembly.
    6. Fig 6: View Of Steering Column Upper & Lower Shrouds Panels
    GM898184Courtesy of GENERAL MOTORS CORP.
  6. Install the shroud fasteners and install the steering column upper and lower shroud panels.
  7. Install the lock cylinder bezel onto the steering column shroud.
  8. Install the left console trim panel. Refer to Console Trim Panel Replacement - Left in Instrument Panel, Gages and Console.
  9. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 8 in SIR.
