Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    NOTE: After cylinder block, head, or lifter replacement, it will be necessary to allow the engine to idle for 3-5 minutes. If the lifters are noisy, warm the engine up at less than 200 RPM. After the coolant temperature has reached approximately 85°C (185°F), cycle the engine RPM from idle to 300 RPM for approximately 10 minutes or drive the vehicle 8 kilometers (5 miles) to purge the air. If the air cannot be purged, the faulty lifters will have to be replaced.
    NOTE: Lifters that are pumped up may cause PCM misfire codes to set. Continue to operate the engine until the lifters bleed down. Using the scan tool, clear the codes and malfunction history.
    NOTE: If a valve seal is removed after it has been installed, it must be discarded. The valve stem lock groove will cut the seal's lip during removal. Use extreme care when installing valve retainers and do not damage the valve stems.
    Fig 1: Inspecting Valve Stem, Seal & Guide
    GM896343Courtesy of GENERAL MOTORS CORP.
  1. Allow the engine to idle.

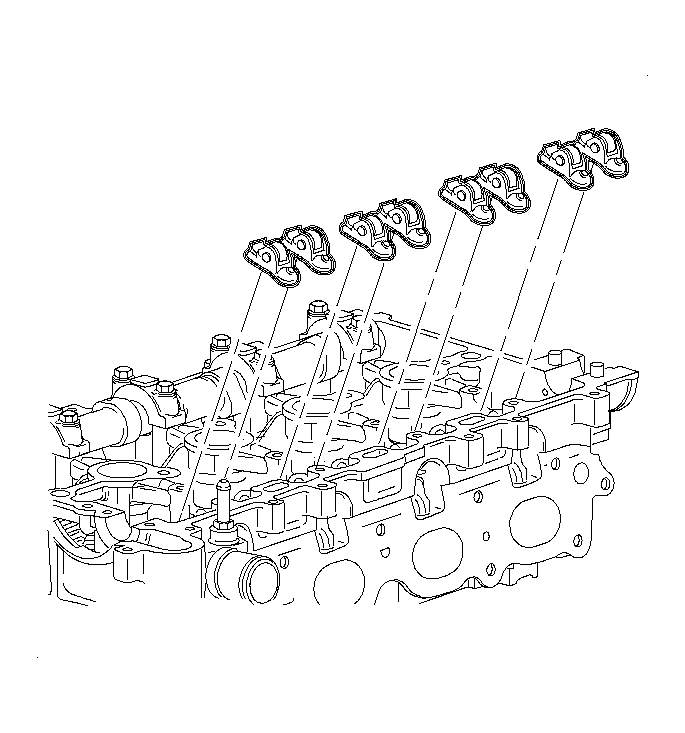

    2. Fig 2: View Of Rocker Arms
    GM895216Courtesy of GENERAL MOTORS CORP.
  2. Ensure install rocker arms are in their proper location, followers.
    3. Fig 3: Inspecting Camshaft Journals & Sprocket
    GM897666Courtesy of GENERAL MOTORS CORP.
  3. Lubricate the camshaft bearing journals with clean engine oil and install both camshafts.
  4. When installing the camshafts, align to position camshaft slot in line with the notch on the sprockets.

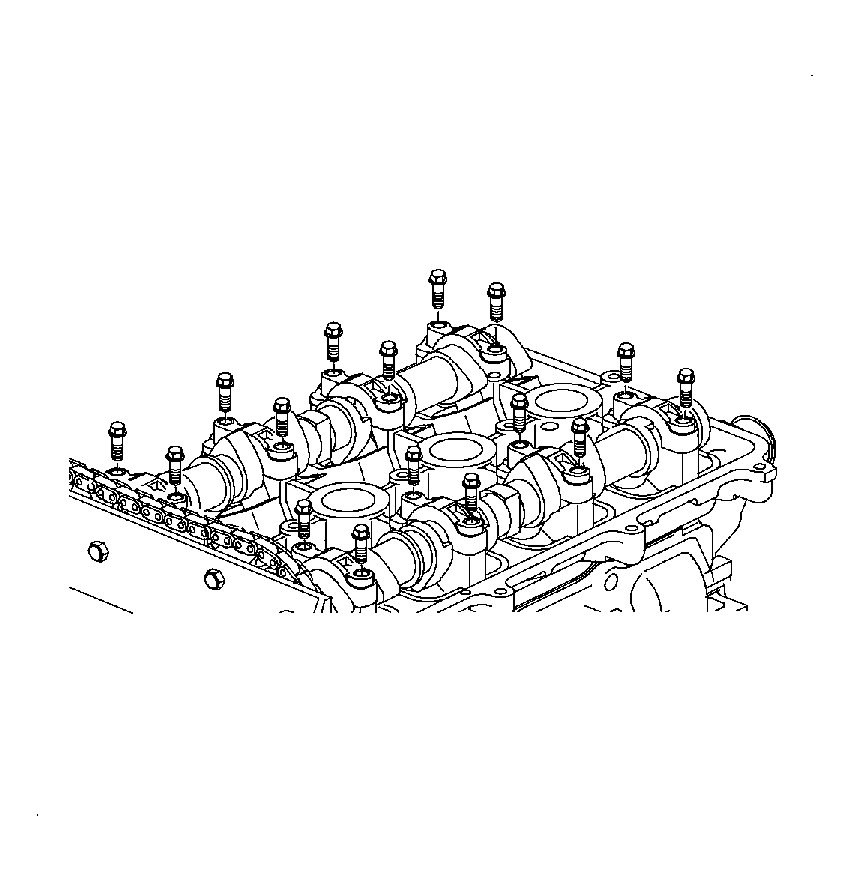

    5. Fig 4: Removing/Installing Camshaft Bearing Cap Bolts
    GM876853Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install all caps except the front caps and rear intake camshaft cap, if serviced. Tighten down the bearing caps uniformly.

    Tighten:  Tighten the camshaft cap bolts to 10 N.m (89 lb in).

    6. Fig 5: Camshaft Alignment Slots
    GM894997Courtesy of GENERAL MOTORS CORP.
    IMPORTANT:
    • Ensure that the alignment slots are correctly aligned with the notches in the camshaft sprockets before final tightening is applied.
    • Verify the timing chain is properly positioned on the fixed guide or guide damage will occur.
    • Verify the camshafts are properly timed as outlined in this section prior to starting the engine.
  6. Verify camshaft timing.
    7. Fig 6: Rotating Camshafts With 24 mm Open End Wrench To Align The Camshaft & Sprockets
    GM952057Courtesy of GENERAL MOTORS CORP.
  7. Slide the camshaft sprockets and timing chain on the guide pins toward the camshafts. Rotate the camshafts with a 24 mm open end wrench to properly align the camshaft and sprockets.
  8. Install new camshaft sprocket bolt and tighten. This will pull the camshaft sprockets into the cams. Hold the camshaft with the 24 mm open end wrench during tightening.

    Tighten:  Tighten the camshaft sprocket bolts to 85 N.m (63 lb ft) +30 degrees.

  9. Remove the J 43655  . See Special Tools .
  10. Install the front camshaft caps.

    Tighten:  Tighten the camshaft bearing cap bolts to 10 N.m (89 lb in).

    11. IMPORTANT: Apply Permatex® Threadlocker Blue P/N 21485277 to the upper timing chain guide bolts.
    Fig 7: Removing/Installing Upper Timing Chain Guide
    GM894944Courtesy of GENERAL MOTORS CORP.
  11. Install the upper timing chain guide and bolts.

    Tighten:  Tighten the timing chain guide upper bolts to 10 N.m (89 lb in).

    12. Fig 8: Applying LOCTITE 242(R) & Installing Upper Timing Chain Guide Bolts
    GM895000Courtesy of GENERAL MOTORS CORP.
  12. Install the rear intake camshaft bearing cap.
    13. IMPORTANT: Apply sealant GM P/N 12378521 (Canadian P/N 88901148) to the cylinder head near the rear intake cap as shown.
  13. Install the rear intake camshaft bearing cap.

    Tighten:  Tighten the intake camshaft rear cap to 25 N.m (18 lb ft).

  14. Install the power steering block-off plate.

    Tighten:  Tighten the power steering block-off plate to 25 N.m (18 lb ft).

    15. Fig 9: Disconnecting/Connecting Ground Strap On The Camshaft Cover Assembly
    GM895199Courtesy of GENERAL MOTORS CORP.
  15. Visually inspect the camshaft cover gasket for signs of leakage. The camshaft cover gasket is reusable if not damaged.
  16. Assemble the camshaft cover and gasket. Use care to make sure the gasket is located in the retaining groove on the camshaft cover.
  17. Install the cover on the cylinder head and hand-tighten the bolts.

    Tighten:  Tighten the camshaft cover bolts to 10 N.m (89 lb in).

    18. Fig 10: View Of Fuel Feed Pipe Fastener
    GM854304Courtesy of GENERAL MOTORS CORP.
  18. Reposition the fuel line assembly.
    19. NOTE: An open-end wrench must be used to support the fuel line to rail connection during loosening/tightening to avoid damaging the fuel rail assembly.
  19. Install the transfer line fitting at the fuel-to-fuel rail.

    Tighten:  Tighten the transfer line fitting-to-fuel rail to 10 N.m (89 lb in).

  20. Connect the fuel rail bracket and bolt to the cylinder head.

    Tighten:  Tighten the fuel line transfer bolt to 10 N.m (89 lb in).

    21. Fig 11: Disconnecting/Connecting Ground Strap On The Camshaft Cover Assembly
    GM895199Courtesy of GENERAL MOTORS CORP.
  21. Connect the ground strap to the camshaft cover assembly.

    Tighten:  Tighten the camshaft cover ground strap bolts to 10 N.m (89 lb in).

  22. Connect the degas hose and clamp to the cylinder head.
  23. Connect the degas hose bracket and bolt to the cylinder head.

    Tighten:  Tighten the coolant pipe bracket bolt to 10 N.m (89 lb in).

    24. Fig 12: View Of Spark Plugs
    GM895073Courtesy of GENERAL MOTORS CORP.
  24. Install the spark plugs.

    Tighten:  Tighten the spark plugs to 20 N.m (15 lb ft).

    25. Fig 13: View Of Ignition Module Assembly With Spark Plug Boots
    GM894939Courtesy of GENERAL MOTORS CORP.
  25. Install the ignition module assembly to cam cover and hand tighten the retaining bolts.

    Tighten:  Tighten the ignition module-to-camshaft cover bolts to 8 N.m (71 lb in).

    26. Fig 14: Positioning Outlet Resonator/Duct Assembly
    GM897621Courtesy of GENERAL MOTORS CORP.
  26. Position the outlet resonator/duct assembly into position.
  27. Connect the PVC fresh air vent hose assembly.
  28. Tighten the clamp at the throttle body assembly.
  29. Position the outlet resonator/duct assembly up with the support bracket and install the push-pin.
  30. Tighten the clamp at the air cleaner assembly.
  31. Connect the intake air temperature (IAT) sensor connector.
  32. Connect the negative battery cable.

    Tighten:  Tighten the battery terminal bolt to 17 N.m (13 lb ft).
