Special Tools

WARNING: This page is about a different variant/trim than selected.

Special Tools

Illustration	Tool Number/Description
Courtesy of GENERAL MOTORS CORP.	EN 46745 Piston Pin Clip Remover/Installer
Courtesy of GENERAL MOTORS CORP.	J 7872 Magnetic Base Dial Indicator Set
Courtesy of GENERAL MOTORS CORP.	J 8037 Ring Compressor
Courtesy of GENERAL MOTORS CORP.	J 8062 Valve Spring Compressor Head Off
Courtesy of GENERAL MOTORS CORP.	J 8087 Cylinder Bore Gage
Courtesy of GENERAL MOTORS CORP.	J 9666 Valve Spring Tester
Courtesy of GENERAL MOTORS CORP.	J 28410 Gasket Remover
Courtesy of GENERAL MOTORS CORP.	J 28428-E High Intensity Black Light Kit
Courtesy of GENERAL MOTORS CORP.	J 35268-A Camshaft/Front Main Seal Installer
Courtesy of GENERAL MOTORS CORP.	J 35667-A Cylinder Head Leadkdown Tester
Courtesy of GENERAL MOTORS CORP.	J 35749 Oil Sensor Socket - 1 1/16 in
Courtesy of GENERAL MOTORS CORP.	J 36017 Valve Guide Seal Remover
Courtesy of GENERAL MOTORS CORP.	J 36346 Fascia Retainer Remover
Courtesy of GENERAL MOTORS CORP.	J 38122-A Harmonic Balancer Holder
Courtesy of GENERAL MOTORS CORP.	J 38188 Cylinder Head Broken Bolt Extractor Kit
Courtesy of GENERAL MOTORS CORP.	J 39914 Serpentine Belt Tensioner Unloader

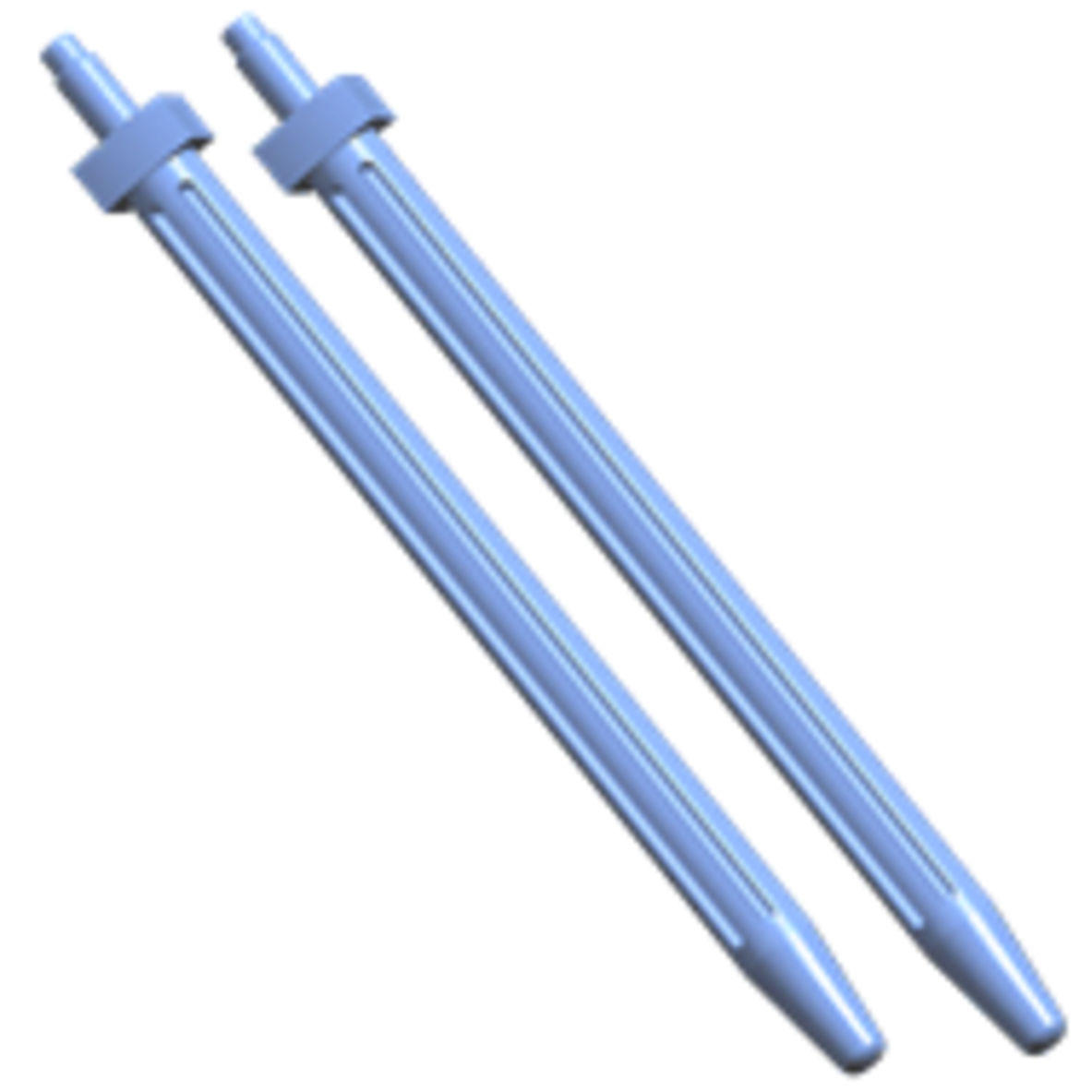

Courtesy of GENERAL MOTORS CORP.	J 41742 Connecting Rod Guide Pin
Courtesy of GENERAL MOTORS CORP.	J 42067 Rear Main Seal Installer
Courtesy of GENERAL MOTORS CORP.	J 42385-850 Thread Repair Kit
Courtesy of GENERAL MOTORS CORP.	J 43405 Engine Support Fixture Adapter
Courtesy of GENERAL MOTORS CORP.	J 43650 Balance Shaft Bearing Remover/Installer
Courtesy of GENERAL MOTORS CORP.	J 43653 Flywheel Holding Tool
Courtesy of GENERAL MOTORS CORP.	J 43654 Piston Pin Clip Remover/Installer
Courtesy of GENERAL MOTORS CORP.	J 43655 Camshaft Sprocket Holding Tool
Courtesy of GENERAL MOTORS CORP.	J 43828 Ball Joint Separator
Courtesy of GENERAL MOTORS CORP.	J 43953 Piston Ring Compressor
Courtesy of GENERAL MOTORS CORP.	J 43963 Valve Spring Compressor
Courtesy of GENERAL MOTORS CORP.	J 43966 Connecting Rod Guide
Courtesy of GENERAL MOTORS CORP.	J 44811 Accessory Belt Tensioner Unloader
Courtesy of GENERAL MOTORS CORP.	J 44887 Oil Filter Wrench
Courtesy of GENERAL MOTORS CORP.	J 44953 Oil Pressure Fitting
Courtesy of GENERAL MOTORS CORP.	J 45027 Tensioner Tool
Courtesy of GENERAL MOTORS CORP.	J 45059 Angle Meter
Courtesy of GENERAL MOTORS CORP.	J 45299 Engine Pre-Luber
Courtesy of GENERAL MOTORS CORP.	J 45341 Rear Wheel Drive Shaft Removal Tool
Courtesy of GENERAL MOTORS CORP.	SA 9105E Engine Support Fixture (3-Bar)
Courtesy of GENERAL MOTORS CORP.	SA 91100C Tie Rod Separator
Courtesy of GENERAL MOTORS CORP.	SA 9127E Gauge Bar Set
Courtesy of GENERAL MOTORS CORP.	SA 9127E-7 Fuel Pressure Flow Adapter
Courtesy of GENERAL MOTORS CORP.	SA 9805E Fuel Line Separator
