Tools Required

J 45059  Angle Meter. See Special Tools .

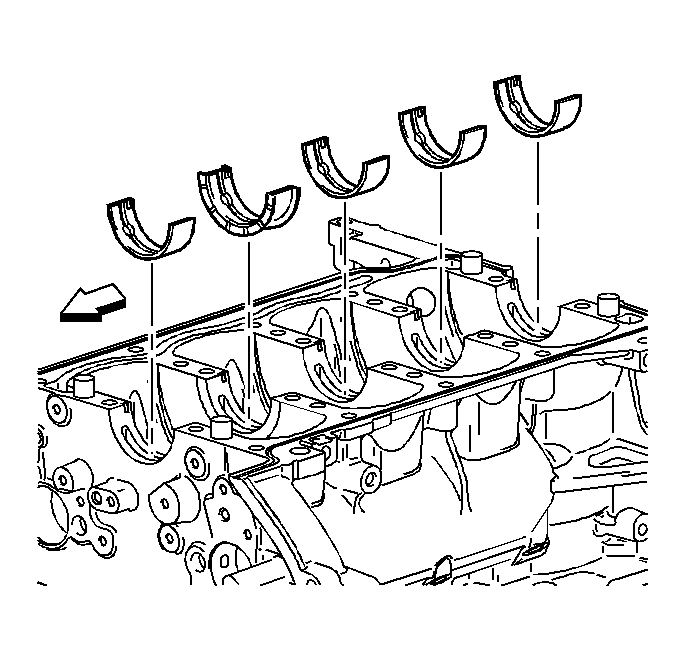

Fig 1: View Of Crankshaft Bearing Inserts
Courtesy of GENERAL MOTORS CORP.
1. Install the upper crankshaft bearings and lubricate bearing surfaces with engine oil.

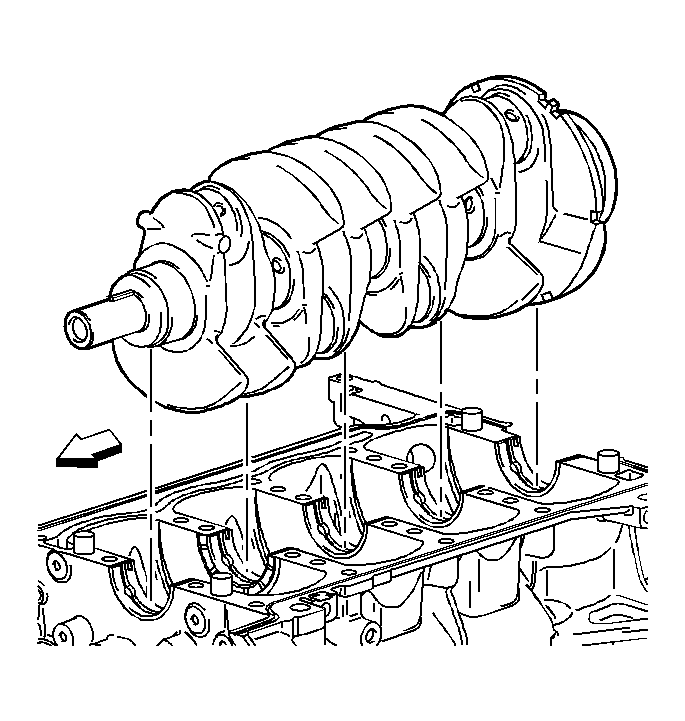

Fig 2: View Of Crankshaft Journals
Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Crankshaft Bearing Inserts
Courtesy of GENERAL MOTORS CORP.
2. Install the crankshaft on the journals.
3. Install the lower bearing halves, without grooves, into the lower crankcase. Apply oil to bearing surfaces.
Fig 4: Applying Sealer To Surfaces Of Engine Block To Bedplate Mating Surfaces
Courtesy of GENERAL MOTORS CORP.
4. Apply sealer GM P/N 12378521 (Canadian P/N 88901148) to the surfaces of the engine block to bedplate mating surfaces.
Fig 5: View Of Upper & Lower Crankcase W/Bolts
Courtesy of GENERAL MOTORS CORP.
5. Install the lower crankcase. Tap gently into place with a suitable tool if necessary. Ensure it is aligned properly on the dowels.
Fig 6: Identifying Crankshaft Bearing Bolt Tightening Sequence
Courtesy of GENERAL MOTORS CORP.
NOTE: Refer to Fastener Notice in Cautions and Notices.
6. Install the NEW crankshaft bearing bolts in sequence finger tight.
   1. Tighten the crankshaft bearing bolts in sequence.

      Tighten:  Tighten the crankshaft bearing bolts to 20 N.m (15 lb ft).

   2. Tighten the crankshaft bearing bolts in sequence.

      Tighten:  Tighten the crankshaft bearing bolts 70 degrees using J 45059  . See Special Tools .

Fig 7: Lower Crankcase Perimeter Bolt Tightening Sequence
Courtesy of GENERAL MOTORS CORP.
7. Tighten the lower crankcase perimeter bolts in sequence.

   Tighten:  Tighten the lower crankcase perimeter bolts to 25 N.m (18 lb ft).
