Tools Required

WARNING: This page is about a different variant/trim than selected.

J 42067  Rear Crankshaft Seal Installer. See Special Tools .

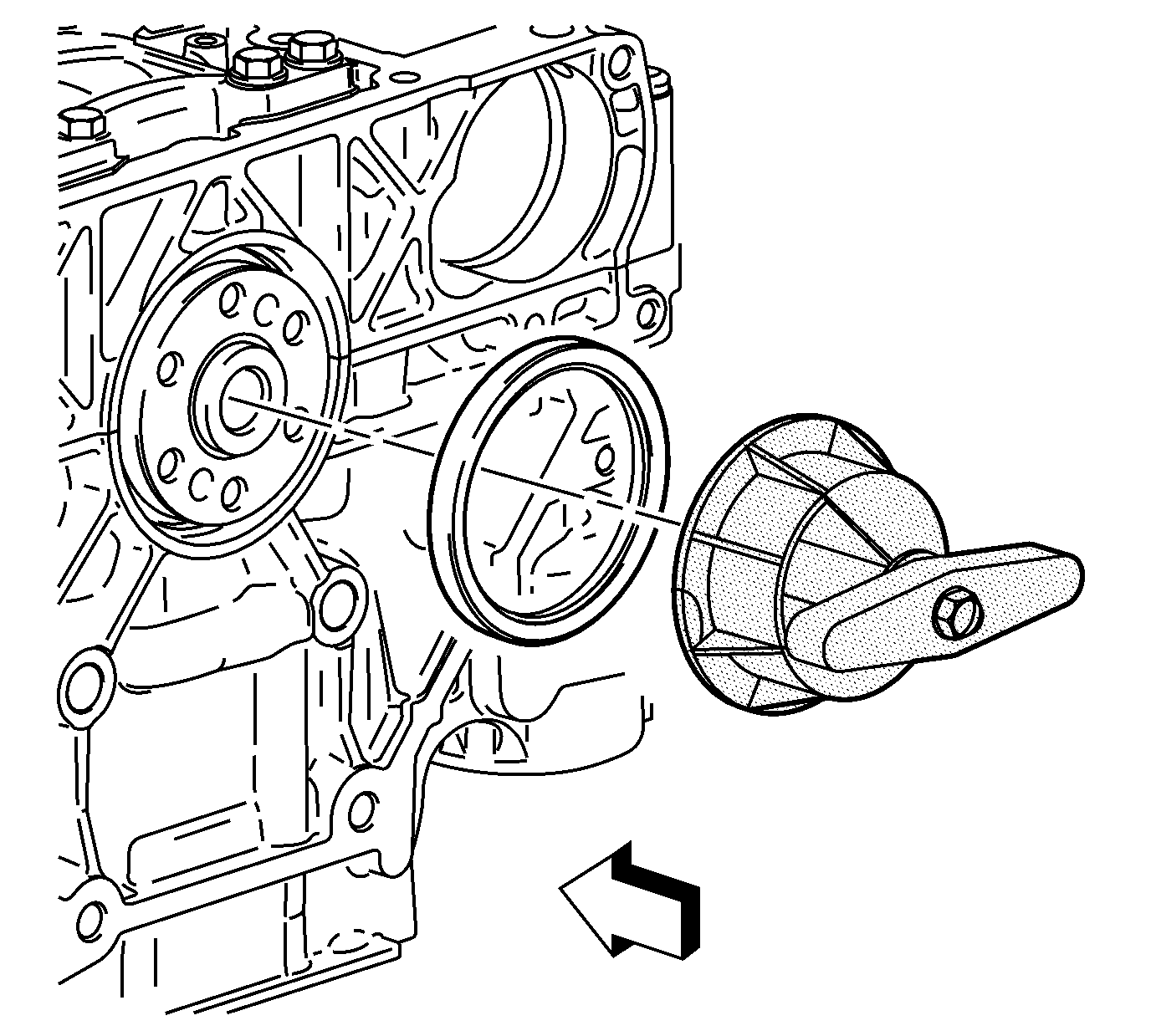

    Fig 1: Installing Crankshaft Rear Oil Seal
    GM412495Courtesy of GENERAL MOTORS CORP.
  1. Remove excess sealer from seal recess.
  2. Lubricate the outside diameter of the new crankshaft seal with clean engine oil.
  3. Using the J 42067  , press the new crankshaft seal into the housing. See Special Tools . The J 42067  also establishes the depth of the seal in the crankshaft seal bore. See Special Tools .
