Crankshaft Balancer Installation

WARNING: This page is about a different variant/trim than selected.

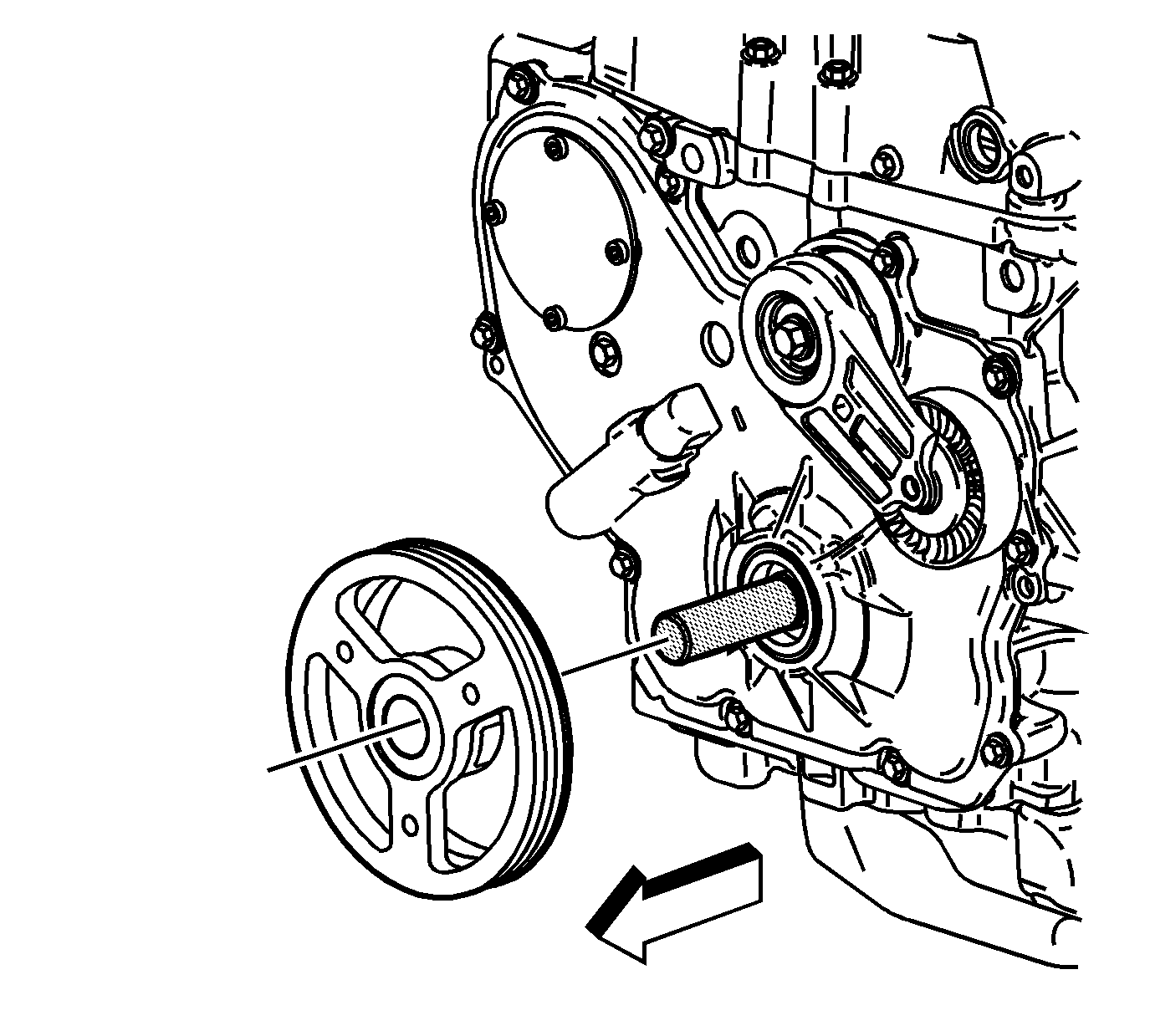

    Fig 1: View Of Crankshaft Balancer
    GM412138Courtesy of GENERAL MOTORS CORP.
    NOTE: Ensure both components are aligned correctly or serious engine damage will occur.
  1. Install the EN-48585  into the end of the crankshaft.
  2. Install the balancer onto the EN-48585  . Use care to properly align the keyway and flats on the balancer with the oil pump drive.
    3. Fig 2: View Of Harmonic Balancer Holder J38122-A
    GM467429Courtesy of GENERAL MOTORS CORP.
  3. Install the J 38122-A  . See Special Tools .
  4. Install the J 38122-A  .
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
    IMPORTANT: Always install a new crankshaft damper retaining bolt and washer.
  5. Install a new retaining bolt and washer. Use the J 38122-A  and a breaker bar in order to prevent the crankshaft from rotating when tightening the bolt. See Special Tools .

    Tighten:  Tighten the bolt to 100 N.m (74 lb ft) plus 125 degrees using the J 45059  . See Special Tools .
