Manual Shift Shaft, Detent Lever, and Park Lock Installation

Tools Required

J 41229  Manual Shaft to Case Pin Installer. See Special Tools .

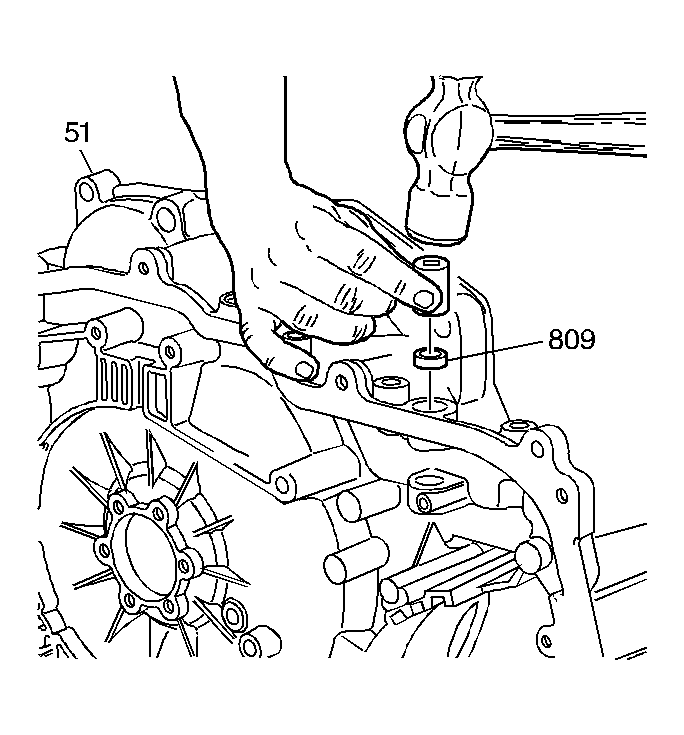

Fig 1: Installing Manual Shaft Seal
Courtesy of GENERAL MOTORS CORP.
1. Install a new manual shaft seal (809) into the case (51). Use a 13 mm socket.

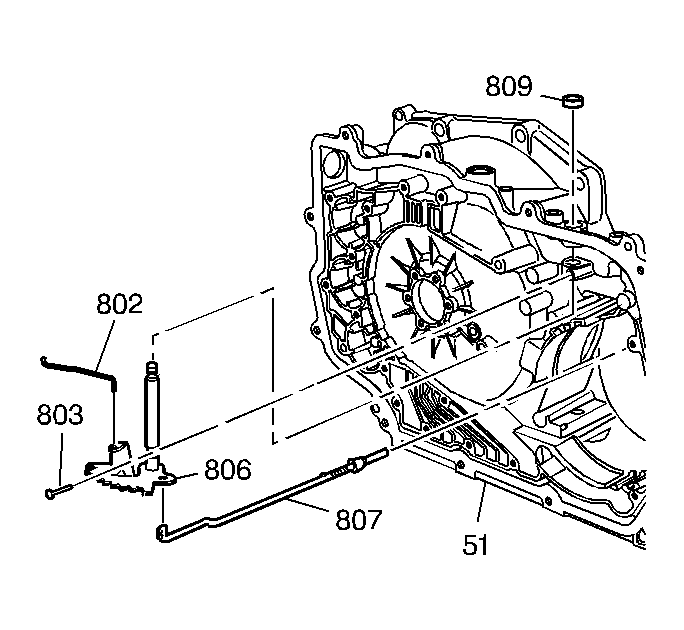

Fig 2: View Of Parking Lock Actuator Assembly & Manual Shaft And Detent Lever Assembly
Courtesy of GENERAL MOTORS CORP.
2. With the manual valve to detent lever link (802) and the parking lock actuator assembly (807) attached, install the manual shaft and detent lever assembly (806) into the case.
3. Ensure that the parking lock actuator rod is correctly positioned into the actuator guide.

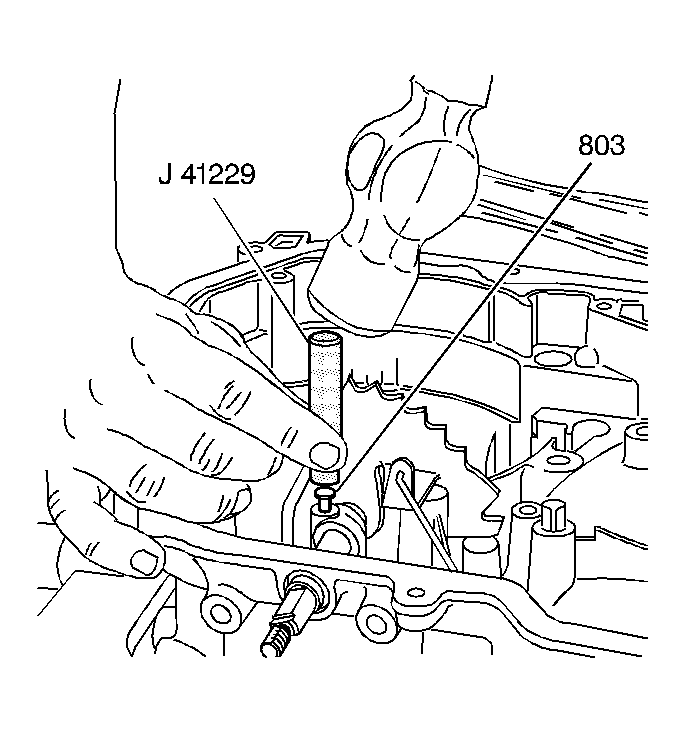

Fig 3: Installing Manual Shaft Pin With J 41229
Courtesy of GENERAL MOTORS CORP.
NOTE: Use J 41229 to install the manual shaft pin at the correct height in order to properly secure the manual shaft. If you install the pin too deep, the case bore may crack.
4. Install the manual shaft pin (803) into the case. Use the J 41229  or equivalent. See Special Tools .
