Special Tools

WARNING: This page is about a different variant/trim than selected.

Special Tools

Illustration	Tool Number/Description

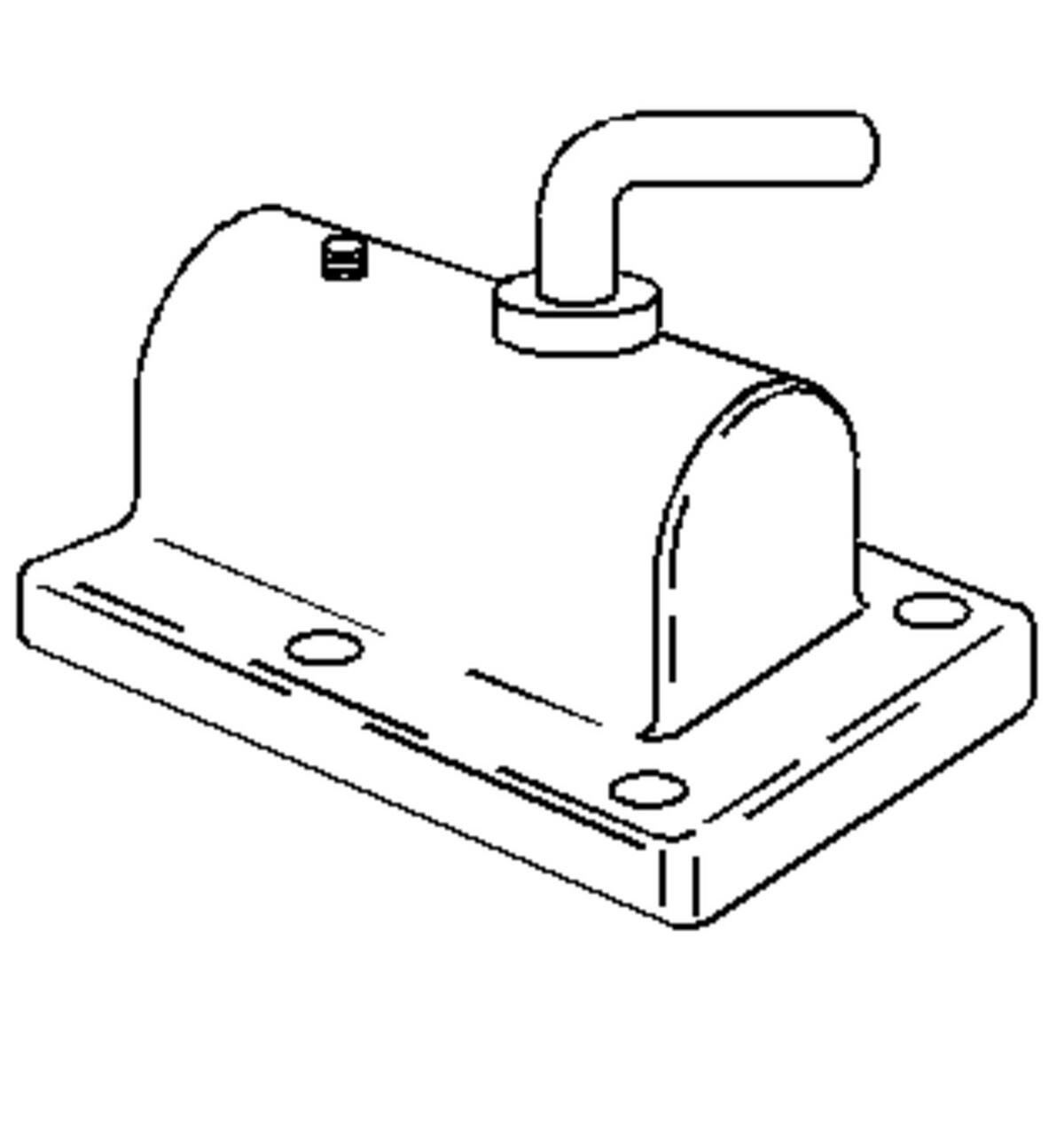

Courtesy of GENERAL MOTORS CORP.	J 3289-20 Transmission Holding Fixture Base
Courtesy of GENERAL MOTORS CORP.	J 4646 Pliers
Courtesy of GENERAL MOTORS CORP.	J 6125-1B Slide Hammer with Adapter
Courtesy of GENERAL MOTORS CORP.	J 8092 Driver Handle
Courtesy of GENERAL MOTORS CORP.	J 21366 Torque Converter Holding Strap
Courtesy of GENERAL MOTORS CORP.	J 23129 Universal Seal Remover
Courtesy of GENERAL MOTORS CORP.	J 23327 Clutch Spring Compressor
Courtesy of GENERAL MOTORS CORP.	J 25031-A Forward and Reverse Clutch Inner Seal Assembly Remover
Courtesy of GENERAL MOTORS CORP.	J 28540-A Torque Converter Seal Installer
Courtesy of GENERAL MOTORS CORP.	J 28585 Snap Ring Screwdriver
Courtesy of GENERAL MOTORS CORP.	J 29569-1 Turbine Shaft Seal Installer
Courtesy of GENERAL MOTORS CORP.	J 29569-2 Turbine Shaft Seal Sizer
Courtesy of GENERAL MOTORS CORP.	J 29829-1 Turbine Shaft Seal Installer
Courtesy of GENERAL MOTORS CORP.	J 29829-2 Turbine Shaft Seal Sizer
Courtesy of GENERAL MOTORS CORP.	J 34673 Input Shaft End Play Gage Block
Courtesy of GENERAL MOTORS CORP.	J 36850 Assembly Lubricant
Courtesy of GENERAL MOTORS CORP.	J 38868 Stub Shaft Sleeve Remover
Courtesy of GENERAL MOTORS CORP.	J 41097-1 Inner Seal Assembly Remover - Ring
Courtesy of GENERAL MOTORS CORP.	J 41097-2 Inner Seal Assembly Remover - Disc
Courtesy of GENERAL MOTORS CORP.	J 41101 Pass Through Connector Remover
Courtesy of GENERAL MOTORS CORP.	J 41102-1A Axle Seal Installer
Courtesy of GENERAL MOTORS CORP.	J 41103 Torque Converter Seal Remover Set
Courtesy of GENERAL MOTORS CORP.	J 41103-1 Torque Converter Seal Puller Legs
Courtesy of GENERAL MOTORS CORP.	J 41103-2 Torque Converter Seal Puller Bridge
Courtesy of GENERAL MOTORS CORP.	J 41103-3 Torque Converter Seal Support Body
Courtesy of GENERAL MOTORS CORP.	J 41227 Output Shaft Sleeve Remover
Courtesy of GENERAL MOTORS CORP.	J 41228 Stub Shaft Sleeve Installer
Courtesy of GENERAL MOTORS CORP.	J 41229 Manual Shaft to Case Pin
Courtesy of GENERAL MOTORS CORP.	J 41230 Transmission Holding Fixture
Courtesy of GENERAL MOTORS CORP.	J 41230-TEM Drill Template
Courtesy of GENERAL MOTORS CORP.	J 41231 Forward Clutch Inner Seal Assembly Installer
Courtesy of GENERAL MOTORS CORP.	J 41232 Direct Reverse, Second Clutch Return Spring Compressor Adapter
Courtesy of GENERAL MOTORS CORP.	J 41233 Reverse Clutch Inner Seal Installer
Courtesy of GENERAL MOTORS CORP.	J 41234-1 Input Shaft Seal Installer Pusher
Courtesy of GENERAL MOTORS CORP.	J 41234-2 Input Shaft Seal Installer Protector
Courtesy of GENERAL MOTORS CORP.	J 41234-3 Input Shaft Seal Installer Sizer
Courtesy of GENERAL MOTORS CORP.	J 41235 Second Roller Clutch Installer
Courtesy of GENERAL MOTORS CORP.	J 41236 Coast Clutch Return Spring Compressor Adapter
Courtesy of GENERAL MOTORS CORP.	J 41239-1A Cooler Line Seal Installer
Courtesy of GENERAL MOTORS CORP.	J 41239-10 Cooler Line Seal Remover
Courtesy of GENERAL MOTORS CORP.	J 45201 Cooler Line Seal Remover
Courtesy of GENERAL MOTORS CORP.	J 45398 Forward Clutch Inner Seal Puller
