Trim Plate Replacement - Console

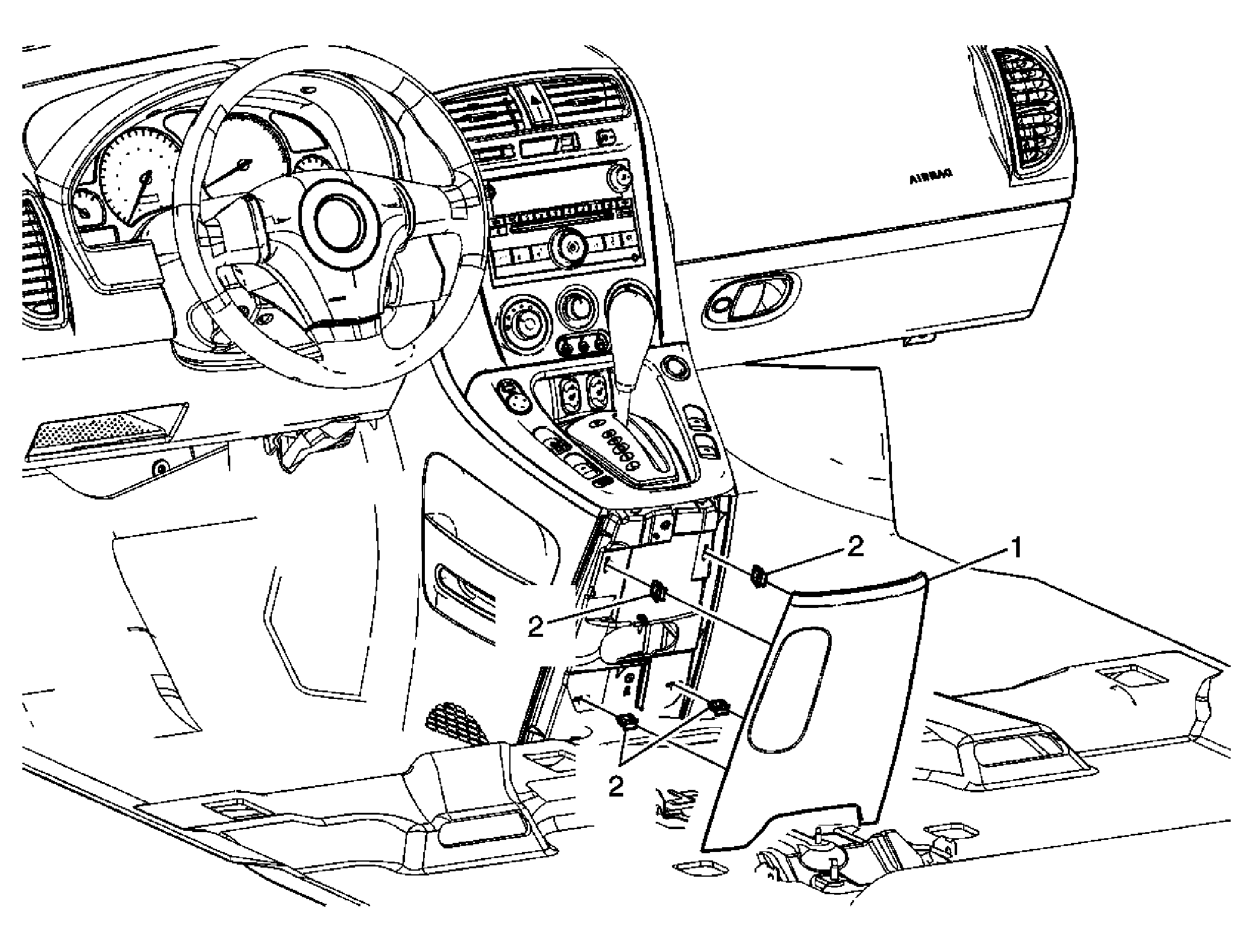

Fig 1: Trim Plate Replacement And Components
GM1641231Courtesy of GENERAL MOTORS CORP.
Trim Plate Replacement - Console

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the front floor console. Refer to Console Replacement - Front Floor .
1 Console Trim Panel Assembly - Rear
2 Retainer Clips (Qty: 4)
