Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Engine Mount, Bracket & Nuts
    GM1674896Courtesy of GENERAL MOTORS CORP.
  1. Install the engine mount to the bracket.
    2. NOTE: Refer to Fastener Notice .
  2. Install the engine mount bracket to engine mount nuts.

    Tighten:  Tighten the nuts to 50 N.m (37 lb ft).

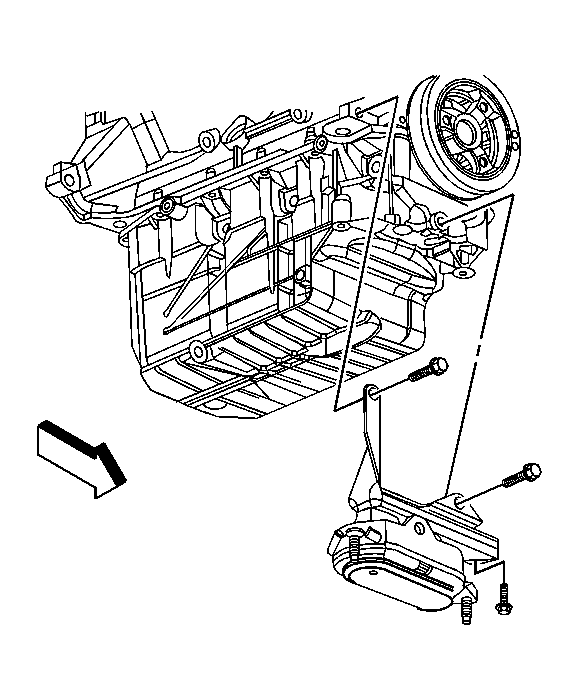

    3. Fig 2: View Of Engine Mount Bracket To Oil Pan Bolts
    GM1674895Courtesy of GENERAL MOTORS CORP.
  3. Install the engine mount and bracket.
  4. Install the engine mount bracket to the engine block bolt.
  5. Install the engine mount bracket to oil pan bolt.

    Tighten:  Tighten the bolts to 58 N.m (43 lb ft).

  6. Using the utility stand, lower the engine.

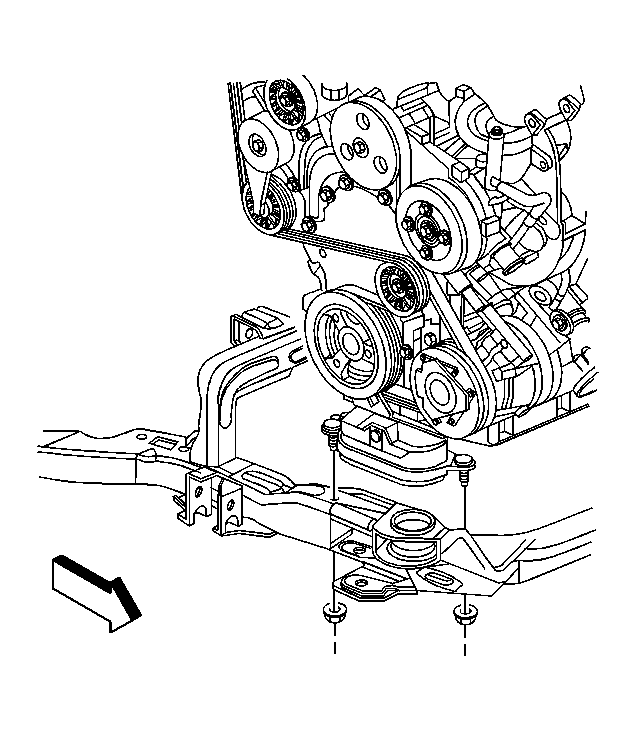

    7. Fig 3: Removing/Installing Engine Mount-To-Support Frame Bolts
    GM1674892Courtesy of GENERAL MOTORS CORP.
  7. Install the engine mount to frame nuts.

    Tighten:  Tighten the nuts to 47 N.m (35 lb ft).

  8. Install the right engine splash shield. Refer to Engine Splash Shield Replacement .
  9. Install the right front wheel and tire. Refer to Tire and Wheel Removal and Installation .
  10. Install the catalytic converter. Refer to Catalytic Converter Replacement .
  11. Lower the vehicle.
  12. Install the engine mount struts. Refer to Engine Mount Strut Replacement - Left Side and Engine Mount Strut Replacement - Right Side .
  13. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
