Engine Splash Shield Replacement

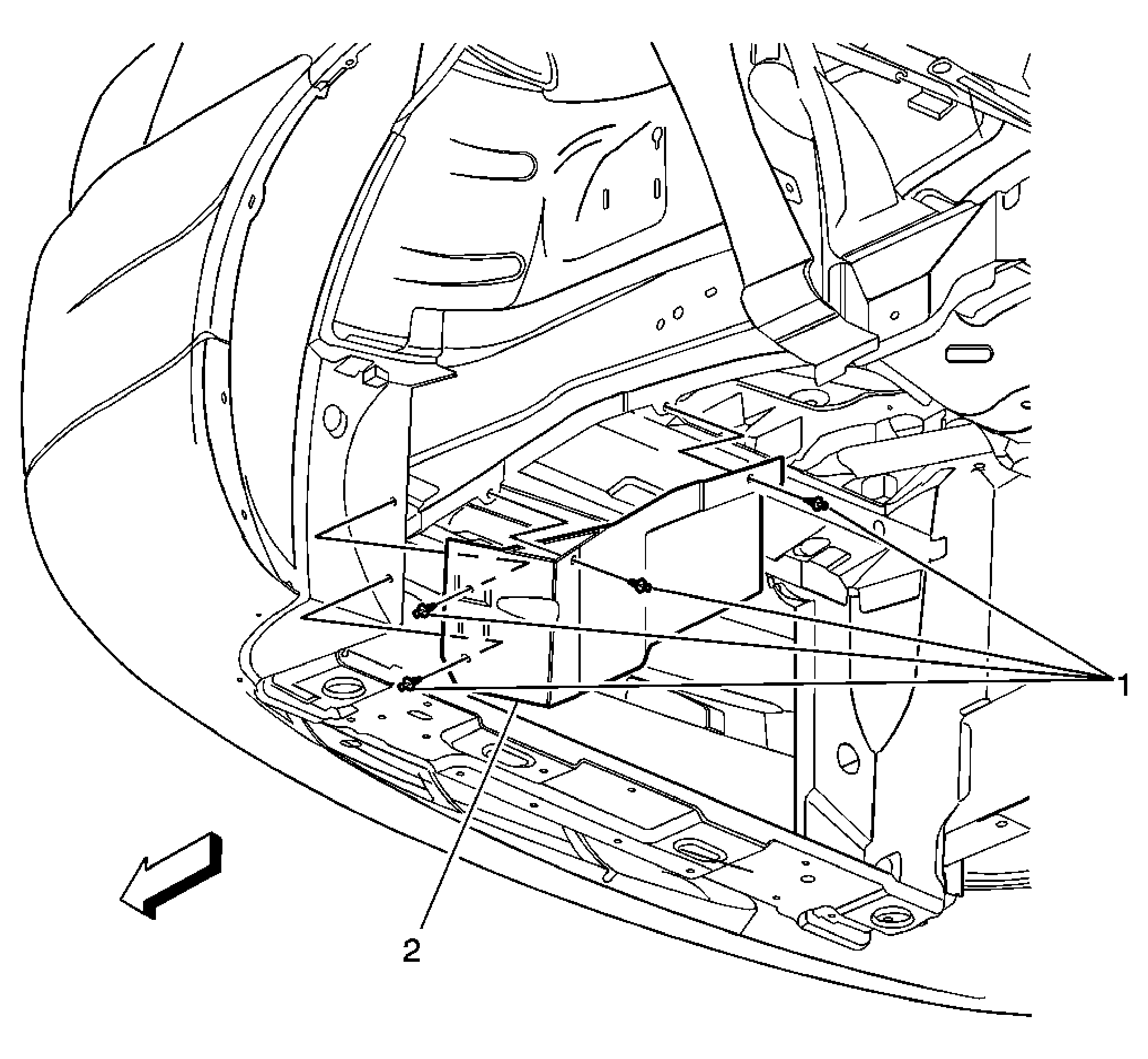

Fig 1: Replacing Engine Splash Shield
GM1509828Courtesy of GENERAL MOTORS CORP.
Engine Splash Shield Replacement

Callout Component Name
1 Engine Splash Shield Retainer (Qty: 4)
2 Engine Splash Shield Assembly
