Front End Sheet Metal Diagonal Brace Replacement
Front End Sheet Metal Diagonal Brace Replacement

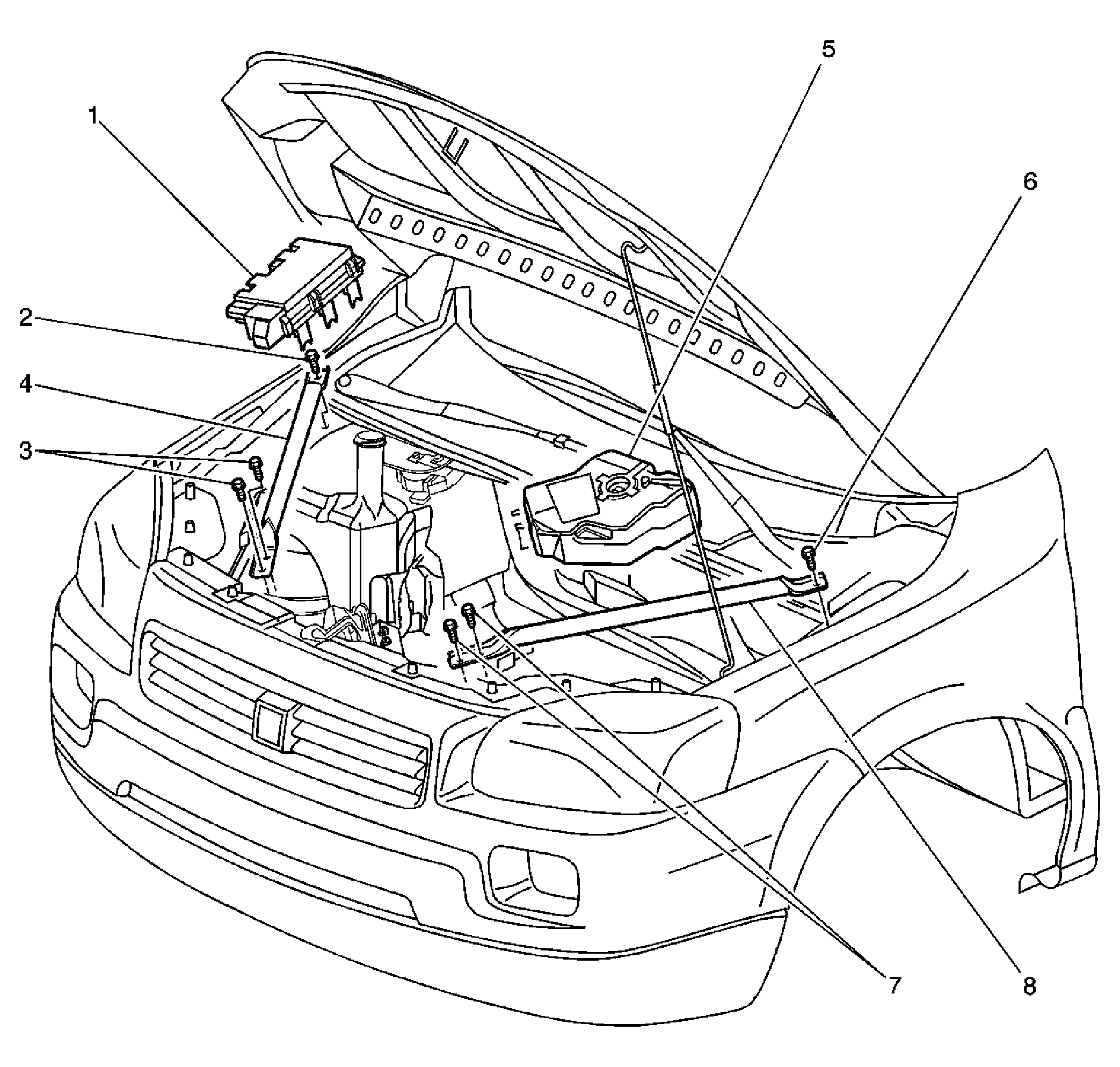

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| Front End Sheet Metal Right Diagonal Brace Replacement | |
| 1 | Block Assembly, Accessory Wiring Junction Refer to Underhood Electrical Center or Junction Block Replacement . |
| 2 | Bolt, Front End Sheet Metal Diagonal Brace Tighten: 47 N.m (35 lb ft) |
| 3 | Bolt, Front End Sheet Metal Diagonal Brace Tighten: 14 N.m (124 lb in) |
| 4 | Brace, Front End Sheet Metal Diagonal |
| Front End Sheet Metal Left Diagonal Brace Replacement | |
| 5 | Reservoir Assembly, Coolant Recovery Refer to Coolant Recovery Reservoir Replacement . |
| 6 | Bolt, Front End Sheet Metal Diagonal Brace Tighten: 47 N.m (35 lb ft) |
| 7 | Bolt, Front End Sheet Metal Diagonal Brace Tighten: 14 N.m (124 lb in) |
| 8 | Brace, Front End Sheet Metal Diagonal |
